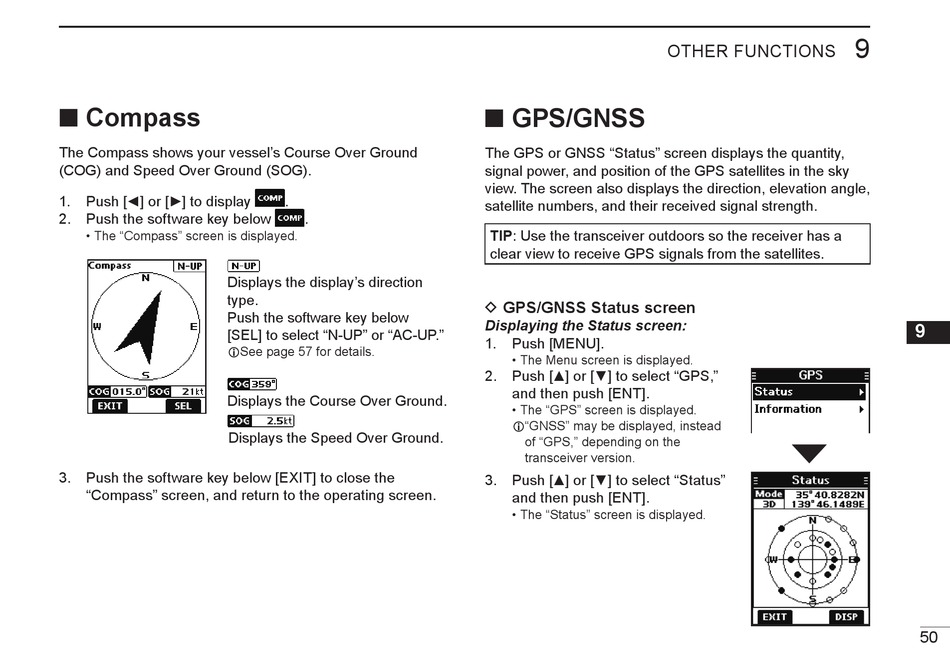

■ Compass

The Compass shows your vessel's Course Over Ground
(COG) and Speed Over Ground (SOG).
1. Push[◄]or[►]todisplay
2. Push the software key below
• The "Compass" screen is displayed.
Displays the display's direction
type.
Push the software key below
[SEL]toselect"N-UP"or"AC-UP."
LSee page 57 for details.
Displays the Course Over Ground.
Displays the Speed Over Ground.
3.  P ushthesoftwarekeybelow[EXIT]toclosethe
"Compass" screen, and return to the operating screen.
.
.

■ GPS/GNSS

The GPS or GNSS "Status" screen displays the quantity,
signal power, and position of the GPS satellites in the sky
view. The screen also displays the direction, elevation angle,
satellite numbers, and their received signal strength.
TIP: Use the transceiver outdoors so the receiver has a
clear view to receive GPS signals from the satellites.
D GPS/GNSS Status screen
Displaying the Status screen:
1. Push[MENU].
• The Menu screen is displayed.
2.  P ush[▲]or[▼]toselect"GPS,"
andthenpush[ENT].
• The "GPS" screen is displayed.
L "GNSS" may be displayed, instead
of "GPS," depending on the
transceiver version.
3.  P ush[▲]or[▼]toselect"Status"
andthenpush[ENT].
• The "Status" screen is displayed.
