11
BATTERY CHARGING

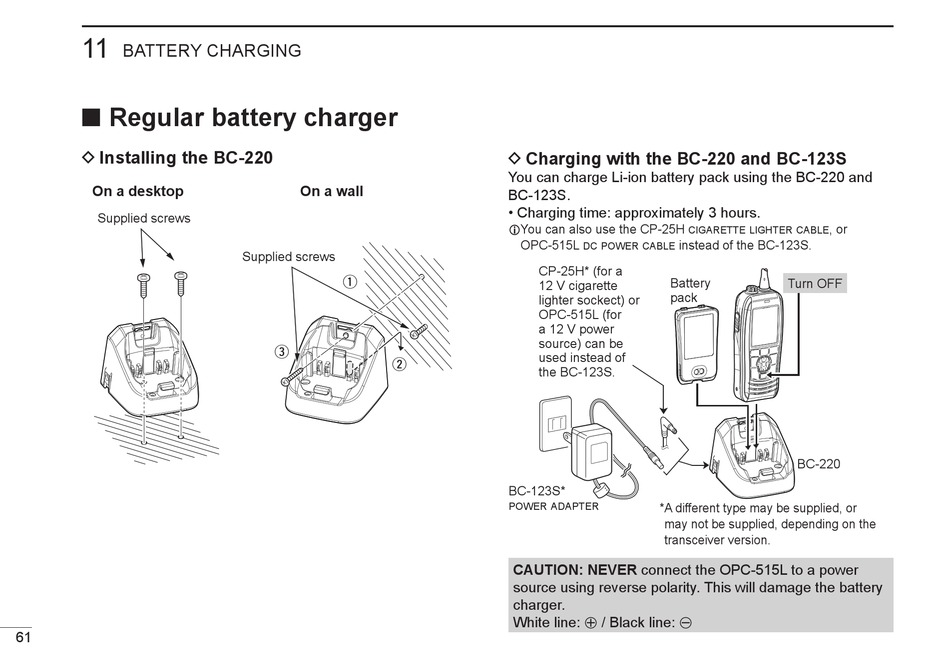

■ Regular battery charger

D Installing the BC-220
On a desktop
Supplied screws
61
On a wall
Supplied screws
q
e
w
D Charging with the BC-220 and BC-123S
You can charge Li-ion battery pack using the BC-220 and
BC-123S.
• Charging time: approximately 3 hours.
L You can also use the CP-25H
OPC-515L instead of the BC-123S.
dc power cable
CP-25H* (for a
Battery
12 V cigarette
pack
lighter sockect) or
OPC-515L (for
a 12 V power
source) can be
used instead of
the BC-123S.
BC-123S*
power adapter
* A different type may be supplied, or
may not be supplied, depending on the
transceiver version.
CAUTION: NEVER connect the OPC-515L to a power
source using reverse polarity. This will damage the battery
charger.
White line: + / Black line: _
, or
cigarette lighter cable
Turn OFF
BC-220
