Installation

System Overview

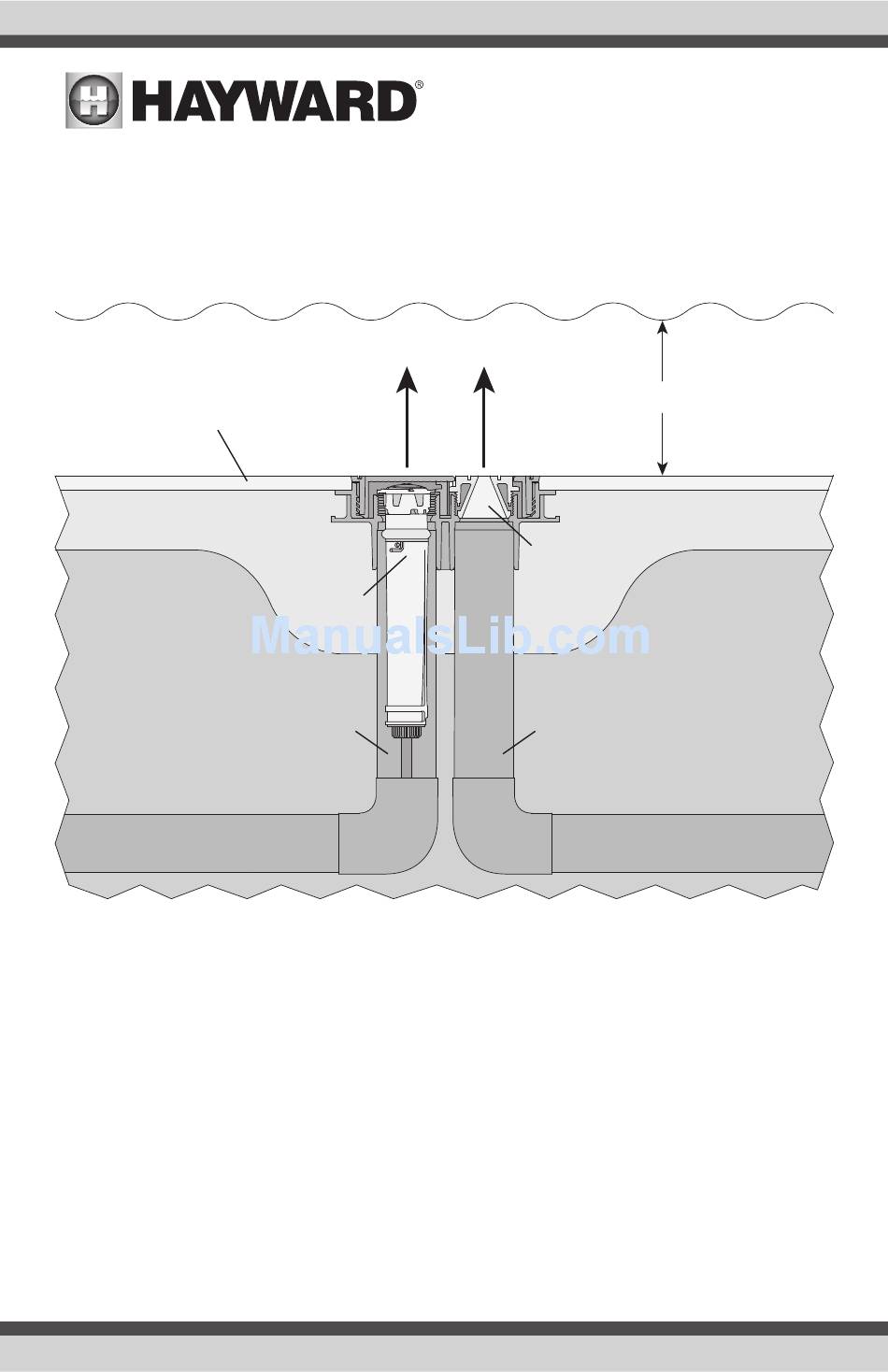

The diagram below shows an overview of a fully installed ColorLogic Bubbler system.
2-12" **
Plaster
LIGHT FLOW
Gunite
Adjustable Nozzle
(1/2" or 3/4")
Accent Light
Dirt/Gravel
1.5" SCHED 40 1.5" SCHED 40
Electrical Conduit PVC Pipe
From 12V Input From Pool or Spa Water Supply +
Junction Box optional in-line flow control valve
**Hayward recommends mounting the ColorLogic Bubbler no more than 12" below the surface of
®
the water when installed as a bubbler/fountain for the best combination of water and light.
Determine the location for the ColorLogic Bubbler. Rough-in plumbing pipe and electrical conduit
®
by plumbing the water line to the desired pumping system and the electrical line to the Accent
Light junction box as shown above. It is recommended that you use 1.5" SCHED 40 Electrical Con-
duit for the electrical line. Use the two provided cardboard pipe spacers to ensure proper distance
from the plumbing and electrical pipes (as shown on page 7). Keep the cardboard pipe spacers on
the pipes to make installation of the housing easier later on. If you have lost or discarded the pipe
spacers, note that the distance between the centers of each pipe should be exactly 2.5".
NOTE: If finite control will be desired, be sure to install an in-line flow control valve to adjust the
height and flow of the water stream from the ColorLogic Bubbler.
®
5
