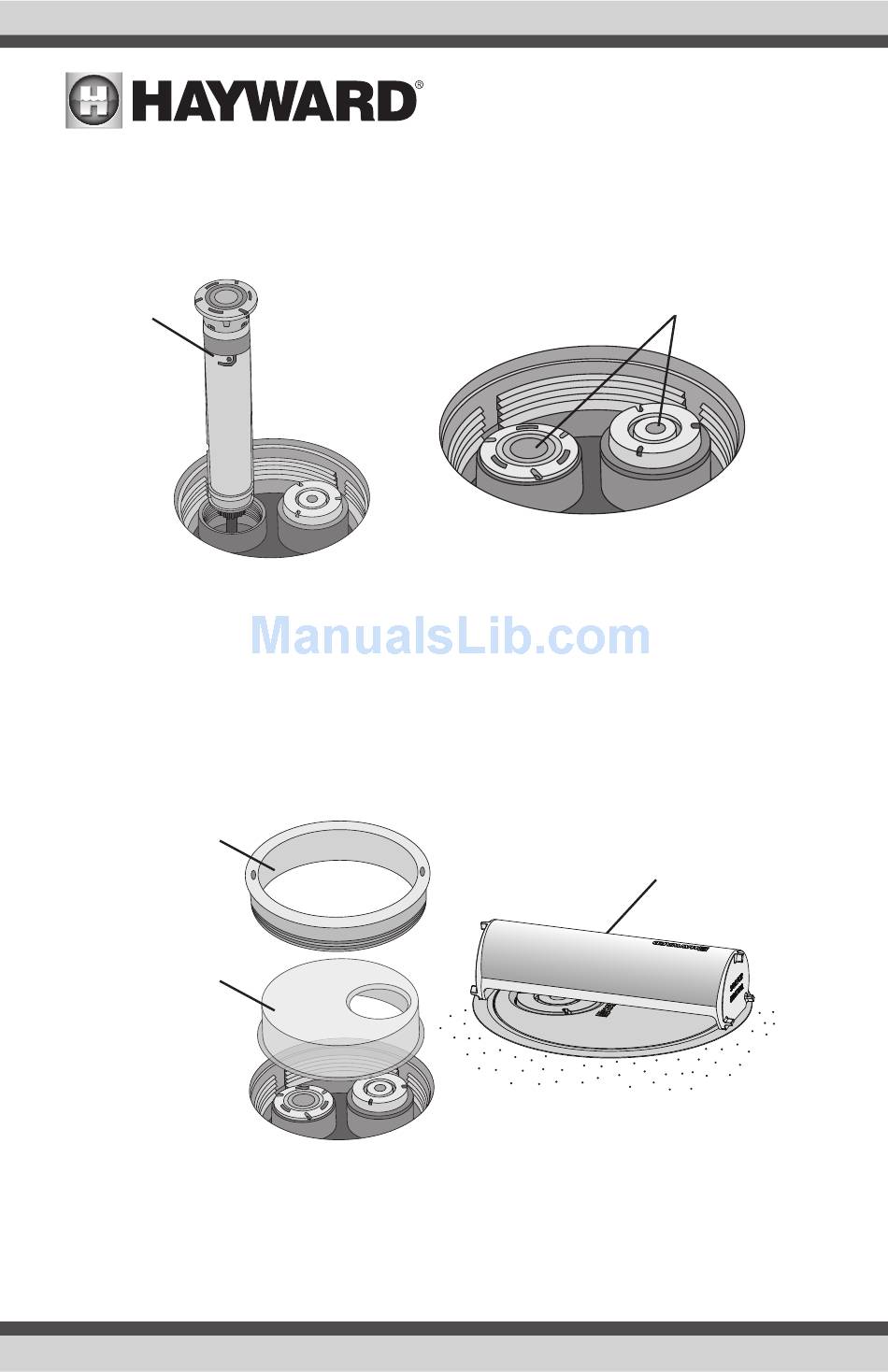

14. If lighting will be used in the system, install the accent light into the lighting port by feed-
ing the cord through the electrical conduit to the 12V input junction box. Wire the light as
instructed in the supplied owner's manual and fasten it to the housing using the tool provided
with the Accent Light. See images below for reference.
®
ColorLogic
Accent Light
15. If lighting will not be used in the system, remove the following parts from the box: ColorLogic
Bubbler nozzle threaded plug and an o-ring. Install the plug with the o-ring into the lighting
port. Tighten the plug using the provided ColorLogic
seen in step 13).
16. Remove the following parts from the box: the lens and the retaining ring. Install the lens,
making sure that the open hole is over the nozzle. Thread on the retaining ring using the
provided ColorLogic
Retaining Ring
Lens
11
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Bubbler tool. See images below for reference.
®
Light and Nozzle both
Bubbler tool (In a similar fashion as
®
Tighten Retaining Ring using
®
ColorLogic Bubbler Tool
®
ColorLogic Accent
tightened in place
®
