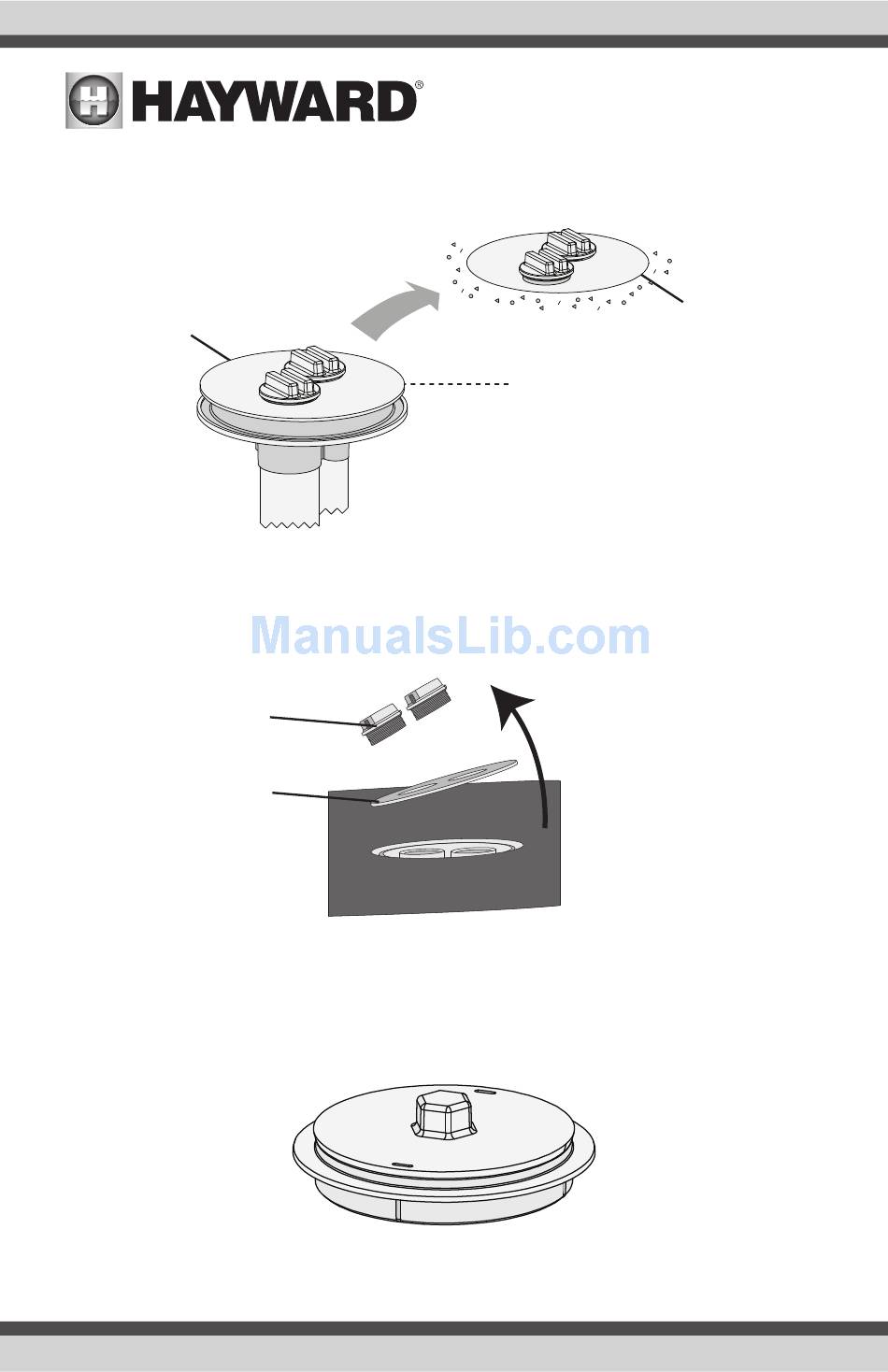

6. Apply gunite and fill behind the housing up to the level shown in the System Overview dia-
gram on page 5 and below.
Housing Assembly
glued to pipes
7. Wait for the gunite to cure. Once cured, remove the 2 threaded plugs and the gunite shield
from the housing assembly. Discard the gunite shield but save the plugs in case of future
maintenance.
Threaded Plugs
Gunite Shield
8. Remove the following parts from the box: the plaster ring and the plaster shield. These parts
come assembled together as shown below. DO NOT DISASSEMBLE. IMPORTANT: No
o-ring is to be installed with the plaster shield; this is for winterization purposes only
(See page 12 for winterization instructions).
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Gunite up to this line
After Gunite applied
