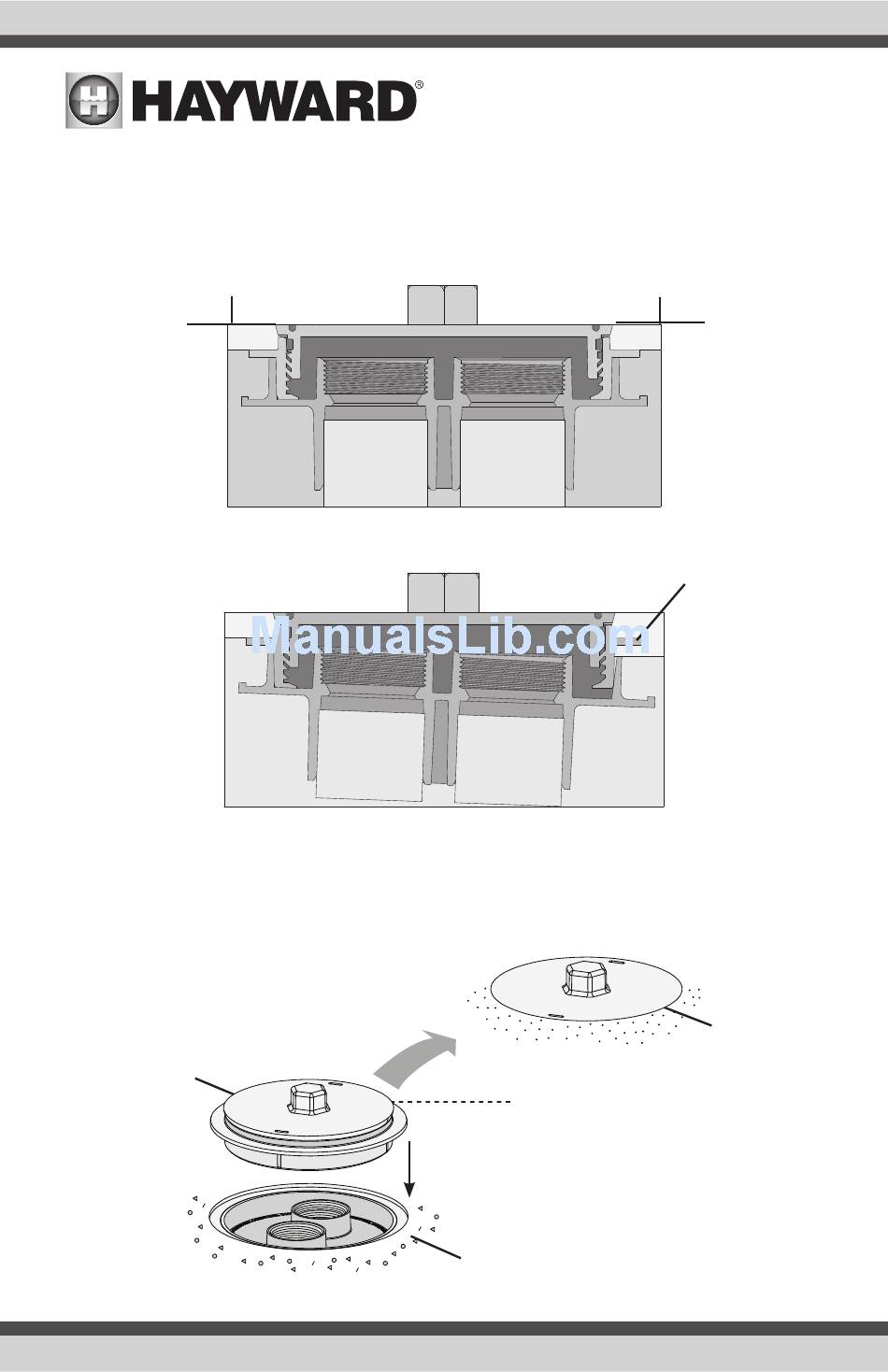

9. Install the plaster shield assembly onto the housing and verify that the surface of the plaster
shield is level with the finished surface. If the housing was not installed level in step 4, use
the plaster ring to achieve a level finished surface by pulling up on the edge of the plaster ring
until level. See images below for reference.
Finished Surface
10. Apply and smooth out plaster around the edge of the plaster shield as seen below. The
surface of the plaster should be even with the finished surface level.
Plaster Shield and
Plaster Ring
9
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Flush Housing Installation
Housing Installed at a 2° angle
Finished Surface
Plaster up to this line
Gunite Surface
Plaster
Gunite
Pull up on Plaster Ring
To achieve level finished
surface
Plaster
Gunite
After Plaster
Applied
