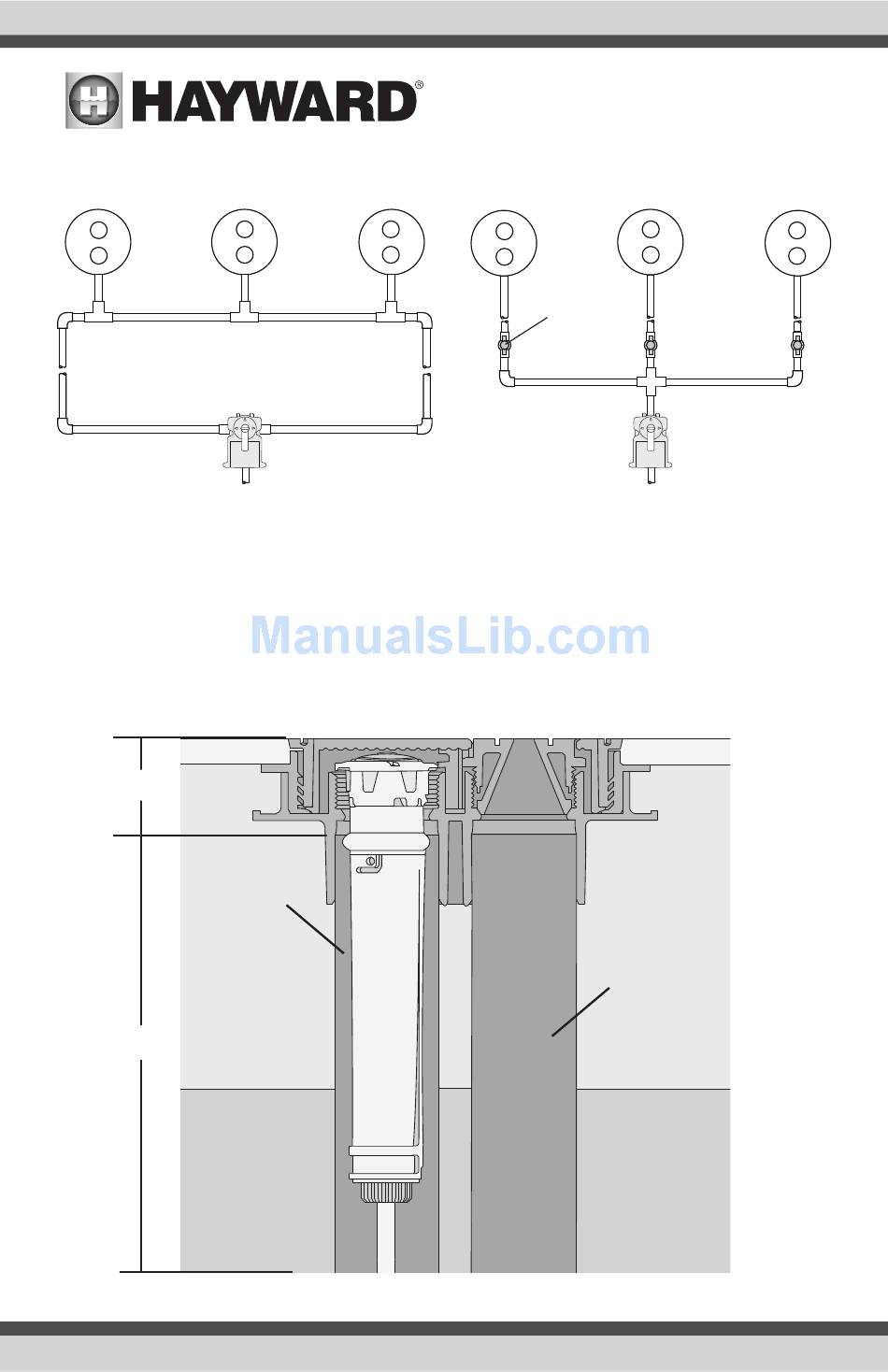

Use the looped plumbing scheme below if multiple
bubblers will be installed at the same depth.
From Pool or Spa Water Supply
Installation Steps
Follow the steps below to ensure proper installation of the ColorLogic Bubbler.
1. Cut the two pieces of 1.5" pipe to no less than 2" beneath the surface level to ensure proper
final installation height. The pipes should also be at least 14" in height to accomodate for the
length of the accent light that will be used (if lighting is desired). If lighting will not be used, it
is recommended that you still leave enough room in case a future upgrade is desired. See the
image below for reference.
2"
1.5" SCHED
40 Electrical
Conduit
14"
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Use the plumbing scheme below with individual
valves if bubblers will be installed at different depths.
Valve
From Pool or Spa Water Supply
1.5" SCHED
40 PVC Pipe
Plaster
Gunite
Dirt/Gravel
