092619 RevA beta draft1
ColorLogic Bubbler
®
Owner's Manual
\
Contents
Before You Begin......................................2
Installation..............................................5
Operation..............................................12
Winterization.........................................12
Warranty................................................18
WFBCUS1100
WFB100
Hayward Pool Products
620 Division Street, Elizabeth NJ 07207
Phone (908)-355-7995
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Advertisement
Related Manuals for Hayward ColorLogic WFBCUS1100
Summary of Contents for Hayward ColorLogic WFBCUS1100
-
Page 1: Table Of Contents
092619 RevA beta draft1 ColorLogic Bubbler ® Owner’s Manual Contents Before You Begin........2 Installation..........5 Operation..........12 Winterization.........12 Warranty..........18 WFBCUS1100 WFB100 Hayward Pool Products 620 Division Street, Elizabeth NJ 07207 Phone (908)-355-7995 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 2: Important Safety Instructions
WARNING – Electrical shock hazard. Damage to wiring can cause severe injury or death. To reduce the risk of electric shock replace damaged wiring immediately. Locate conduit to prevent abuse from lawn mowers, hedge trimmers and other equipment. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 3: Before You Begin

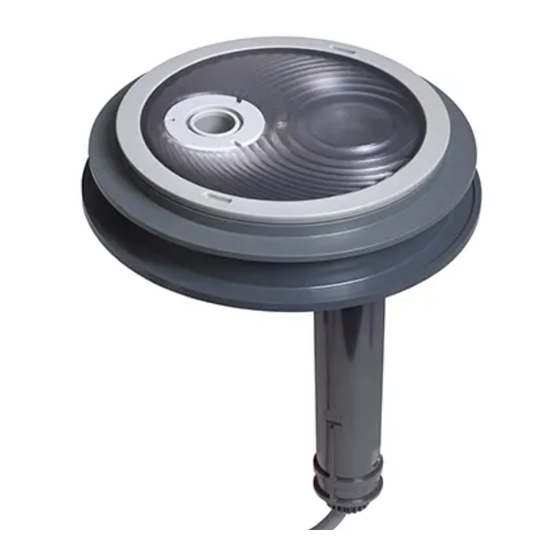

Before You Begin The Hayward WFB100 ColorLogic Bubbler has been designed for use with all Hayward Accent ® Lights and provides lighted water for small fountains and other water effects. The ColorLogic ® Bubbler must be installed as specified by these instructions. Please follow ALL of the instructions enclosed with this unit. - Page 4 ColorLogic Bubbler Nozzle, 1/2” G1-046396 ColorLogic Bubbler Nozzle, 3/4” G1-046394 ColorLogic Bubbler Nozzle Nut G1-046403 ColorLogic Bubbler Nozzle Threaded Plug SP0710XZ3 Plaster Shield O-Ring (For Winterization Only) O-Ring For Nozzle and Plug SP1022CZ2 G1-046401 ColorLogic Bubbler Tool USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 5 3/4”) Accent Light (included with 6. Plaster Ring** WFBCUS1100) 2. Housing 1. Cardboard Spacer 1.5” SCHED 1.5” SCHED 40 40 Electrical PVC Pipe (Not Conduit (Not Included) Included) **Plaster Ring only adjustable during Installation. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 6: Installation
2.5”. NOTE: If finite control will be desired, be sure to install an in-line flow control valve to adjust the height and flow of the water stream from the ColorLogic Bubbler. ® USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 7 See the image below for reference. Plaster 2” Gunite 1.5” SCHED 40 Electrical Conduit 1.5” SCHED 40 PVC Pipe 14” Dirt/Gravel USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 8 Pipe Flush With Housing Backfill the pit beneath the housing with dirt and/or gravel to about halfway up the pipes. The System Overview diagram on page 5 shows the approximate level that the dirt/gravel should be at. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 9 Remove the following parts from the box: the plaster ring and the plaster shield. These parts come assembled together as shown below. DO NOT DISASSEMBLE. IMPORTANT: No o-ring is to be installed with the plaster shield; this is for winterization purposes only (See page 12 for winterization instructions). USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 10 10. Apply and smooth out plaster around the edge of the plaster shield as seen below. The surface of the plaster should be even with the finished surface level. After Plaster Applied Plaster Shield and Plaster Ring Plaster up to this line Gunite Surface USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 11 Install the nozzle, nozzle nut, and o-ring for the desired effect in the water port and fasten it in place using the provided ColorLogic Bubbler tool. See images below for refer- ® ence. Nozzle Nut ® ColorLogic Bubbler Tool O-ring Nozzle (1/2” or 3/4”) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 12 Thread on the retaining ring using the provided ColorLogic Bubbler tool. See images below for reference. ® Retaining Ring Tighten Retaining Ring using ® ColorLogic Bubbler Tool Lens USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 13: Operation
O-ring. If these parts were not saved from installation, a replacement winterization kit is available (GLX-BKT-XX) for order. See page 13 for details. Plaster Shield Installed with o-ring for winterization if water will be below Bubbler level. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 14 ColorLogic Bubbler NozzleThreaded Plug and an O-Ring are screwed into the lighting port. IMPORTANT: Do not use glue within the ColorLogic Bubbler ® REPLACEMENT ORDER: In the event the plaster shield is misplaced, please Visit www. hayward.com. Search for GLX-BKT. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 15 Leave the Accent Light in place OR if no light is being used, make sure that this port is plugged with the ColorLogic Bubbler Nozzle 1.5” Threaded to Threaded Plug and an O-Ring. 1.5” Slip Adapter USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 16 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 17: Housing
Before starting system pump, fully open filter manual air relief valve. Do not close filter manual air relief valve until a steady stream of water (not air or air and water) is discharged. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 18 A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 19: Warranty
(3) years. Hayward also warrants its Aqua Trol chlorination products to be free of defects in materials and workmanship, under normal use and service for a period of one (1) year. These warran- ties are applicable from the initial date of purchase on private residential swimming pools in the US and Canada. - Page 20 ® trademark of Hayward Industries, Inc. © 2016 Hayward Industries, Inc. All other trademarks not owned by Hayward are the property of their respective owners. Hayward is not in any way affiliated with or endorsed by those third parties. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
