11. Wait for the plaster to cure. Once cured, remove the plaster shield using the ColorLogic
Bubbler Tool as shown below. Verify that the slots on the plaster shield are free of plaster
and/or debris before inserting the tool. If you do not have the ColorLogic Bubbler Tool on
hand, use a 1-1/4" wrench to remove the plaster shield. Note that the plaster shield may
require an initial tap to loosen. Save the plaster shield for winterization, if needed (See page
12 for winterization instructions).
12. Flush the water line to remove any foreign material from construction that may be inside the
system.

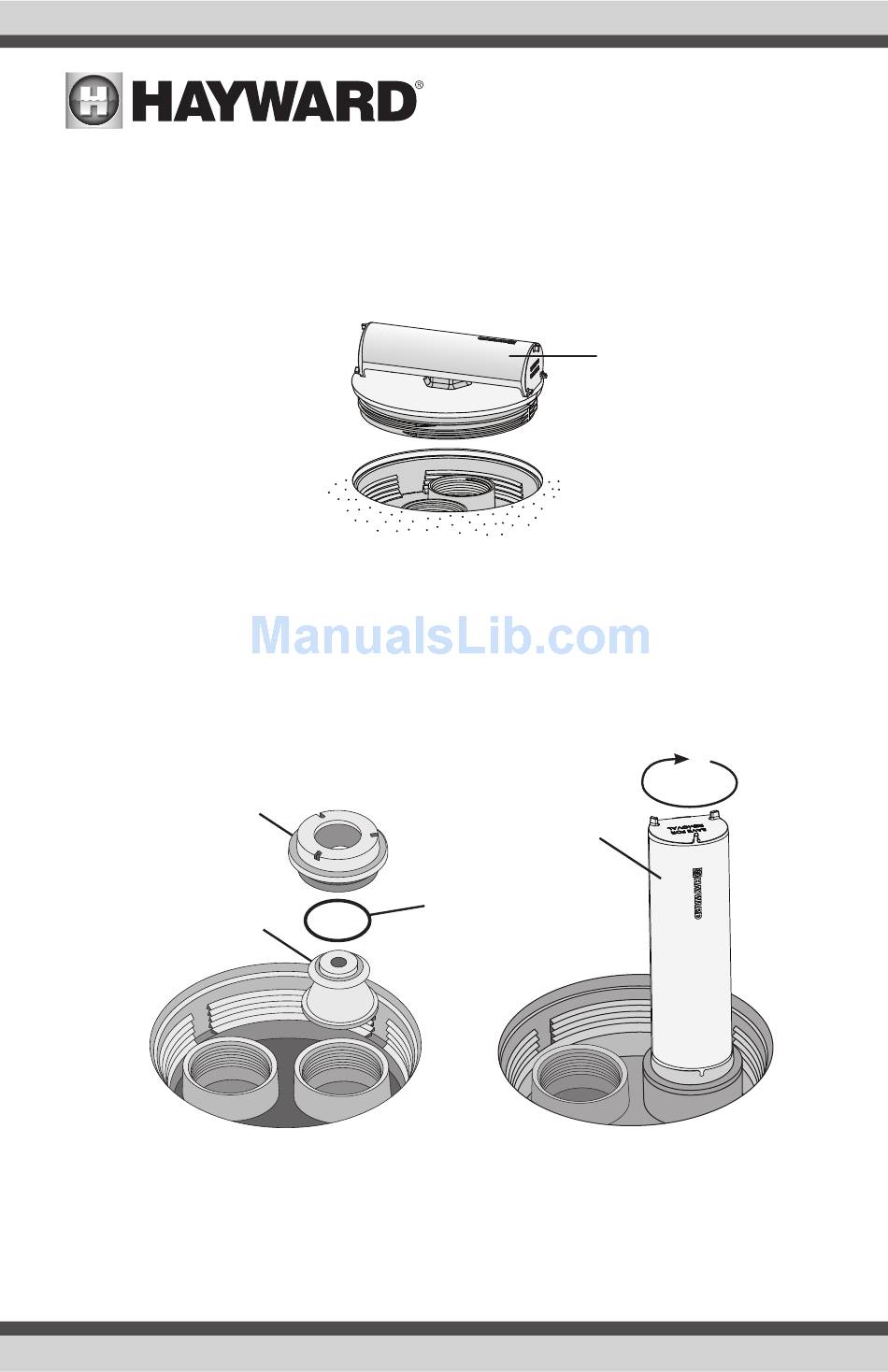

13. Remove the following parts from the box: Desired nozzle (1/2" or 3/4"), nozzle nut, and
o-ring. Install the nozzle, nozzle nut, and o-ring for the desired effect in the water port and
fasten it in place using the provided ColorLogic
ence.
Nozzle Nut
Nozzle (1/2" or 3/4")
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Bubbler tool. See images below for refer-
®
®
ColorLogic
Bubbler Tool
O-ring
®
ColorLogic Bubbler Tool
(Twist Counterclockwise to
Loosen Plaster Shield)
®
