5. PRESET +/–
Press to select the preset stations.
6. FM/AM
Press to select the band you want.
7.
INPUT +/–
Press to select the input source.
8. INPUT MODE
Press to select the input mode.
9. SP SETUP
Displays the [Speaker Setup] menu.
10. TEST (PICTURE, TONE)
Press to output the test picture or test tone.
11. SOUND FIELD (2CH/DIRECT, A.F.D., MOVIE, MULTI ST.)
Selects the sound field you want.
12.
TUNING +/–
Press to select a station.
13. + (*)/-
Adjust the volume level.
14.
Turns off the sound temporarily. Press the button again to restore the sound.
* The + button has tactile dot. Use the tactile dot as a reference when operating the receiver.
Note
The above explanations are intended to serve as examples.
[8] Preparation 1. Installing speakers

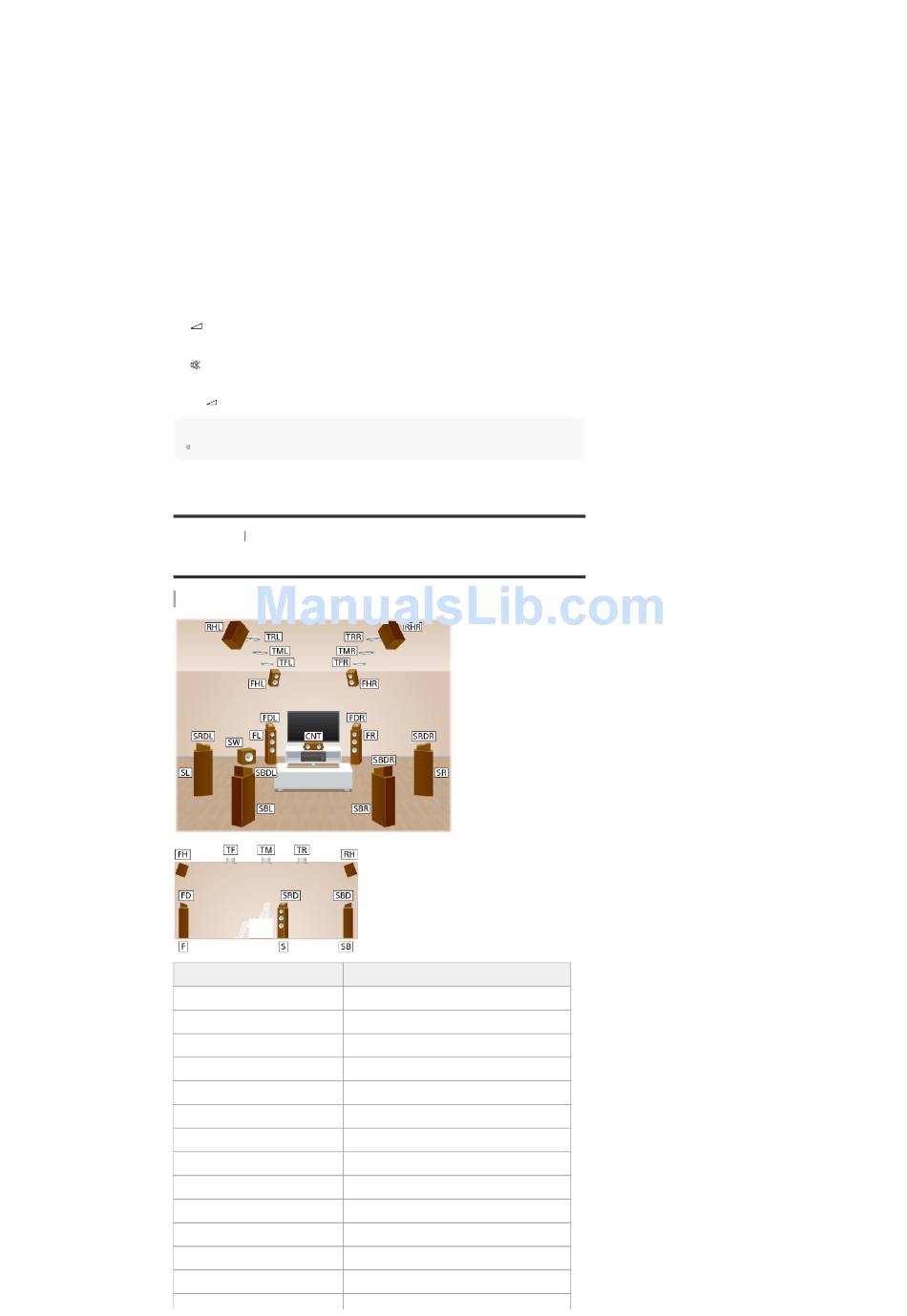

Locations and names of speakers
Location of each speaker
Abbreviations used in illustrations
FL
FR
CNT
SL
SR
SBL
SBR
SB
SW
TFL
TFR
TML
TMR
Speaker name
Front left speaker
Front right speaker
Center speaker
Surround left speaker
Surround right speaker
Surround back left speaker
Surround back right speaker
Surround back speaker
Subwoofer
Top front left speaker
Top front right speaker
Top middle left speaker
Top middle right speaker
