Creating Custom Keypad Inserts

You can customize your keypad with keypad inserts. Refer to Figure 2-7 and
Figure 2-8 for insert dimensions and installation for the 3612KPM(T). Refer to
Figure 2-9 and Figure 2-10 for insert dimensions and installation for the
3615KPM(T).

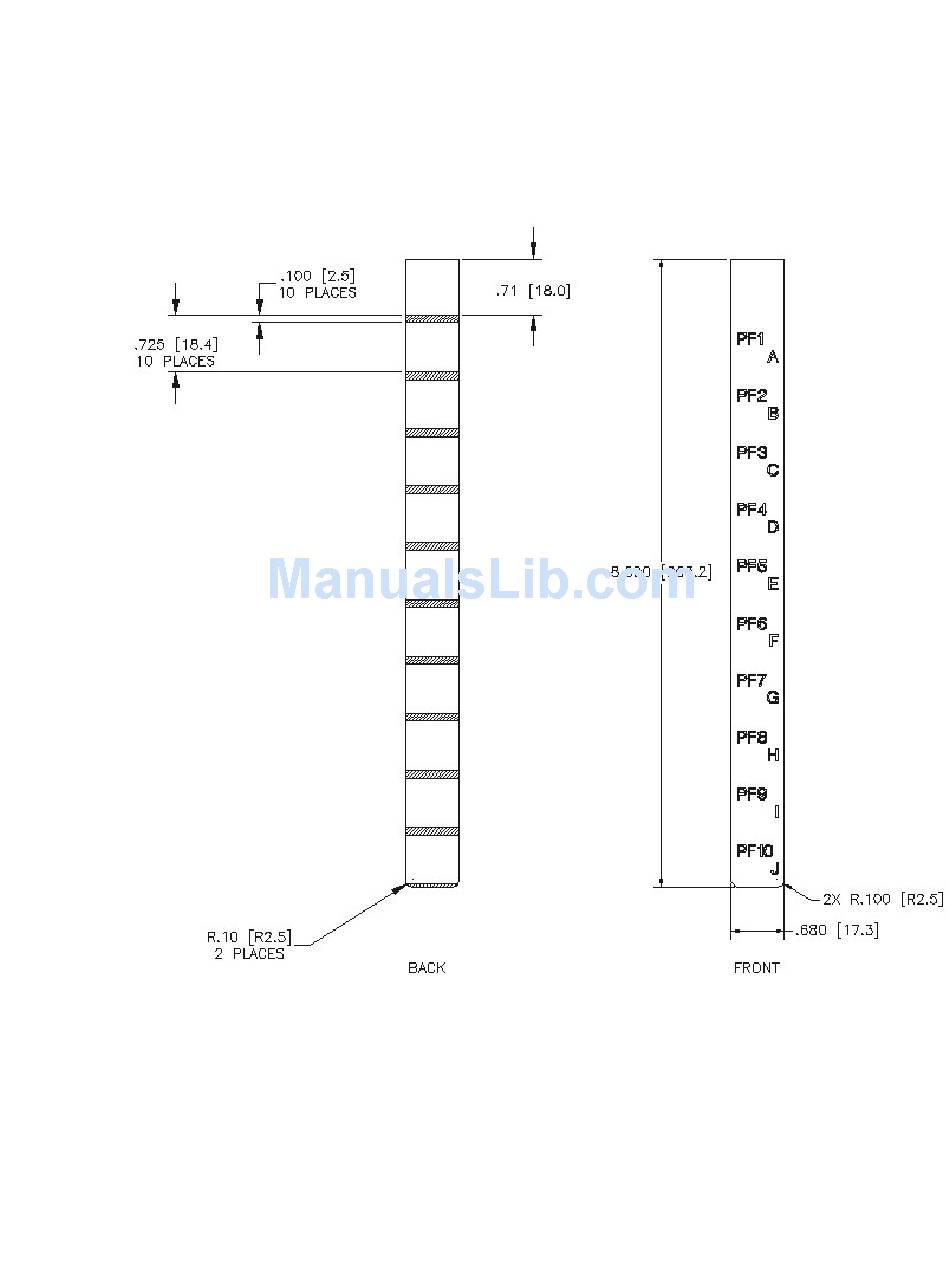

Figure 2-7. 3612 KPM(T) Keypad Inserts with Dimensions (PF1 – PF10)
Note: The PF11-PF20 insert has the same dimensions
