3600 Series Flat Panel Industrial PC
3612KPM(T) & 3615KPM(T) Front Panel
Keyboard/mouse
and USB ports
The 3612KPM(T) features function keys on either side of the flat panel display
(PF1-PF20), function keys below the display (F1-F20), a numeric keypad, window
keys, a cursor control keypad, diagnostic LEDs, industrial mouse/keyboard and
USB ports. All keypad keys are reprogrammable
function keys are relegendable
1
All keypad keys can be programmed to perform any function necessary.
2
You are able to create your own, custom keypad inserts to reflect any reprogramming you may have
done.
Diagnostic LEDs

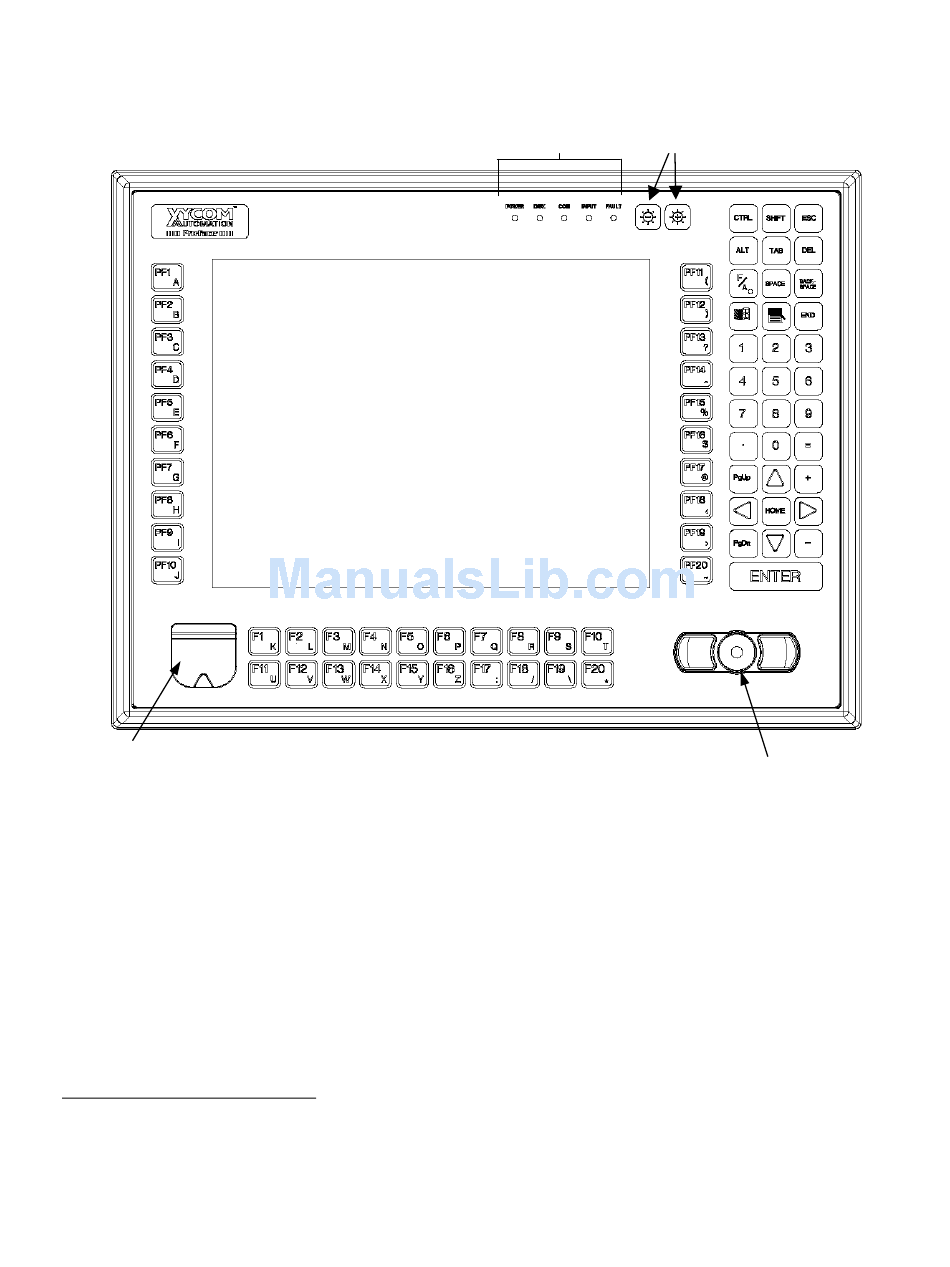

Figure 1-2. 3612KPM(T) Front Panel
2
. See Chapter 3 for more details.
6
Chapter 1 – Introduction
Brightness
Mouse
1 , except the F/A key, and all
142214 (F)
