Delta VFD-VE User Manual page 45

Chapter 3 Digital Keypad Operation and Start Up

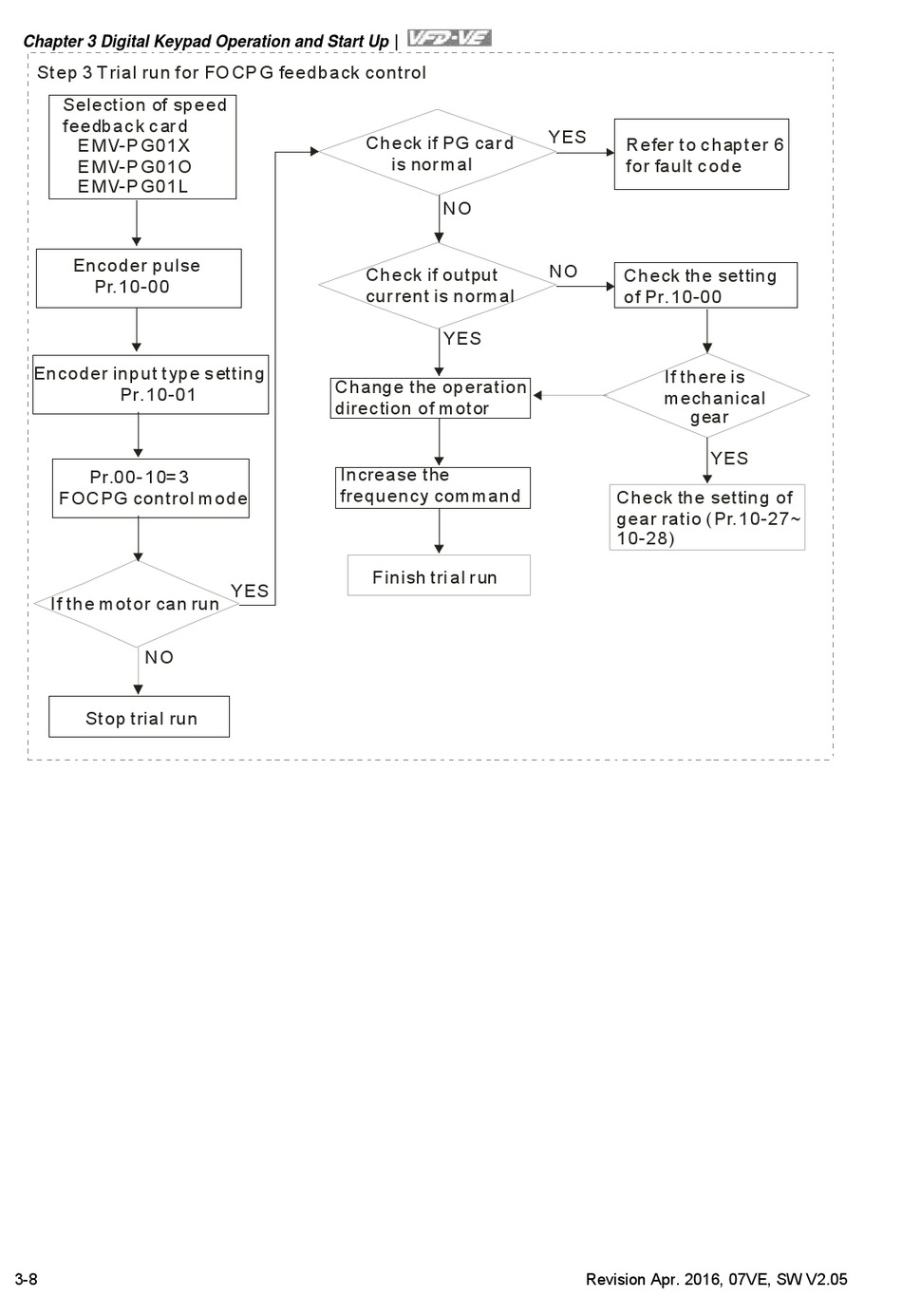

Step 3 T rial run for FO CP G feedback control
Selection of speed
feedbac k c ar d
E MV-P G01X
E MV-P G01O
E MV-P G01L
Encoder pulse
Pr.10-00
Encoder input type s etting
Pr.10-01
Pr.00- 10= 3
F OCPG control mode
If the motor can run
NO
Stop trial run
3-8
Check if PG car d
is nor mal
Check if output
cur rent is normal
C hange the operation
direc tion of motor
Increase the
frequency command
F inish tri al r un
YES
YES
NO
NO
YES
Revision Apr. 2016, 07VE, SW V2.05
Refer to c hapter 6
for fault c ode
Check the setting
of Pr.10-00
If there is
mechanical
gear
YES
C heck the setting of
gear ratio ( Pr.10-27~
10-28)
