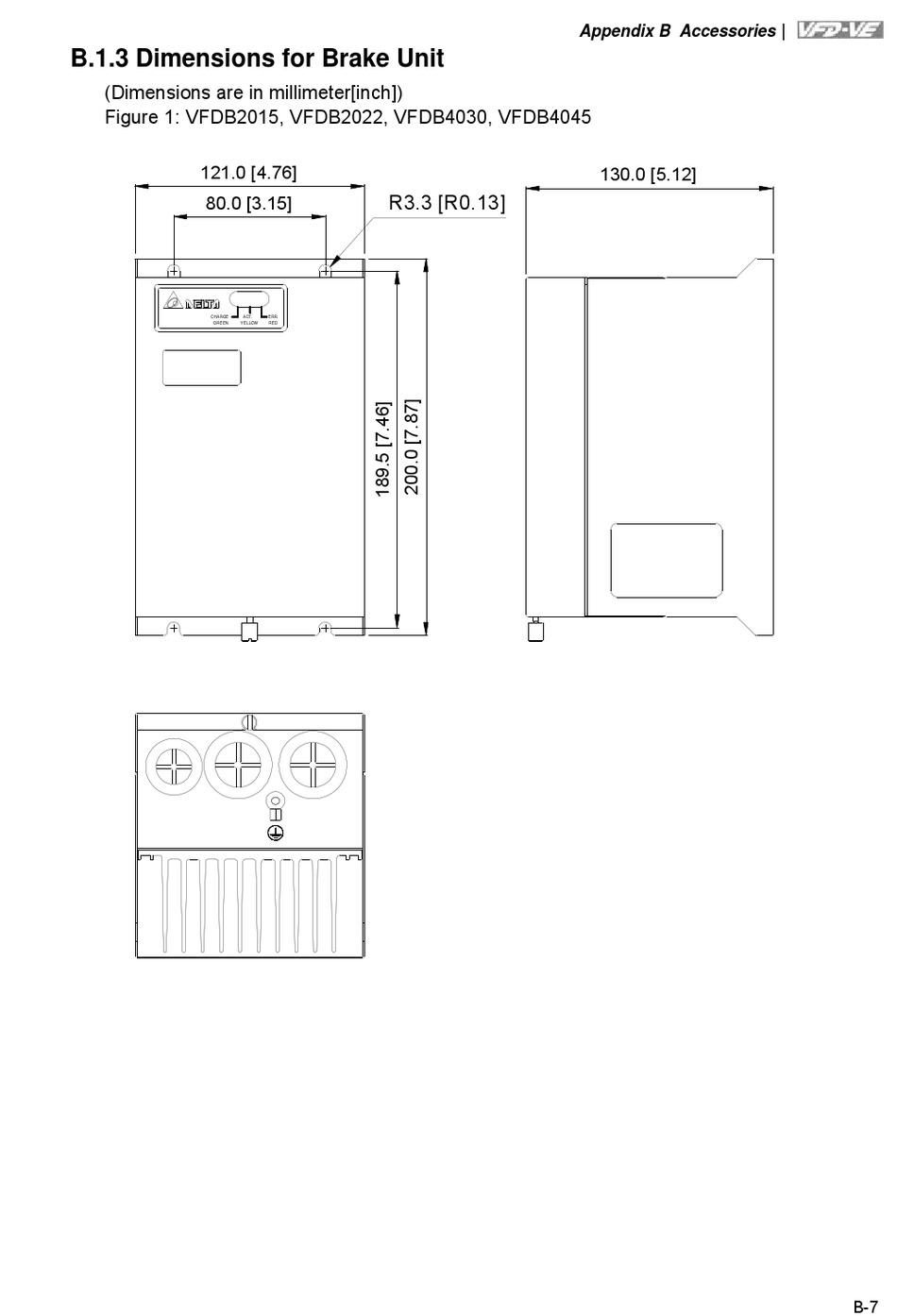

B.1.3 Dimensions for Brake Unit
(Dimensions are in millimeter[inch])
Figure 1: VFDB2015, VFDB2022, VFDB4030, VFDB4045
121.0 [4.76]
80.0 [3.15]
CHARGE
GREEN
R3.3 [R0.13]
ACT.
ERR.
YELLOW
RED
Appendix B Accessories
130.0 [5.12]
B-7
