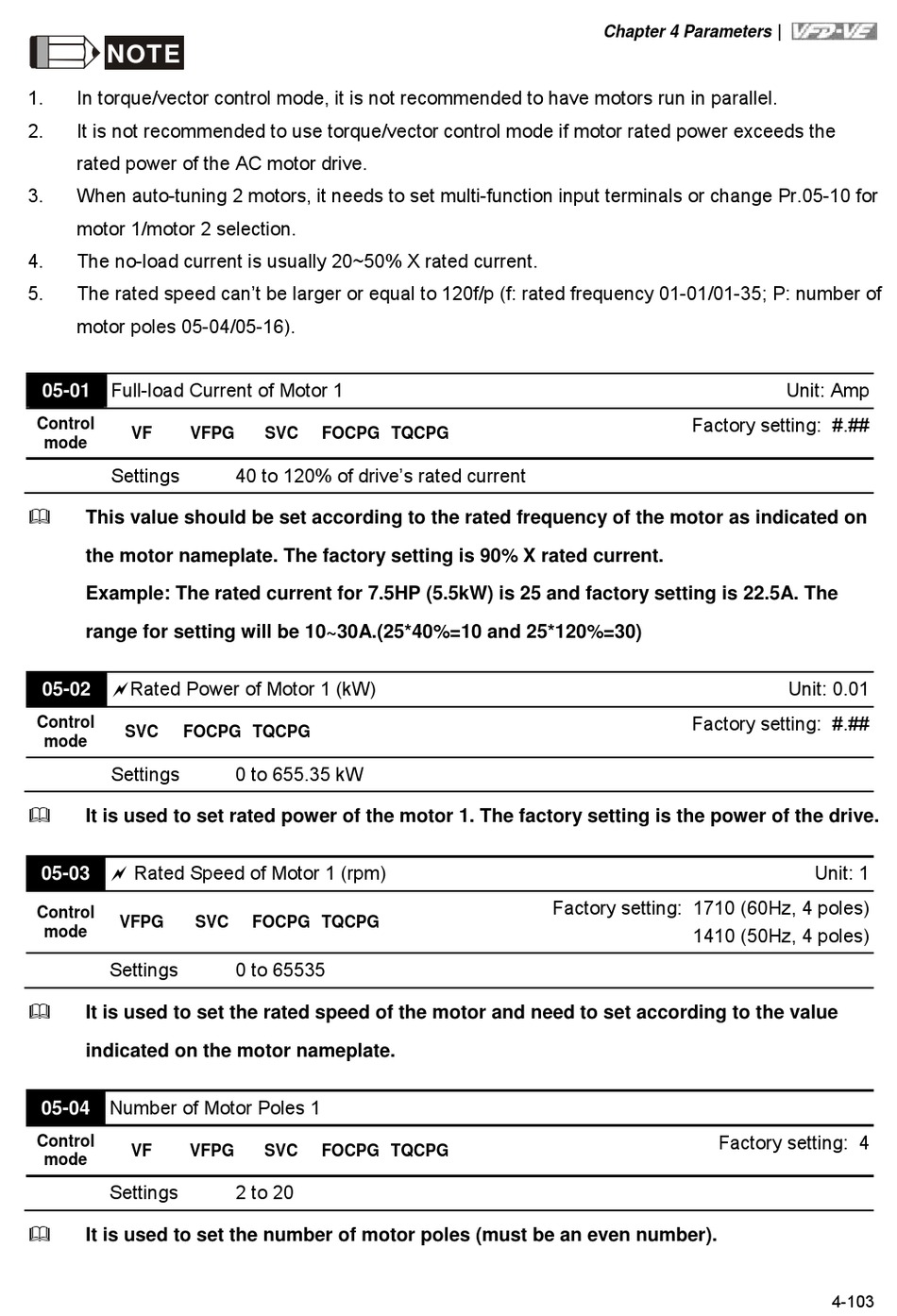

NOTE
1. In torque/vector control mode, it is not recommended to have motors run in parallel.
2. It is not recommended to use torque/vector control mode if motor rated power exceeds the
rated power of the AC motor drive.
3. When auto-tuning 2 motors, it needs to set multi-function input terminals or change Pr.05-10 for
motor 1/motor 2 selection.
4. The no-load current is usually 20~50% X rated current.
5. The rated speed can't be larger or equal to 120f/p (f: rated frequency 01-01/01-35; P: number of
motor poles 05-04/05-16).

Full-load Current of Motor 1

05-01
Control
VF VFPG
mode
Settings

This value should be set according to the rated frequency of the motor as indicated on
the motor nameplate. The factory setting is 90% X rated current.
Example: The rated current for 7.5HP (5.5kW) is 25 and factory setting is 22.5A. The
range for setting will be 10~30A.(25*40%=10 and 25*120%=30)
Rated Power of Motor 1 (kW)
05-02
Control
SVC FOCPG TQCPG
mode
Settings

It is used to set rated power of the motor 1. The factory setting is the power of the drive.
 Rated Speed of Motor 1 (rpm)
05-03
Control
VFPG SVC
mode
Settings

It is used to set the rated speed of the motor and need to set according to the value
indicated on the motor nameplate.

Number of Motor Poles 1

05-04
Control
VF VFPG
mode
Settings

It is used to set the number of motor poles (must be an even number).
SVC FOCPG TQCPG
40 to 120% of drive's rated current
0 to 655.35 kW
FOCPG TQCPG
0 to 65535
SVC FOCPG TQCPG
2 to 20
Chapter 4 Parameters
Factory setting: #.##
Factory setting: #.##
Factory setting: 1710 (60Hz, 4 poles)
1410 (50Hz, 4 poles)
Factory setting: 4
Unit: Amp
Unit: 0.01
Unit: 1
