Appendix B Accessories

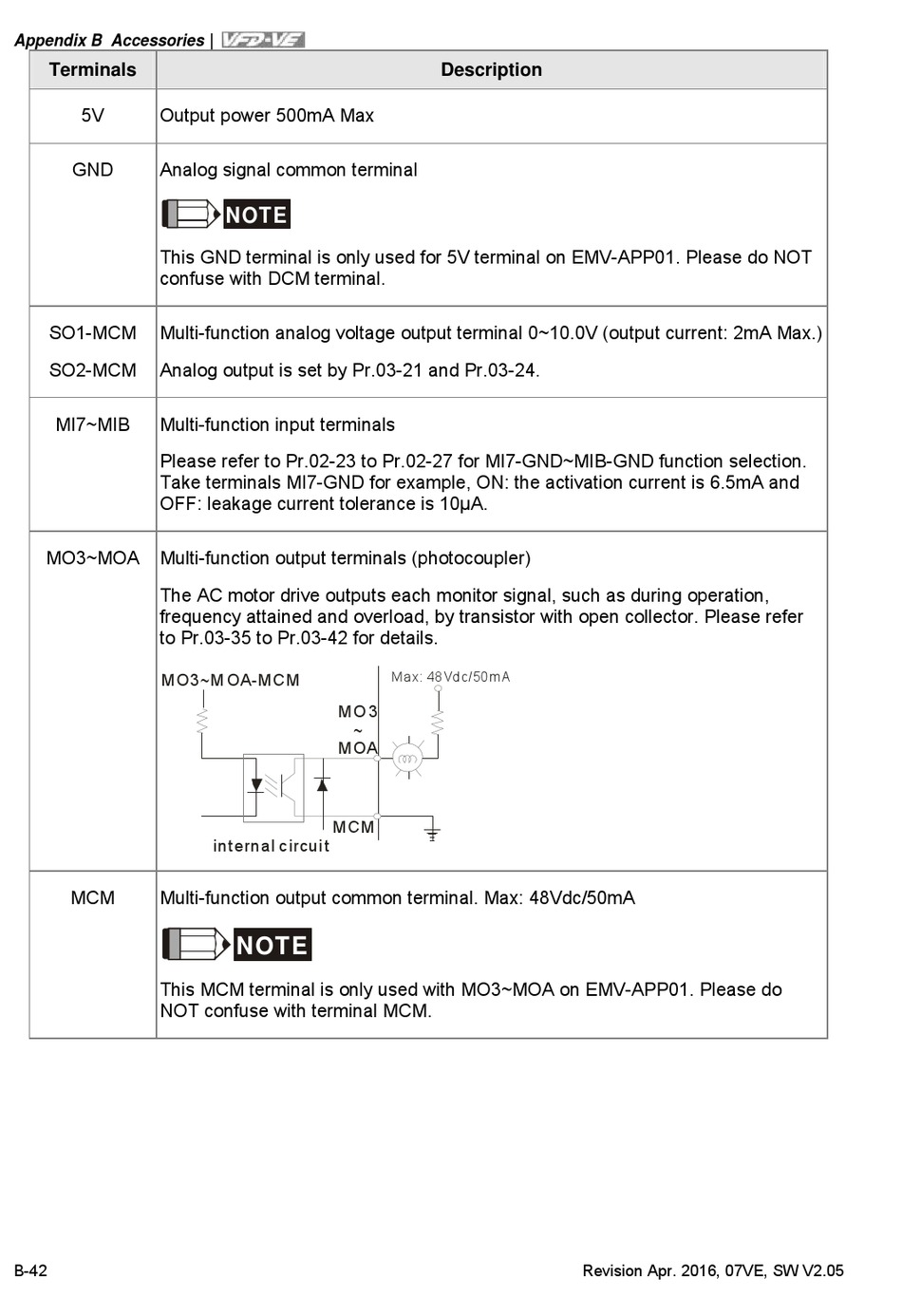

Terminals
5V Output power 500mA Max
GND Analog signal common terminal
This GND terminal is only used for 5V terminal on EMV-APP01. Please do NOT
confuse with DCM terminal.
SO1-MCM Multi-function analog voltage output terminal 0~10.0V (output current: 2mA Max.)
SO2-MCM Analog output is set by Pr.03-21 and Pr.03-24.
MI7~MIB Multi-function input terminals
Please refer to Pr.02-23 to Pr.02-27 for MI7-GND~MIB-GND function selection.
Take terminals MI7-GND for example, ON: the activation current is 6.5mA and
OFF: leakage current tolerance is 10μA.
MO3~MOA Multi-function output terminals (photocoupler)
The AC motor drive outputs each monitor signal, such as during operation,
frequency attained and overload, by transistor with open collector. Please refer
to Pr.03-35 to Pr.03-42 for details.
MO3~M OA-MC M
MCM Multi-function output common terminal. Max: 48Vdc/50mA
This MCM terminal is only used with MO3~MOA on EMV-APP01. Please do
NOT confuse with terminal MCM.
B-42
NOTE
MO 3
~
MOA
MC M
internal c ircui t
NOTE
Description
Ma x: 48 Vd c/50 mA
Revision Apr. 2016, 07VE, SW V2.05
