Delta VFD-VE User Manual page 18

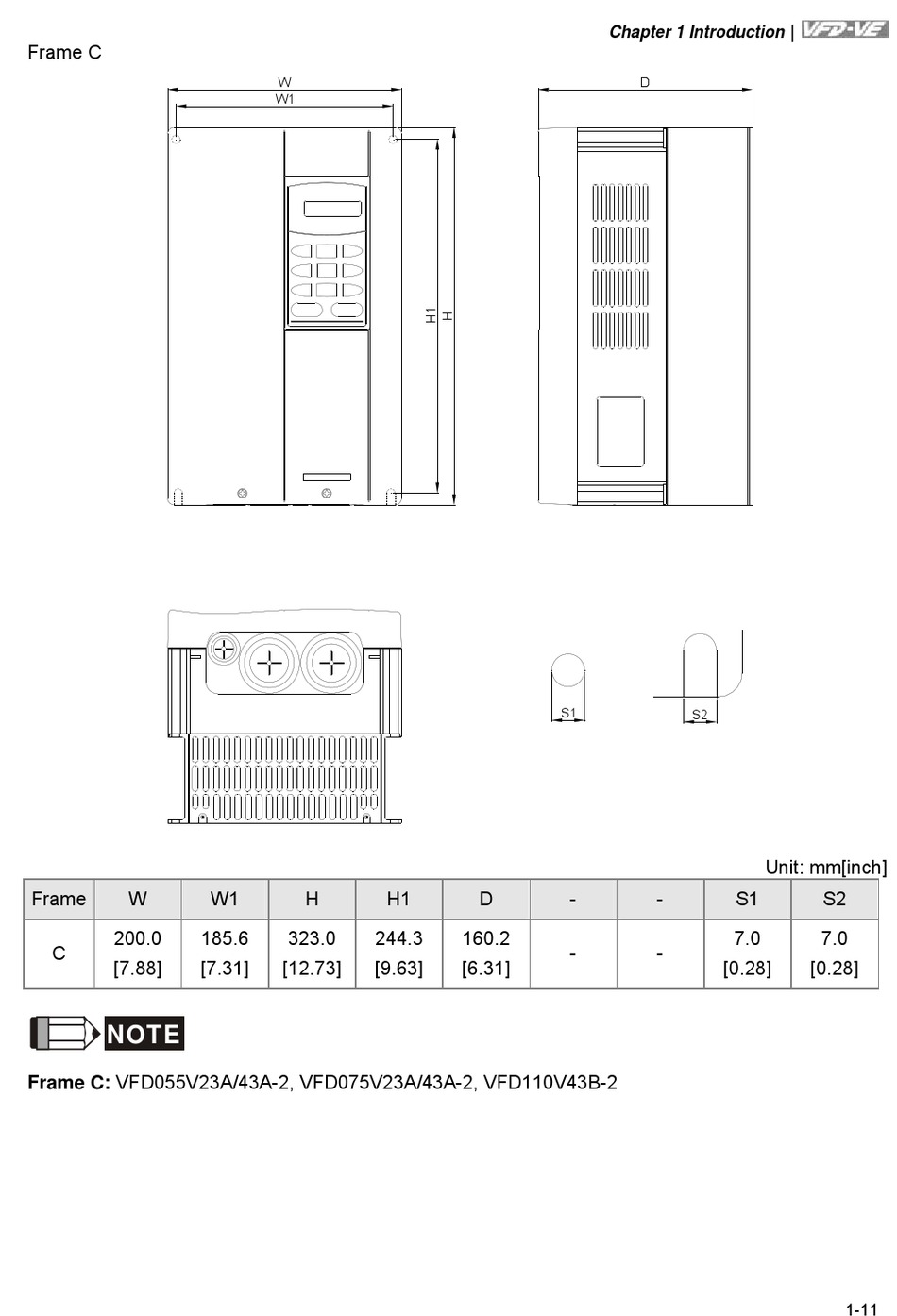

Frame C
Frame W
200.0
C
[7.88]
NOTE
Frame C: VFD055V23A/43A-2, VFD075V23A/43A-2, VFD110V43B-2
W
W1
W1 H
185.6 323.0
[7.31] [12.73]
H1 D
244.3 160.2
[9.63] [6.31]
Chapter 1 Introduction
D
S1
S2
- -
- -
[0.28]
Unit: mm[inch]
S1 S2
7.0 7.0
[0.28]
1-11
