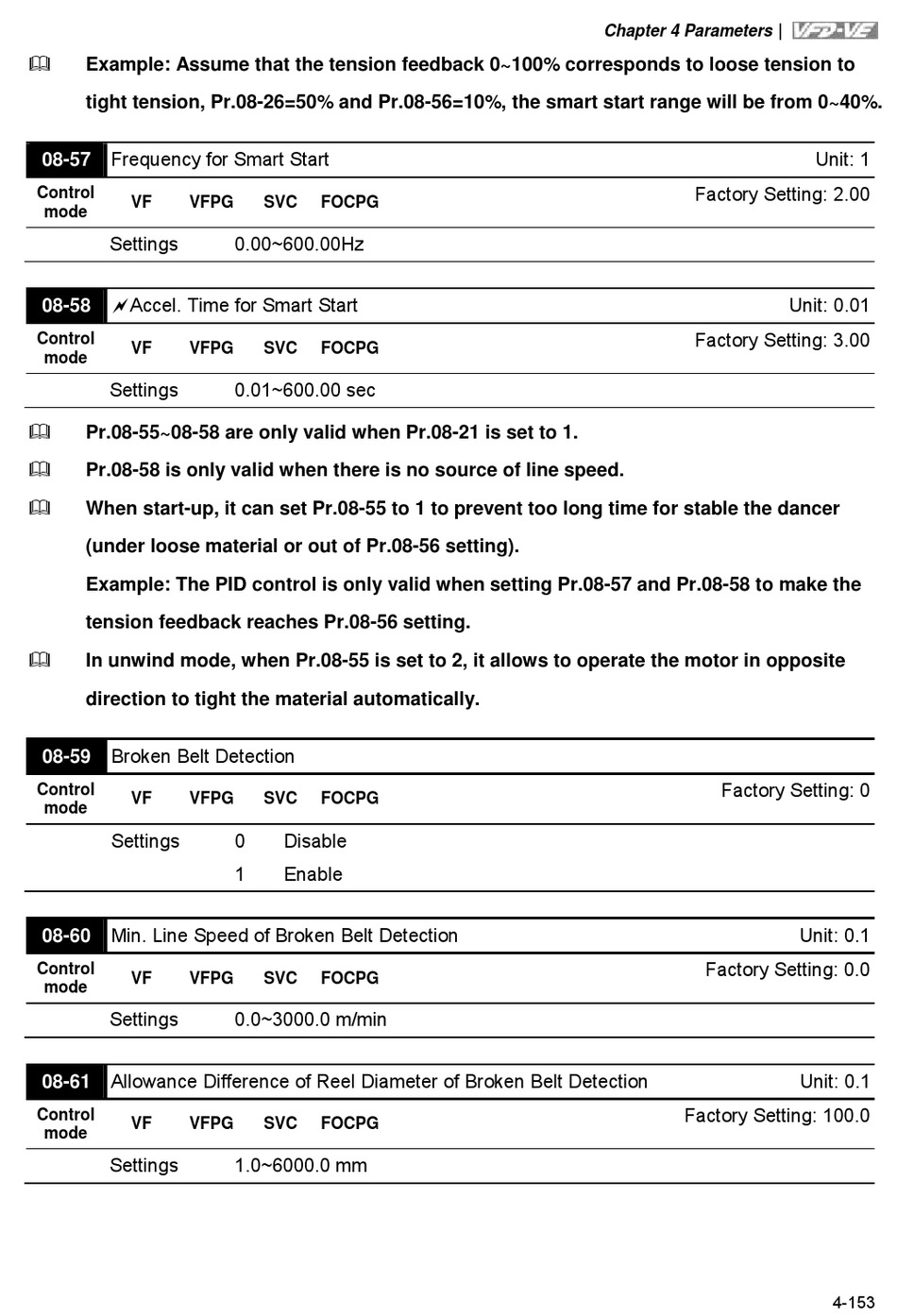

Example: Assume that the tension feedback 0~100% corresponds to loose tension to
tight tension, Pr.08-26=50% and Pr.08-56=10%, the smart start range will be from 0~40%.

Frequency for Smart Start

08-57
Control
VF VFPG
mode
Settings
Accel. Time for Smart Start
08-58
Control
VF VFPG
mode
Settings

Pr.08-55~08-58 are only valid when Pr.08-21 is set to 1.

Pr.08-58 is only valid when there is no source of line speed.

When start-up, it can set Pr.08-55 to 1 to prevent too long time for stable the dancer
(under loose material or out of Pr.08-56 setting).
Example: The PID control is only valid when setting Pr.08-57 and Pr.08-58 to make the
tension feedback reaches Pr.08-56 setting.

In unwind mode, when Pr.08-55 is set to 2, it allows to operate the motor in opposite
direction to tight the material automatically.
Broken Belt Detection
08-59
Control
VF VFPG
mode
Settings
Min. Line Speed of Broken Belt Detection
08-60
Control
VF VFPG
mode
Settings

Allowance Difference of Reel Diameter of Broken Belt Detection

08-61
Control
VF VFPG
mode
Settings
SVC FOCPG
0.00~600.00Hz
SVC FOCPG
0.01~600.00 sec
SVC FOCPG
0 Disable
1 Enable
SVC FOCPG
0.0~3000.0 m/min
SVC FOCPG
1.0~6000.0 mm
Chapter 4 Parameters
Factory Setting: 2.00
Factory Setting: 3.00
Factory Setting: 0
Factory Setting: 0.0
Factory Setting: 100.0
Unit: 1
Unit: 0.01
Unit: 0.1
Unit: 0.1
4-153
