Settings Functions
Enable pulse position
37
input command
Disable write EEPROM
38
function
Torque command
39
direction
R un/S top
MI=d1
MI=d2
MI=d3
MI=d4
MI=d36
Wri ting the motor posi ti on
into the P r.04-25

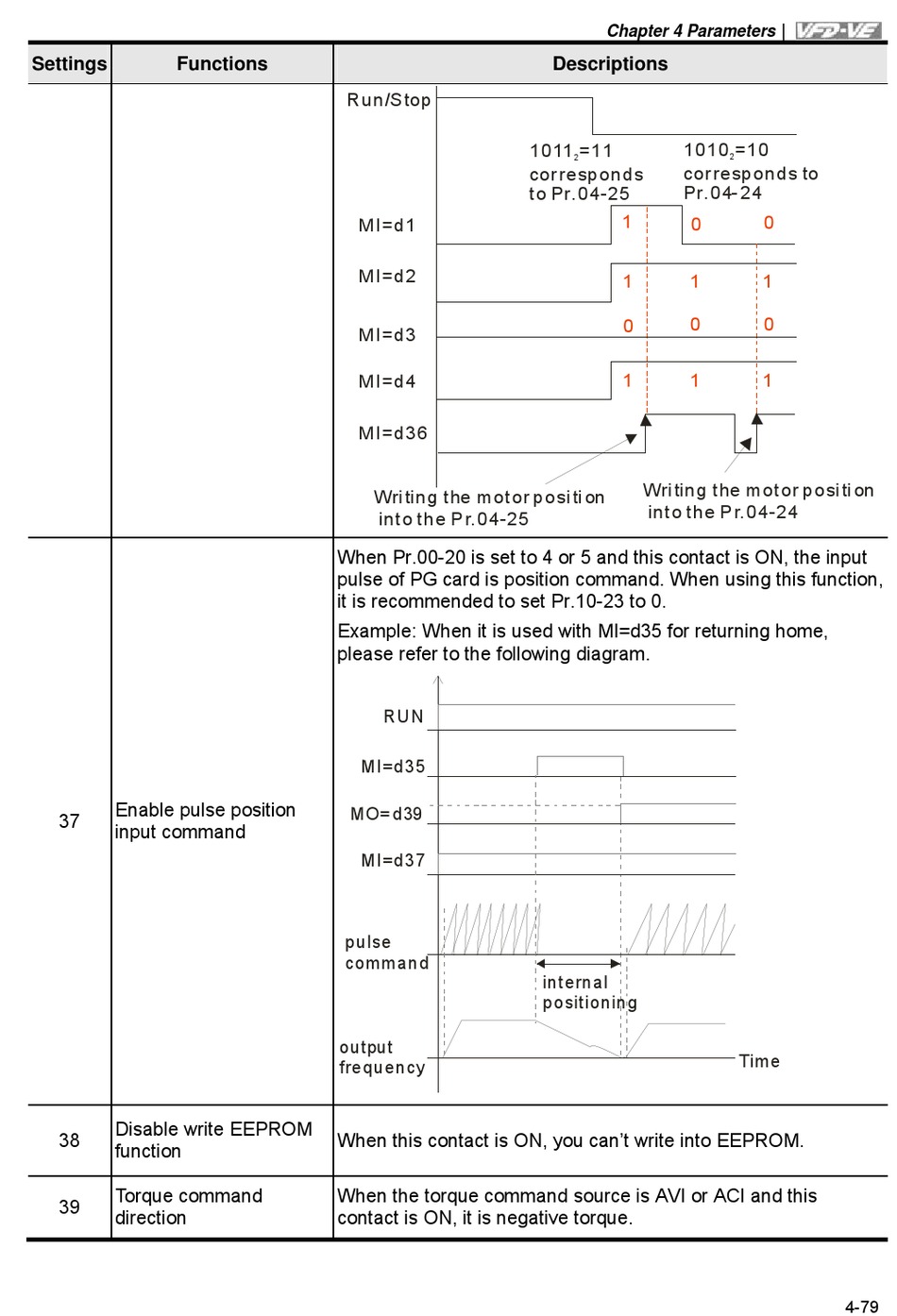

When Pr.00-20 is set to 4 or 5 and this contact is ON, the input
pulse of PG card is position command. When using this function,
it is recommended to set Pr.10-23 to 0.
Example: When it is used with MI=d35 for returning home,
please refer to the following diagram.
RU N
MI=d35
MO= d39
MI=d37
pulse
command
output
frequency
When this contact is ON, you can't write into EEPROM.
When the torque command source is AVI or ACI and this
contact is ON, it is negative torque.
Chapter 4 Parameters
Descriptions
1010 =10
1011 =11
2
cor responds to
cor responds
Pr.04- 24
to Pr.04-25
1
0
1 1
0
0
1 1
Wri ting the motor posi ti on
into the P r.04-24
internal
positioning
2
0
1
0
1
Time
4-79
