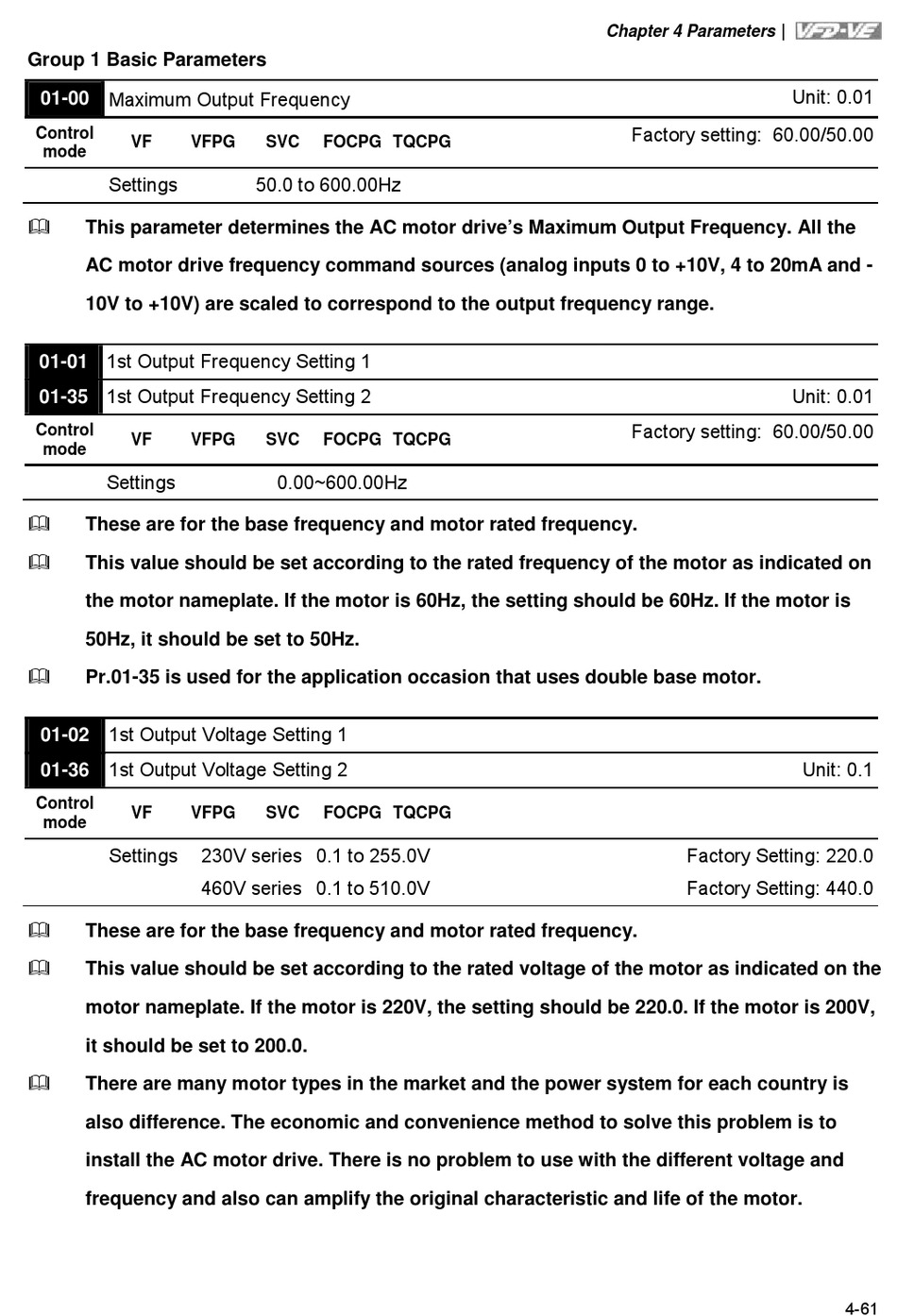

Group 1 Basic Parameters

Maximum Output Frequency

01-00
Control
VF VFPG
mode
Settings

This parameter determines the AC motor drive's Maximum Output Frequency. All the
AC motor drive frequency command sources (analog inputs 0 to +10V, 4 to 20mA and -
10V to +10V) are scaled to correspond to the output frequency range.
1st Output Frequency Setting 1
01-01
1st Output Frequency Setting 2
01-35
Control
VF VFPG
mode
Settings

These are for the base frequency and motor rated frequency.

This value should be set according to the rated frequency of the motor as indicated on
the motor nameplate. If the motor is 60Hz, the setting should be 60Hz. If the motor is
50Hz, it should be set to 50Hz.

Pr.01-35 is used for the application occasion that uses double base motor.
1st Output Voltage Setting 1
01-02
1st Output Voltage Setting 2
01-36
Control
VF VFPG
mode
Settings

These are for the base frequency and motor rated frequency.

This value should be set according to the rated voltage of the motor as indicated on the
motor nameplate. If the motor is 220V, the setting should be 220.0. If the motor is 200V,
it should be set to 200.0.

There are many motor types in the market and the power system for each country is
also difference. The economic and convenience method to solve this problem is to
install the AC motor drive. There is no problem to use with the different voltage and
frequency and also can amplify the original characteristic and life of the motor.
SVC FOCPG TQCPG
50.0 to 600.00Hz
SVC FOCPG TQCPG
0.00~600.00Hz
SVC FOCPG TQCPG
230V series 0.1 to 255.0V
460V series 0.1 to 510.0V
Chapter 4 Parameters
Factory setting: 60.00/50.00
Factory setting: 60.00/50.00
Factory Setting: 220.0
Factory Setting: 440.0
Unit: 0.01
Unit: 0.01
Unit: 0.1
4-61
