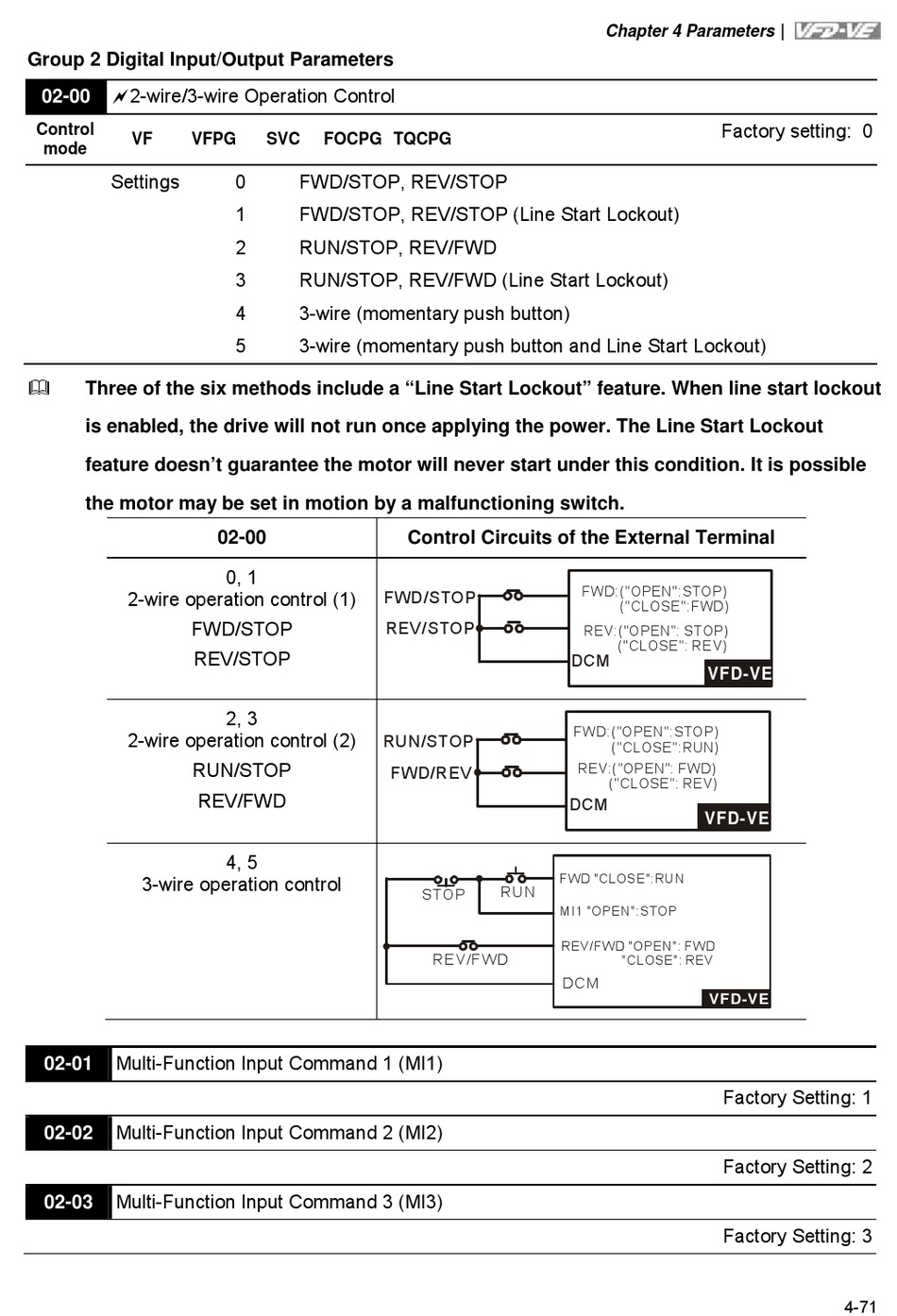

Group 2 Digital Input/Output Parameters
2-wire/3-wire Operation Control
02-00
Control
VF VFPG
mode
Settings

Three of the six methods include a "Line Start Lockout" feature. When line start lockout
is enabled, the drive will not run once applying the power. The Line Start Lockout
feature doesn't guarantee the motor will never start under this condition. It is possible
the motor may be set in motion by a malfunctioning switch.
2-wire operation control (1)
FWD/STOP
REV/STOP
2-wire operation control (2)
RUN/STOP
3-wire operation control

Multi-Function Input Command 1 (MI1)

02-01

Multi-Function Input Command 2 (MI2)

02-02
Multi-Function Input Command 3 (MI3)
02-03
SVC FOCPG TQCPG
0 FWD/STOP, REV/STOP
1 FWD/STOP, REV/STOP (Line Start Lockout)
2 RUN/STOP, REV/FWD
3 RUN/STOP, REV/FWD (Line Start Lockout)
4 3-wire (momentary push button)
5 3-wire (momentary push button and Line Start Lockout)
02-00
0, 1
2, 3
REV/FWD
4, 5
Control Circuits of the External Terminal
FWD/STOP
REV/STOP
RUN/STOP
FWD/REV
RUN
STOP
REV/FWD
Chapter 4 Parameters
Factory setting: 0
FWD:("OPEN":STO P)
("CLOSE":FWD )
REV:("O PEN": STOP)
("CLOSE": RE V)
DCM
VFD-VE
FWD:("O PEN":STO P)
("CLOSE":RUN)
REV:( "OP EN": FWD)
("CLOSE": REV)
DCM
VFD-VE
FWD "CLOS E":RU N
MI1 "OPEN":STOP
REV/FWD "OPEN": FWD
"CLOSE": REV
DCM
VFD-VE
Factory Setting: 1
Factory Setting: 2
Factory Setting: 3
4-71
