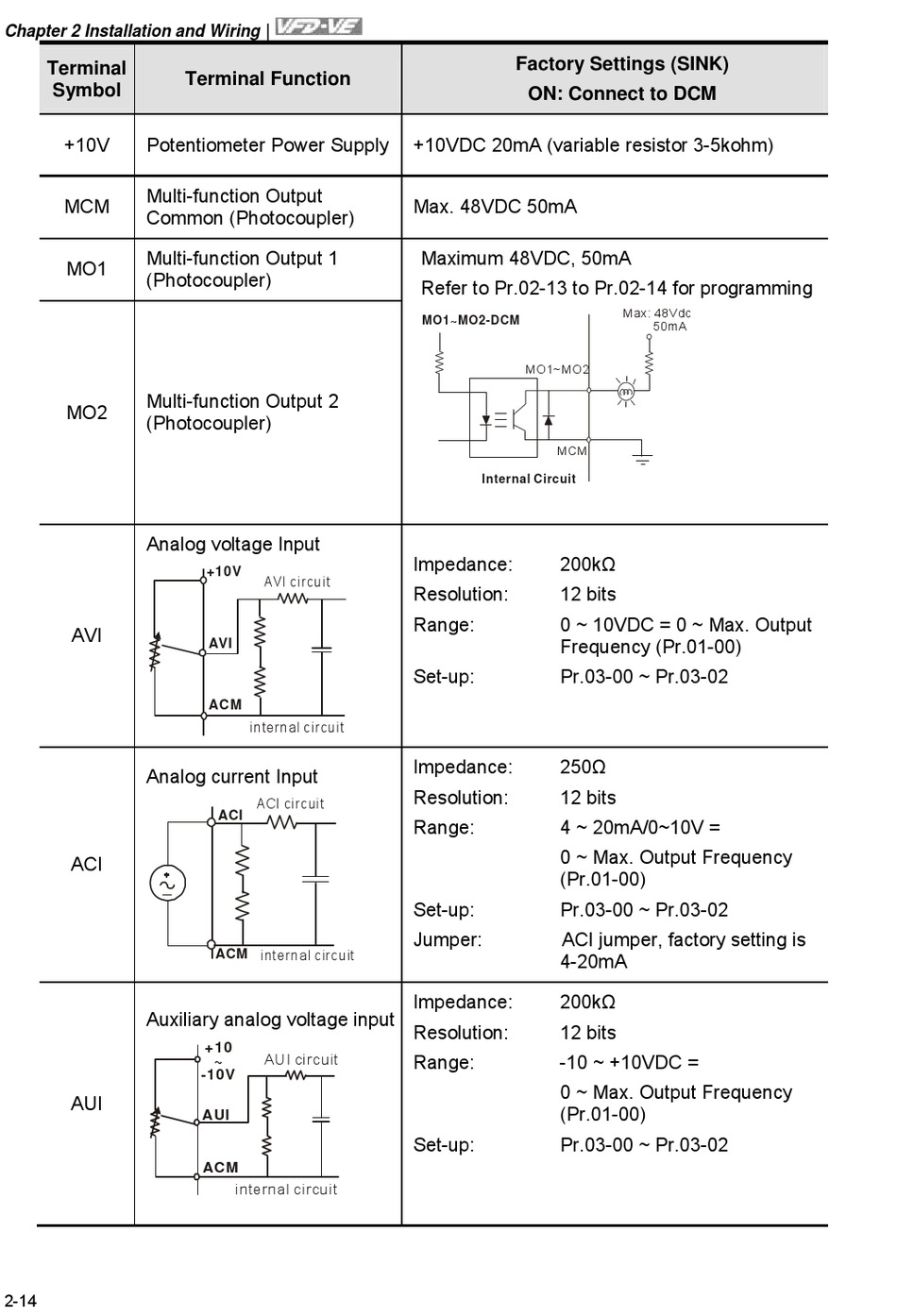

Chapter 2 Installation and Wiring
Terminal
Symbol
+10V Potentiometer Power Supply
Multi-function Output
MCM
Common (Photocoupler)
Multi-function Output 1
MO1
(Photocoupler)
Multi-function Output 2
MO2
(Photocoupler)
Analog voltage Input
AVI
Analog current Input
ACI
Auxiliary analog voltage input
AUI
2-14
Terminal Function
+10V
AVI circuit
AVI
ACM
internal circuit
ACI circuit
ACI
internal circuit
ACM
+10
AUI circuit
~
-10V
AUI
ACM
internal circuit
Factory Settings (SINK)
ON: Connect to DCM
+10VDC 20mA (variable resistor 3-5kohm)
Max. 48VDC 50mA
Maximum 48VDC, 50mA
Refer to Pr.02-13 to Pr.02-14 for programming
MO1~MO2-DCM
MO1~MO2
MCM
Internal Circuit
Impedance: 200kΩ
Resolution: 12 bits
Range: 0 ~ 10VDC = 0 ~ Max. Output
Frequency (Pr.01-00)
Set-up: Pr.03-00 ~ Pr.03-02
Impedance: 250Ω
Resolution: 12 bits
Range: 4 ~ 20mA/0~10V =
0 ~ Max. Output Frequency
(Pr.01-00)
Set-up: Pr.03-00 ~ Pr.03-02
Jumper: ACI jumper, factory setting is
4-20mA
Impedance: 200kΩ
Resolution: 12 bits
Range: -10 ~ +10VDC =
0 ~ Max. Output Frequency
(Pr.01-00)
Set-up: Pr.03-00 ~ Pr.03-02
Max: 48Vdc
50mA
