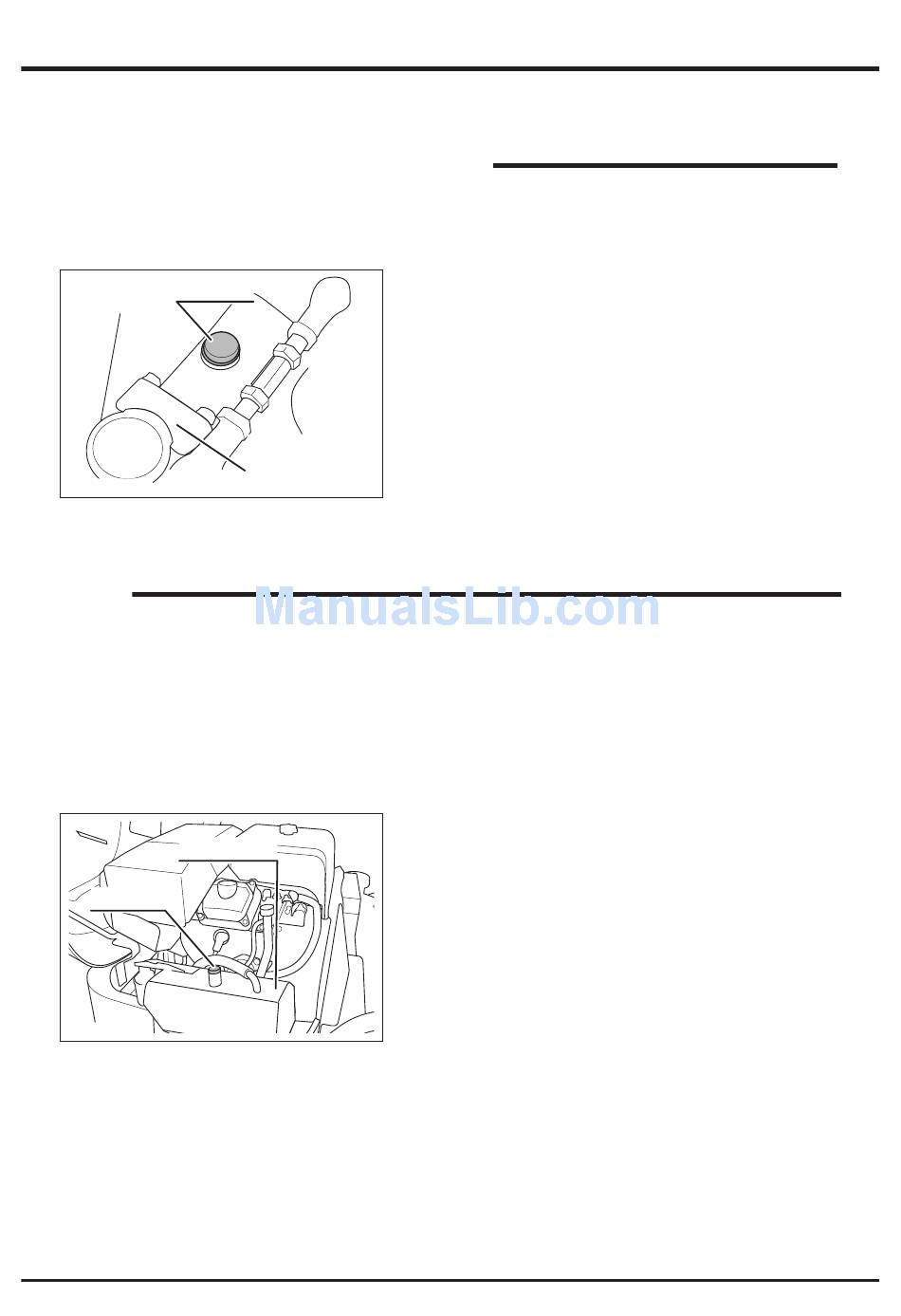

Filler Plug
5332M-0507-090E
HST (Hydrostatic Transmission) Fluid
NOTE
• To obtain correct reading, check HST fluid level before starting, or wait until HST
fluid cools off sufficiently. Hot HST fluid expands in volume and does not provide
correct reading.
• When oil is sufficiently cooled and is at the [MIN] level, its amount is sufficient.
• Do not exceed beyond [MAX] level. HST fluid may espand and overflow.
• Oil to use and capacity: Page 45.
HST Oil Tank
Filler Cap
5335M-0507-010E
Maintenance
NOTE
5.
6.
7.
8.
9.
10. Install right front step.
Front Wheel
Axle (Right)
Inspecting - Models with charge-pump
1.
2.
3.
• Drain plug for the right front knucle is on
the back side of the front axle.
Install both drain plugs back in place.
Remove right front step.
Remove oil filler cap.
Fill specified amount of oil into filler.
Install filler plug back in place.
Park machine on the level ground.
Open engine hood.
Unscrew and remove filler cap.
-61-
5
