5
Lock Lever
Cutting Blade Shield
5335M-0505-070E
A
B
Lock Lever
5335M-0505-090E
5335M-0505-080E

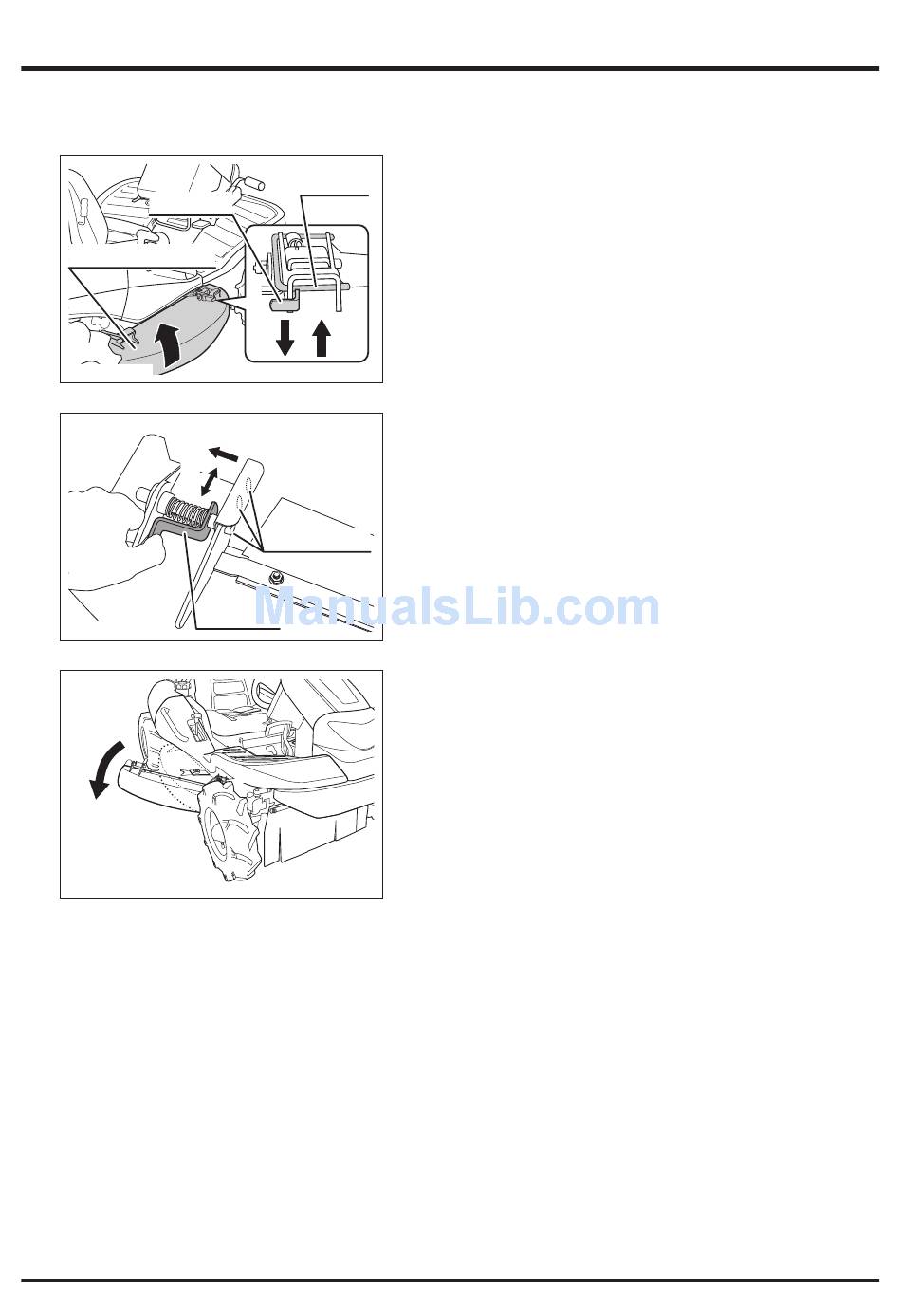

Maintenance
Flipping up shield
Lock Pin
1.
2.
3.
Opening shield to the side
1.
2.
3.
Lock Positions
-54-
Push lock pin to unlock shield.
Pull up lock lever and move shield up or
down to one of three positions.
Press down lock lever to lock shield. Lock pin
will also return to lock position automatically.
Squeeze lock lever as shown (A).
Keep lock lever squeezed and move shield
to one of three lock positions (B).
Release lock lever at the selected lock
position so that the pin on lock lever
positively fits into the hole at lock position.
