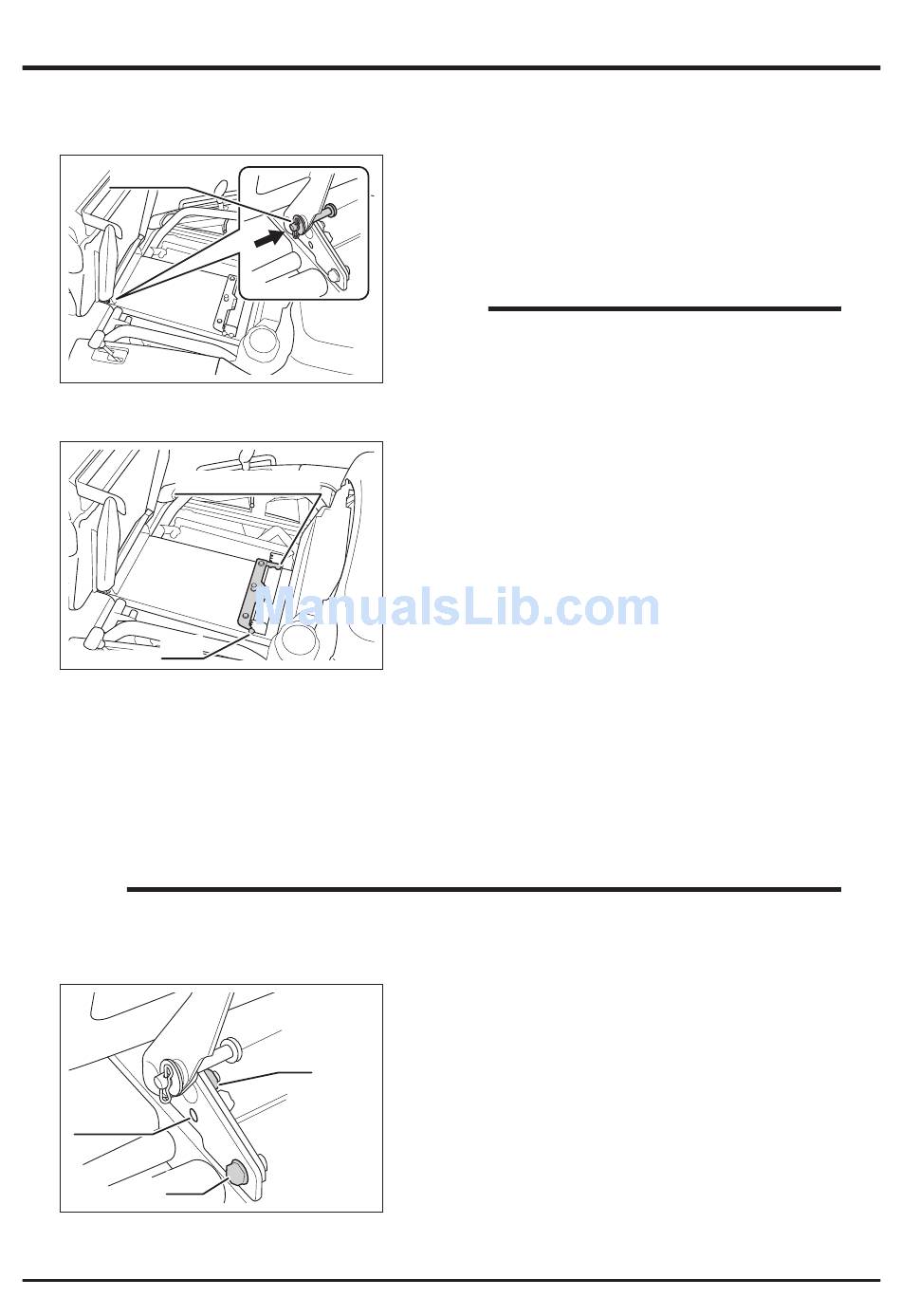

Safety Pin
5332M-0401-080E
Seat Switch Bracket
Bolts
5335M-0401-010E
Adjusting Height (Front Part)
If the seat height is not high enought with the rear part of seat in the highest position, adjust
height of front the part of seat.
1. Pull up seat and push safety pin toward inside to hold seat lift up.
2. Adjust seat switch bracket in the highest position.
NOTE
• Seat switch bracket need to be in the highest position when addjusting height of
front part of seat.
Front Hole
Bolt
5332M-0401-150E
Operation
Adjusting Height (Rear Part)
1.
2.
NOTE
• Move seat and to check if the seat is locked
securely.
• Height can be adjusted in 4 levels.
3.
4.
5.
3.
4.
Nut
5.
6.
7.
-21-
Slide seat to the rear-most position.
Pull up seat and push safety pin toward
inside to hold seat lifted.
Remove 2 bolts fixing seat switch bracket.
Move seat switch bracket into desired
position and fix with bolts firmly.
Pull safety pin back and lower the seat.
Loosen nut (left and right) fixting hinge of
seat.
Remove bolts on both sides.
Move seat so that front hole lines up with bolt
hole and fix with bolt on both sides.
Tighten nuts.
Pull safety pin back and lower the seat.
