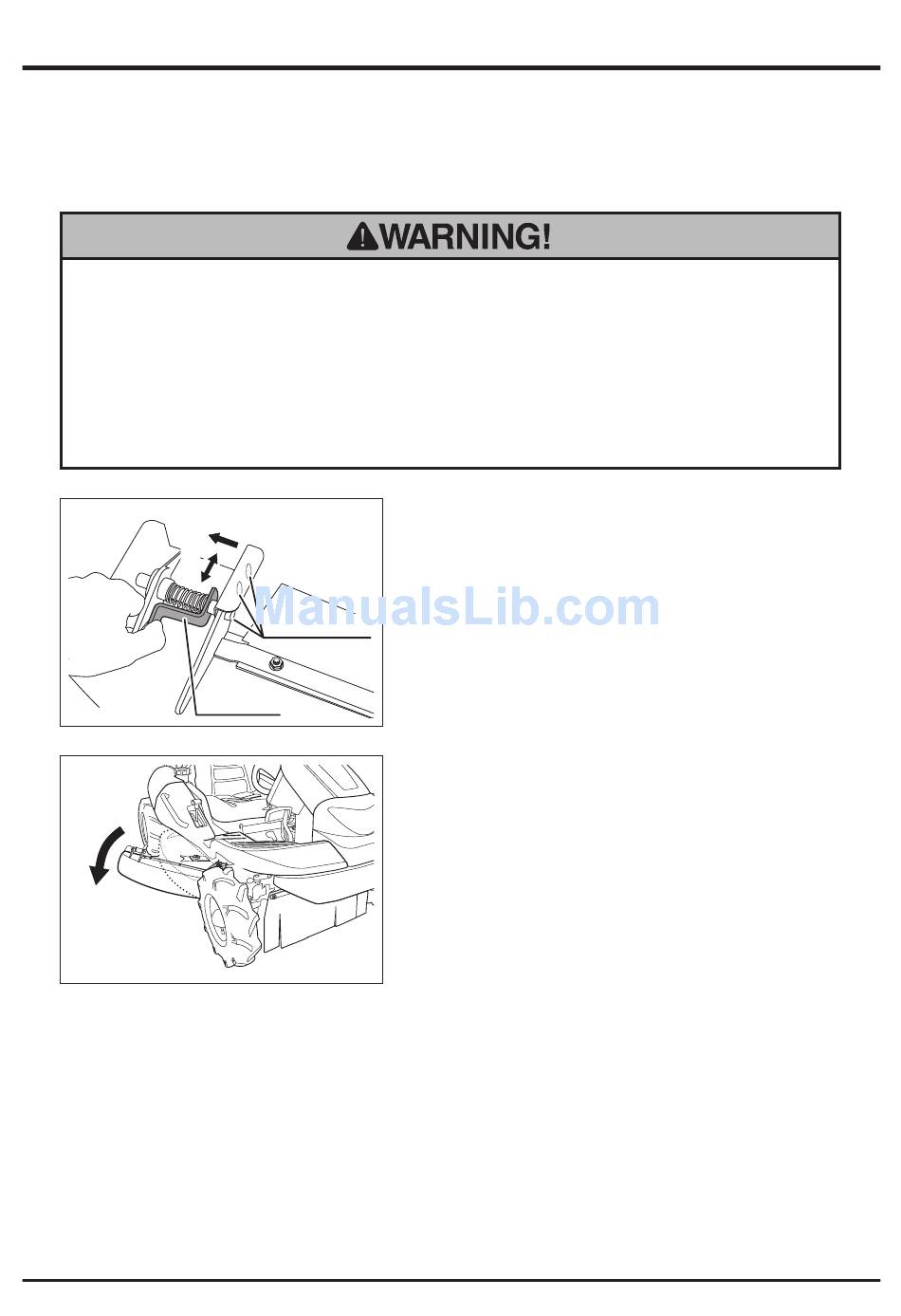

Adjusting Cutting Blade Shield

• Always stop engine when adjusting cutting blade shield. It may cause serious
injury if you open cutting blade shield when blades are rotating.
• Never attempt to work if cutting blade is unlocked. Also never attempt to work
if cutting blade shield is open upward.Thrown stones or debris may cause
injuries to nearby people.
A
B
5335M-0505-090E
5335M-0505-080E
Operation
Lock Positions
Lock Lever
Opening shield to the side
1. Squeeze lock lever as shown (A).
2. Keep lock lever squeezed and move shield
(B) to one of three lock positions.
3. Release lock lever at the selected lock
position so that the pin on lock lever
positively fits into the hole at lock position.
