5

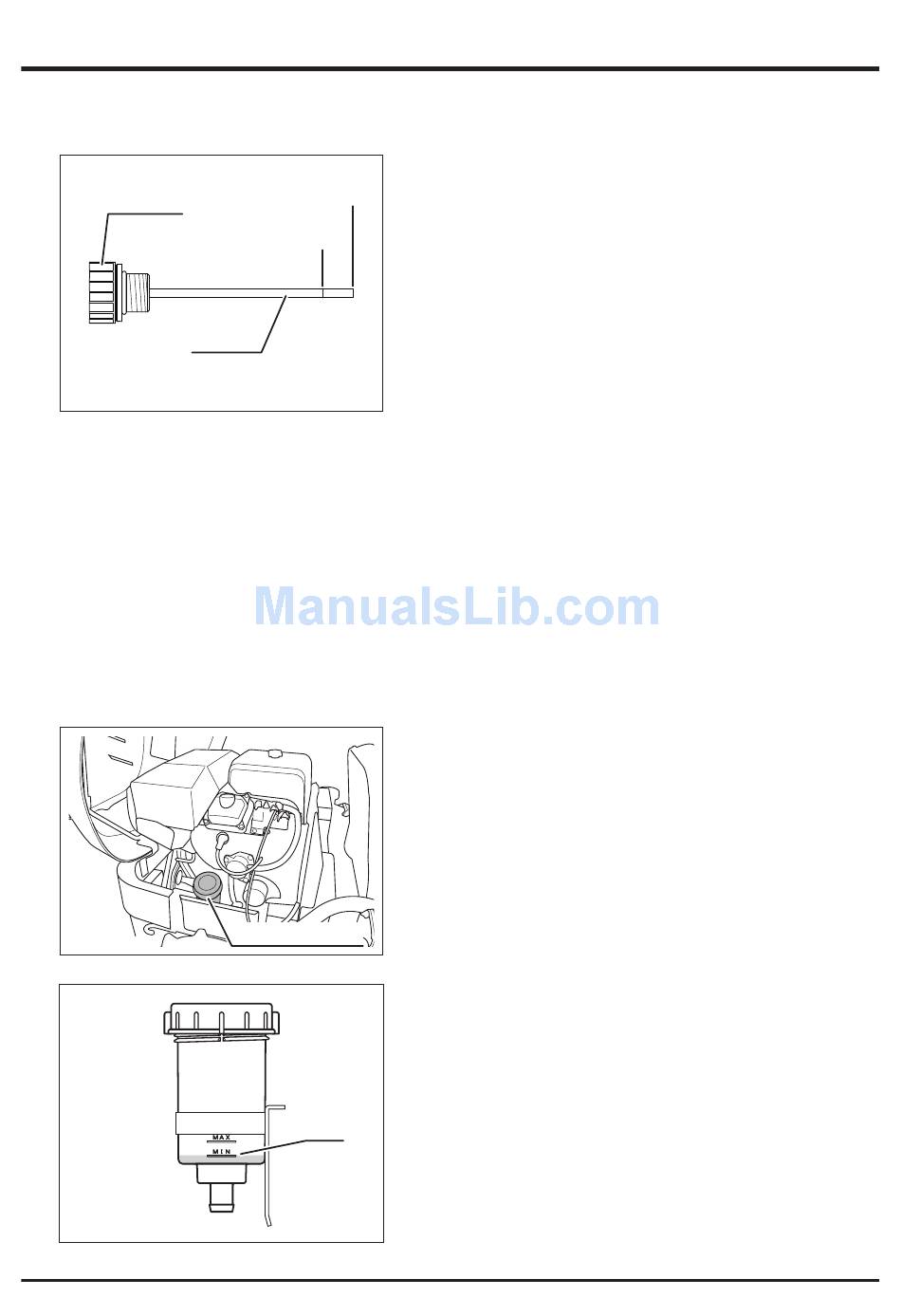

Filler Cap
Dip Stick
5335M-0507-020E
5335M-0507-030E
5335M-0507-050E
Maintenance
Lower Limit
Upper Limit
HST Oil Reservoir
MIN
4. Wipe dip stick with clean cloth. Reinstall filler
cap and screw it fully.
5. Unscrew and remove filler cap again. Visually
inspect that oil level is between the upper
and lower limits on dip stick. If it is below the
lower limit, fill oil.
6. Reinstall filler cap and screw it fully.
7. Close engine hood.
Filling - Models with charge-pump
1. Open engine hood.
2. Remove filler cap.
3. Fill specified HST fluid into filler so that oil
level is between upper and lower limits on
dipstick.
4. Reinstall filler cap back in place and screw it
securely.
5. Close engine hood.
Inspecting - Models without charge-pump
1. Park machine on the level ground.
2. Open engine hood.
3. Visually inspect that oil level is between [MIN]
and [MAX] lines on oil reservoir. If it is below
[MIN], fill oil.
4. Close engine hood.
Filling - Models without charge-pump
1. Open engine hood.
2. Remove cap on HST oil reservoir.
3. Fill specified HST fluid into reservoir so that
oil level is above [MIN] line on reservoir.
4. Reinstall cap back in place and screw it
securely.
5. Close engine hood.
-62-
