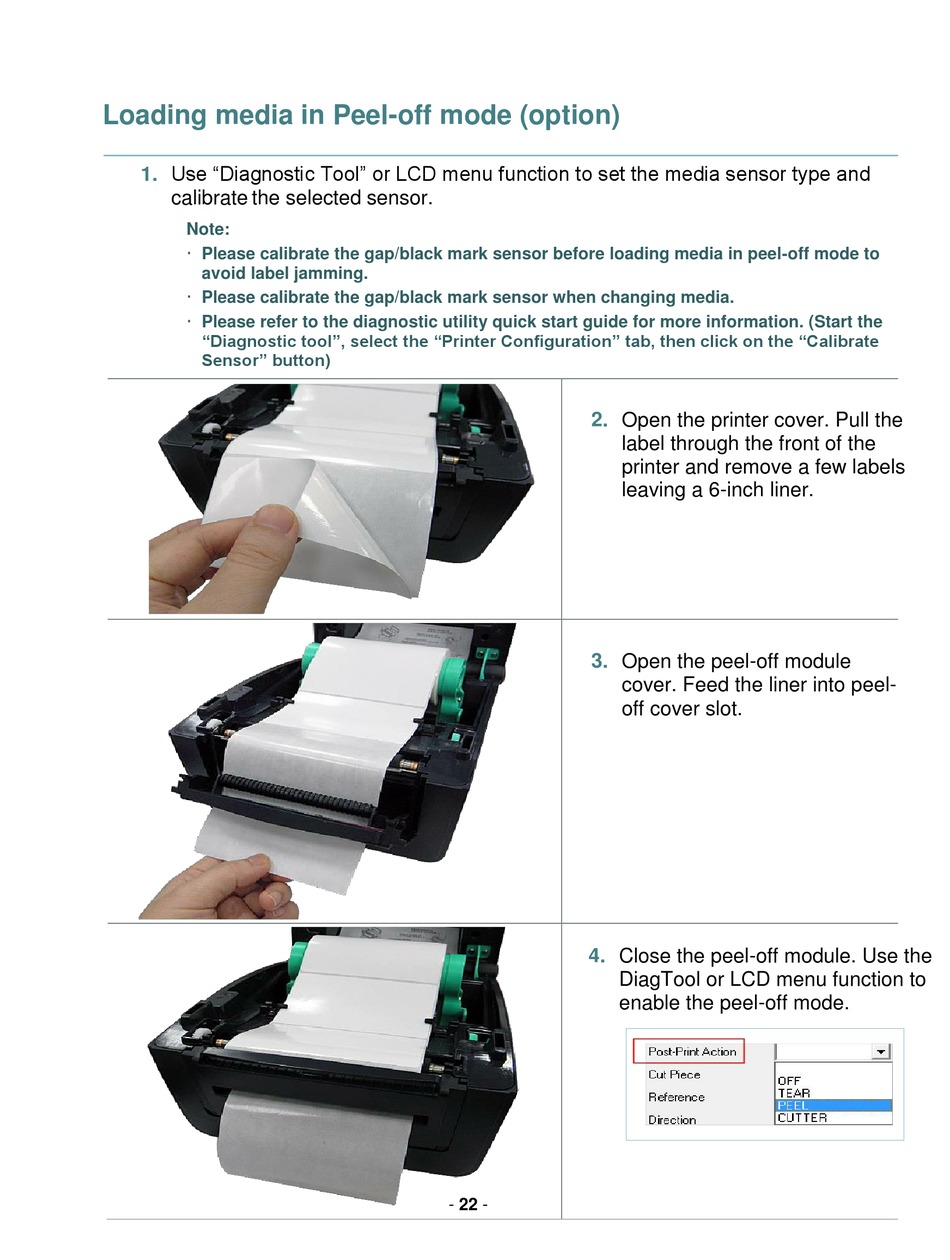

Loading media in Peel-off mode (option)

Use "Diagnostic Tool" or LCD menu function to set the media sensor type and
1.
calibrate the selected sensor.
Note:
 Please calibrate the gap/black mark sensor before loading media in peel-off mode to
avoid label jamming.
 Please calibrate the gap/black mark sensor when changing media.
 Please refer to the diagnostic utility quick start guide for more information. (Start the
"Diagnostic tool", select the "Printer Configuration" tab, then click on the "Calibrate
Sensor" button)
2. Open the printer cover. Pull the
label through the front of the
printer and remove a few labels
leaving a 6-inch liner.
3. Open the peel-off module
cover. Feed the liner into peel-
off cover slot.
4. Close the peel-off module. Use the
DiagTool or LCD menu function to
enable the peel-off mode.
