Loading the ribbon

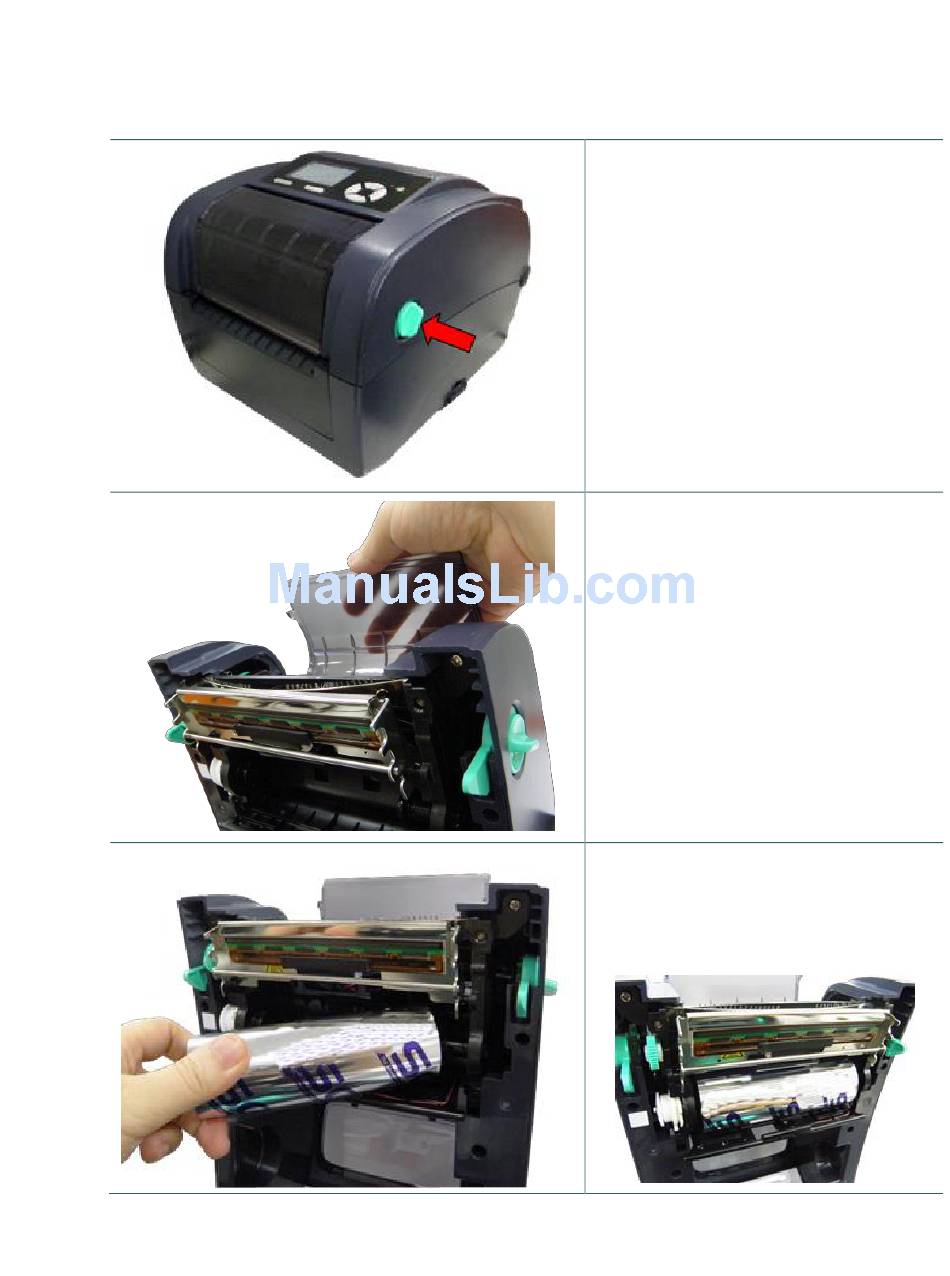

Open the printer's top cover by
1.
pulling the top cover open levers
located on each side of the
printer and lifting the top cover
to the maximum open angle.
2. Open the ribbon access cover
and the media cover.
Note:
1. In normal print mode, the
2. In peeler and cutter mode,
Insert the ribbon right side onto
3.
the supply hub. Align the notches
on the left side and mount onto
the spokes.
