Connecting to the Support Tool

3-2

Connecting to the Support Tool

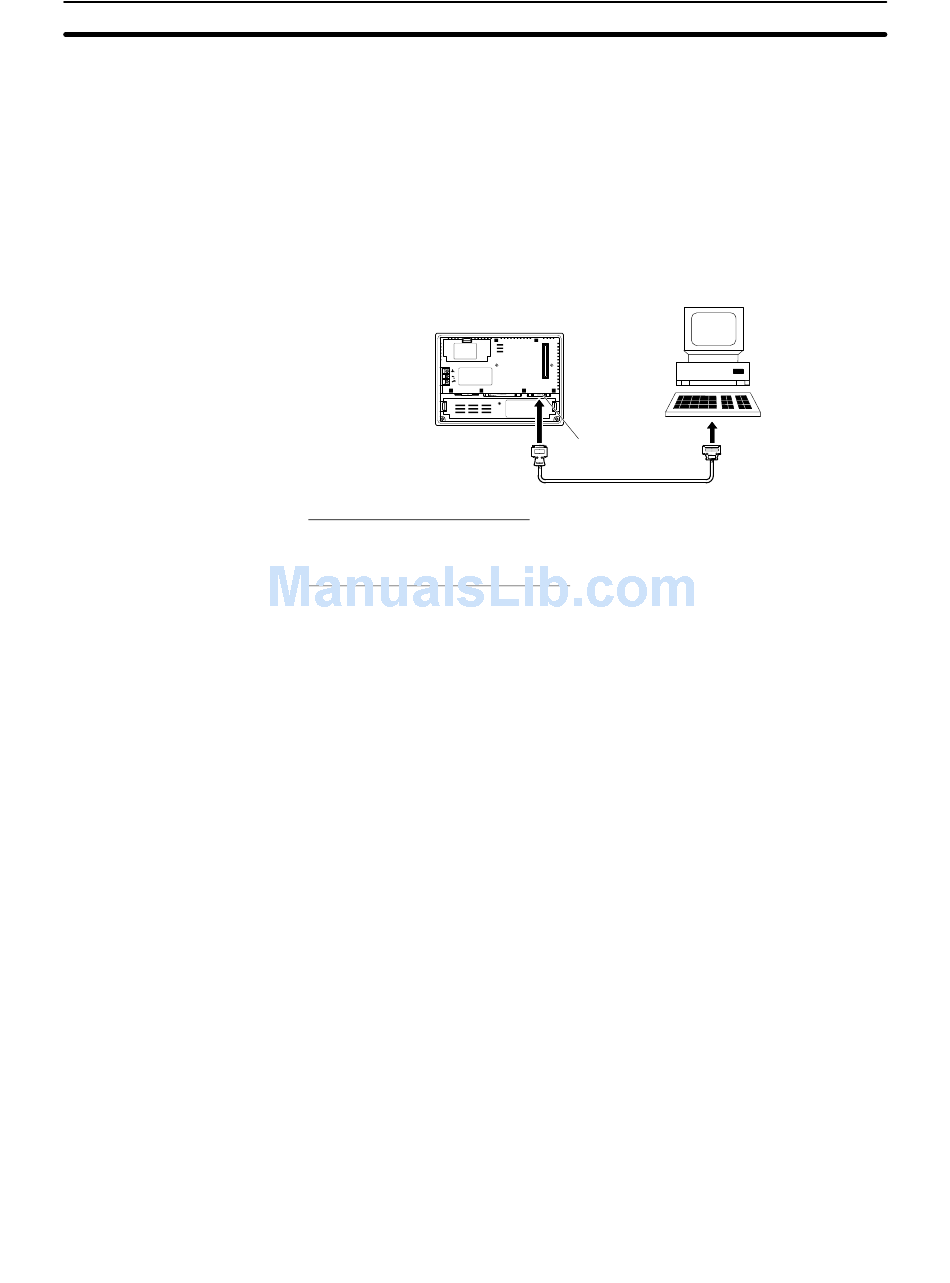

In order to install the system program in the NT31/NT31C, or to transmit screen
data created with the Support Tool to the NT31/NT31C, the NT31/NT31C must
be connected to a personal computer with an RS-232C cable.
The NT31/NT31C connects the RS-232C cable from a personal computer at se-
rial port A. When the host is connected at serial port B, the connection with the
host can be maintained as it is while the NT31/NT31C is connected to the
RS-232C cable from a personal computer.
However, when a bar code reader is being used, it must be disconnected, so that
the RS-232C cable can be connected, since they both use serial port A.
PRINTER
Communication Conditions
The communication conditions are automatically set when the system installer
and Support Tool are started.
Recommended Connector Cable
Use the cable indicated below.
• CV500-CN228 (length: 2 m), made by OMRON
(D-SUB 9-pin, male ⇔ D-SUB 25-pin, male)
• XW2Z-S001 (conversion cable), made by OMRON
(D-SUB 25-pin, female ⇔ half pitch 14-pin, male)
• XW2Z-S002 (length: 2 m), made by OMRON
(D-SUB 9-pin, male ⇔ D-SUB 9-pin, female)
For details on making a connector cable, refer to Appendix F Making the Cable
for Connecting a PC (page 269).
PORT B PORT A
Serial port A
(RS-232C, 9-pin)
Section 3-2
