Setting Conditions for Communications with Host by Using Memory Switches
• To quit the communications speed setting screen without setting the commu-
nications speed, press the Abort touch switch. The NT31/NT31C returns to the
memory switch setting screen (4/4) and the previous communications speed
remains in effect.
On completion of communications speed setting, the NT31/NT31C returns to
the memory switch setting screen (4/4).
To set other memory switches, select the relevant screen using the [ ] (next
screen) or [ ] (previous screen) touch switch, then make the setting.
• To confirm the settings and quit the memory switch setting screen, press the
Quit touch switch. The settings made last will be set and the NT31/NT31C will
return to the MAINTENANCE MODE MENU screen.
• To quit the memory switch setting screen without confirming the settings, press
the Abort touch switch. The NT31/NT31C will return to the MAINTENANCE
MODE MENU screen with the previous settings still in effect.

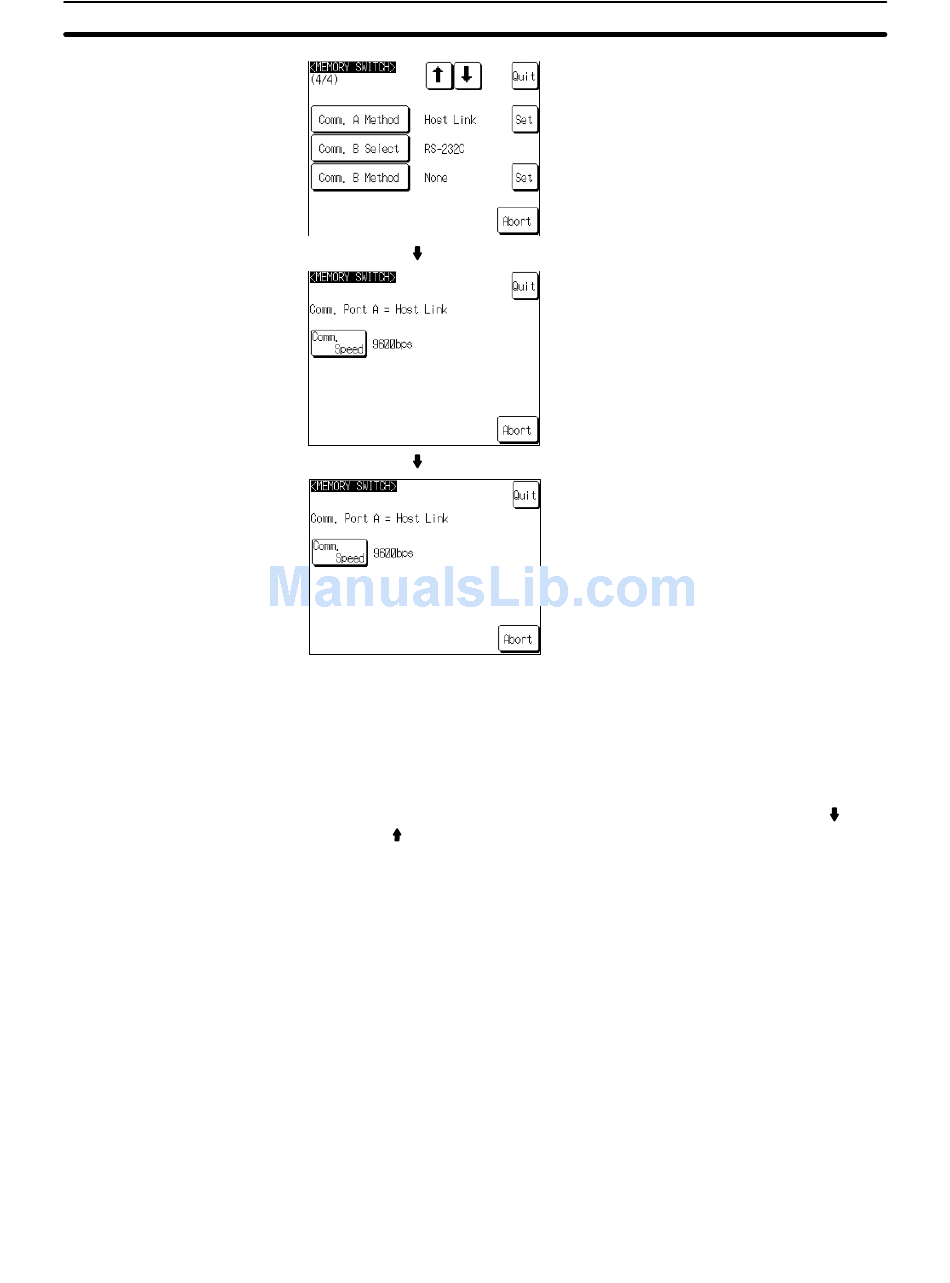

Press the Set touch switch to the right of the
port at which the setting has been made.
In this example, serial port A is used.
Press the Comm. Speed touch switch to dis-
play the communications speed to be set.
The setting option changes each time the
touch switch is pressed.
In this example, serial port A is used.
Press Quit.
The communications speed is set.
