System Maintenance
Checking
Communication with the
Support Tool
216

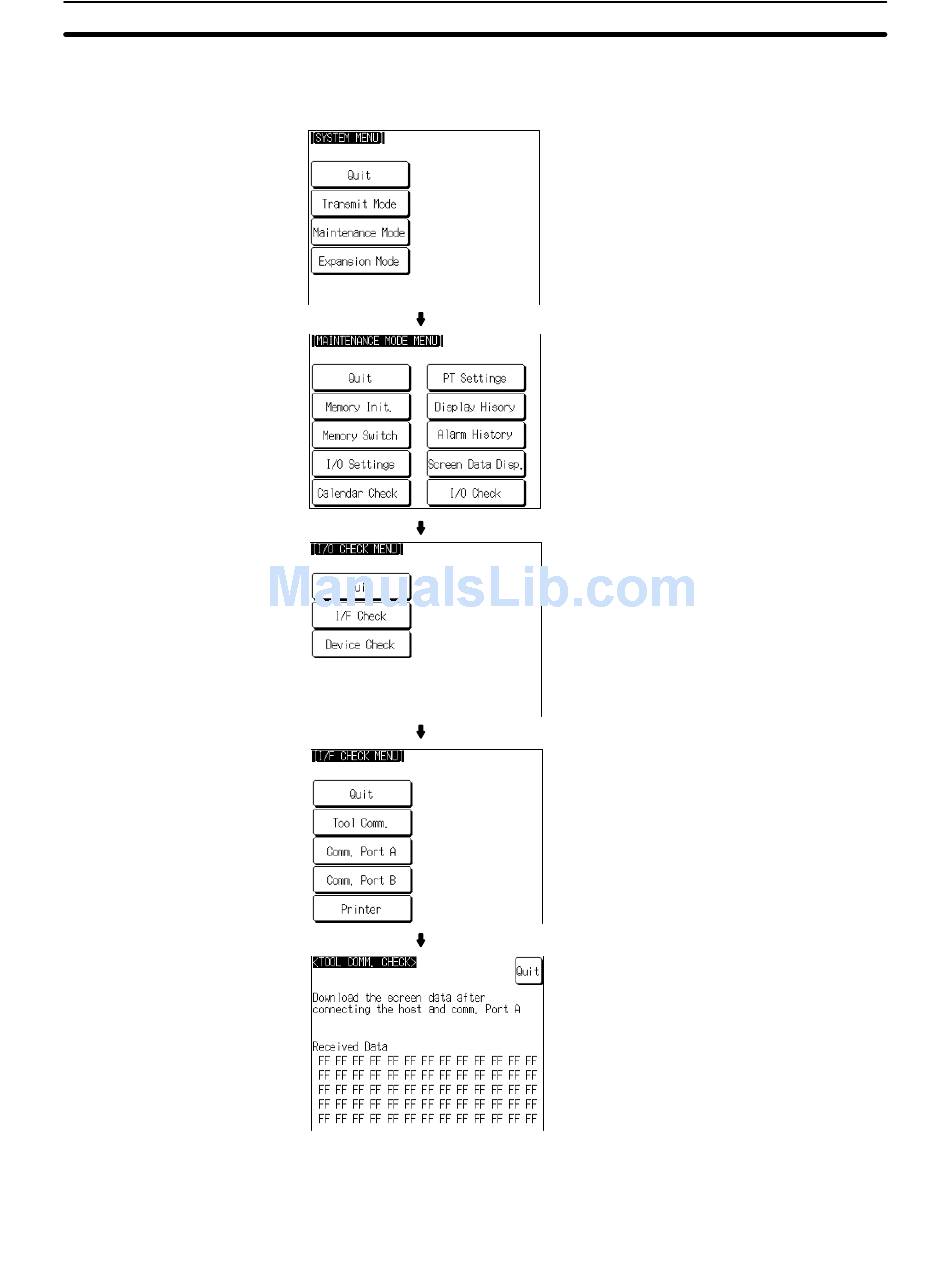

Check communication with the Support Tool by following the menu operation
from the System Menu shown below.
Ver 3.10
• If communication with the Support Tool is normal, data transmitted from the
Support Tool is displayed as hexadecimal data when received by the
NT31/NT31C.
Select Maintenance Mode.
Select I/O Check.
Select I/F Check.
Select Tool Comm..
The check on communication with the Sup-
port Tool starts.
Section
6-11
