Setting The Nt Link (1:1) Method - Omron Programmable Terminals NT31 NT31C Setup Manual

Setting Conditions for Communications with Host by Using Memory Switches

6-7-3 Setting the NT Link (1:1) Method

162

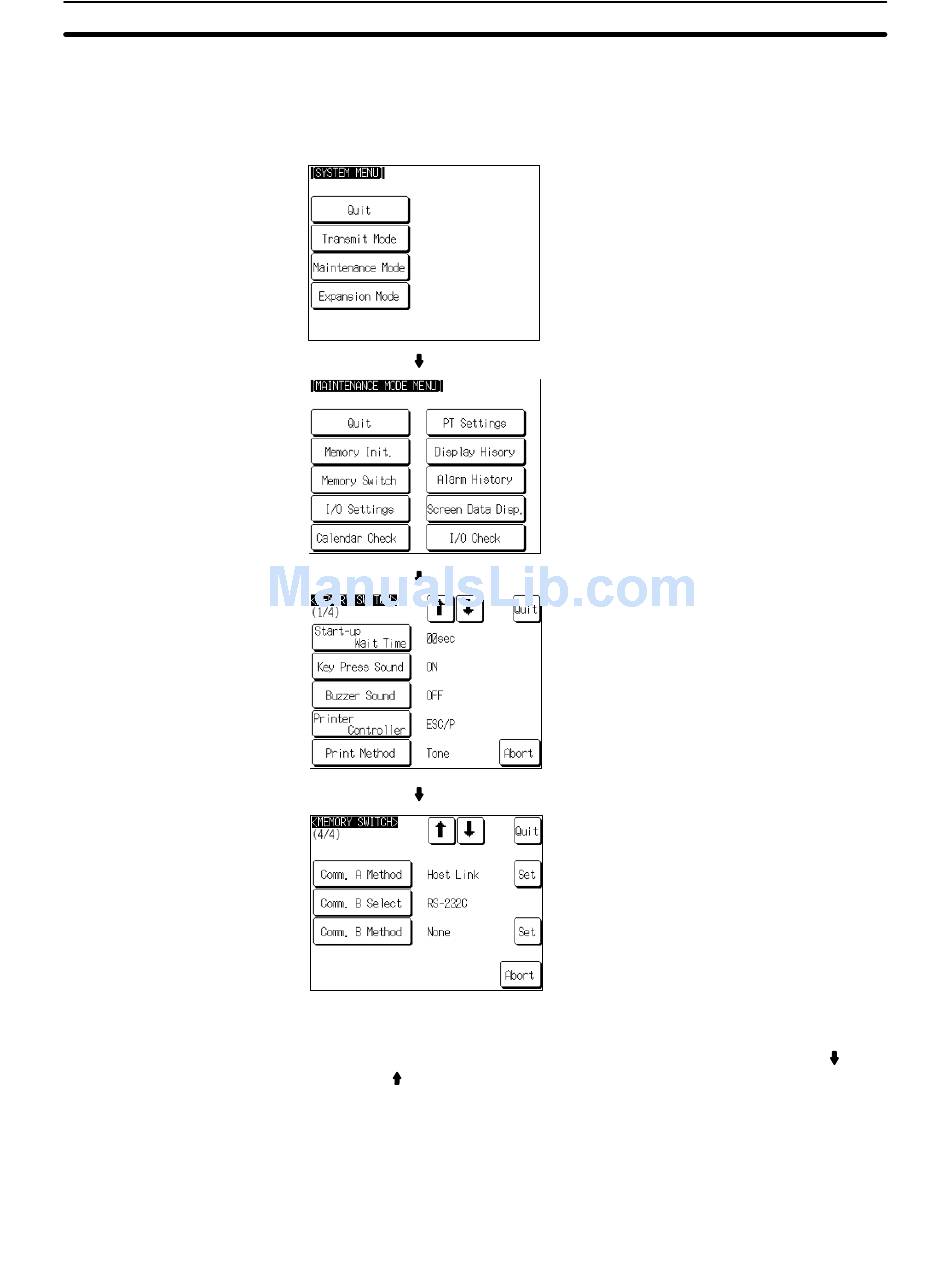

Set the communication conditions for the NT link (1:1) method at serial port A or
serial port B by following the operation from the System Menu shown below.
Ver 3.10
The setting option changes each time the touch switch is pressed.
To set other memory switches, select the relevant screen using the [ ] (next
screen) or [ ] (previous screen) touch switch, then make the setting.
• To confirm the settings and quit the memory switch setting screen, press the
Quit touch switch. The settings made last will be set and the NT31/NT31C will
return to the MAINTENANCE MODE MENU screen.
• To quit the memory switch setting screen without confirming the settings, press
the Abort touch switch. The NT31/NT31C will return to the MAINTENANCE
MODE MENU screen with the previous settings still in effect.
Select Maintenance Mode.
Select Memory Switch.
Display the fourth memory switch screen by
pressing the [↓] (next screen) or [↑] (previous
screen) touch switch.
Press the touch switch corresponding to the
port at which the NT link (1:1) method is to be
set (Comm. A Method or Comm. B Method) to
display the setting option NT Link (1:1).
