Device Monitor Function

CS1G/CS1H

6-13-3 Method of Use

Reference: When an error screen is displayed, press the Check touch switch on the screen
CN111 or CS1W-CN114/118 Connecting Cable, a CPM1-CIF01 RS-232C
Adapter, or a CPM1-CIF11 RS-422A Adapter.
Refer to Section 4 Connecting to the Host from the RS-232C Port or Section 5
Connecting to the Host from the RS-422A/485 Port for details on connecting to
the PC.
The 1:N NT Link (standard or high-speed) can be used. The connection method
is exactly the same as for the 1:N NT Link.
Refer to Section 4 Connecting to the Host from the RS-232C Port or Section 5
Connecting to the Host from the RS-422A/485 Port for details on connecting to
the PC.

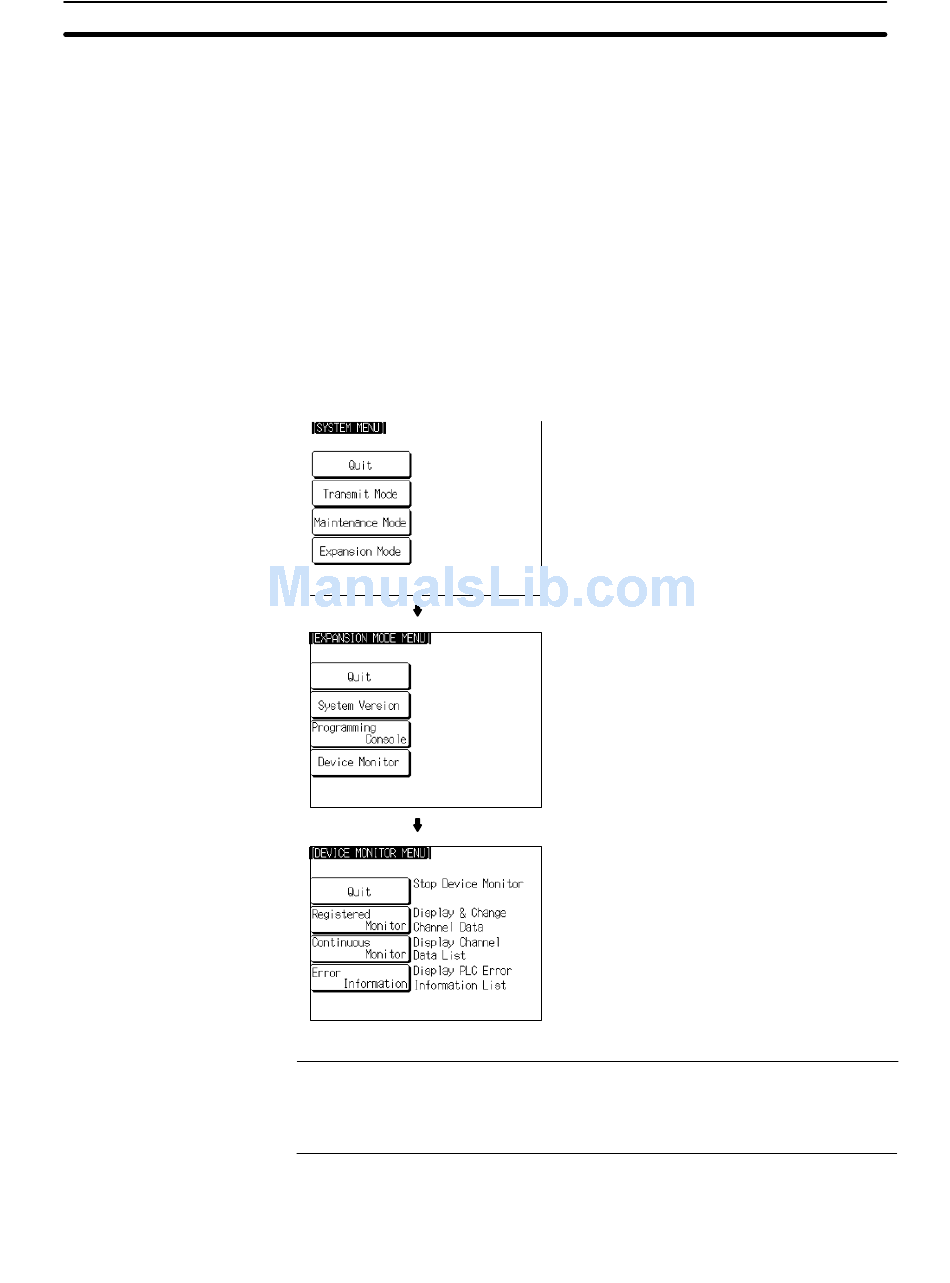

The Device Monitor screen is displayed by operating the system menu as de-
scribed below.
to return to the system menu. In addition, pressing two of the four corners of the
touch panel simultaneously in the error screen enables the display of the system
menu.
For more details on operations of the Device Monitor function, refer to 2-16 De-
vice Monitor Function in the Reference Manual.
Ver 3.10
Select Expansion Mode.
Select Device Monitor.
An error message will be displayed
if the wrong communications proto-
col is selected.
The Device Monitor screen is displayed.
Section 6-13
229
