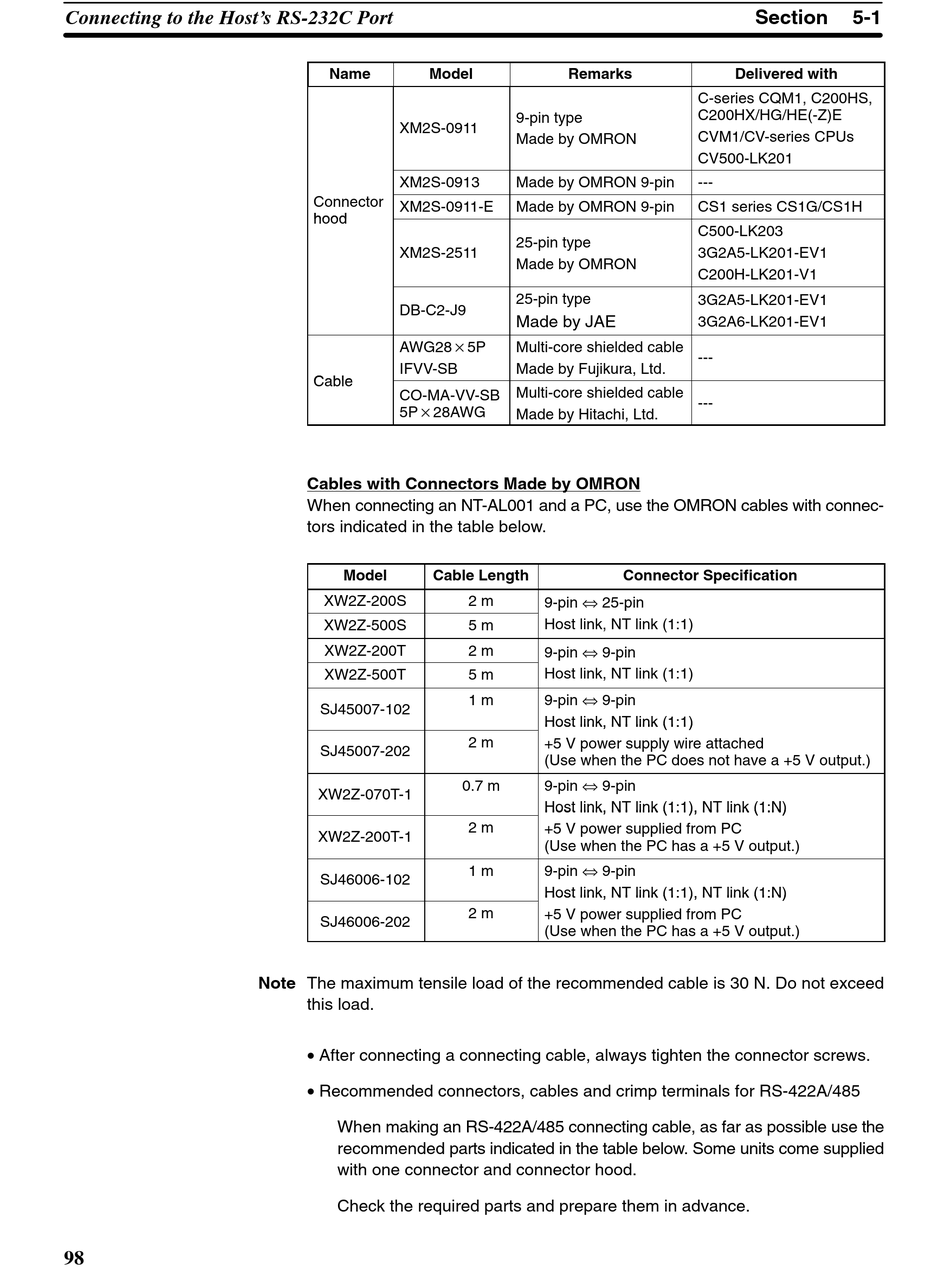

Connecting to the Host's RS-232C Port
98
Name Model
XM2S-0911
XM2S-0913
Connector
XM2S-0911-E
hood hood
XM2S-2511
DB-C2-J9
AWG28 5P
IFVV-SB
Cable Cable
CO-MA-VV-SB
5P 28AWG
Cables with Connectors Made by OMRON
When connecting an NT-AL001 and a PC, use the OMRON cables with connec-
tors indicated in the table below.
Model Cable Length
XW2Z-200S
XW2Z-500S
XW2Z-200T
XW2Z-500T
SJ45007-102
SJ45007-202
XW2Z-070T-1
XW2Z-200T-1
SJ46006-102
SJ46006-202
Note The maximum tensile load of the recommended cable is 30 N. Do not exceed
this load.
• After connecting a connecting cable, always tighten the connector screws.
• Recommended connectors, cables and crimp terminals for RS-422A/485
When making an RS-422A/485 connecting cable, as far as possible use the
recommended parts indicated in the table below. Some units come supplied
with one connector and connector hood.
Check the required parts and prepare them in advance.
Remarks
9-pin type
Made by OMRON
Made by OMRON 9-pin
Made by OMRON 9-pin
25-pin type
Made by OMRON
25-pin type
Made by JAE
Multi-core shielded cable
Made by Fujikura, Ltd.
Multi-core shielded cable
Made by Hitachi, Ltd.
Connector Specification
9-pin ⇔ 25-pin 9 pin ⇔ 25 pin
2 m
Host link, NT link (1:1)
5 m
9-pin ⇔ 9-pin 9 pin ⇔ 9 pin
2 m
Host link, NT link (1:1)
5 m
9-pin ⇔ 9-pin
1 m
Host link, NT link (1:1) Host link, NT link (1:1)
2 m
+5 V power supply wire attached
(Use when the PC does not have a +5 V output.)
9-pin ⇔ 9-pin
0.7 m
Host link, NT link (1:1), NT link (1:N)
Host link, NT link (1:1), NT link (1:N)
2 m
+5 V power supplied from PC
(Use when the PC has a +5 V output.)
9-pin ⇔ 9-pin
1 m
Host link, NT link (1:1), NT link (1:N) Host link, NT link (1:1), NT link (1:N)
2 m
+5 V power supplied from PC
(Use when the PC has a +5 V output.)
Section 5-1
Delivered with
C-series CQM1, C200HS,
C200HX/HG/HE(-Z)E
CVM1/CV-series CPUs
CV500-LK201
---
CS1 series CS1G/CS1H
C500-LK203
3G2A5-LK201-EV1
C200H-LK201-V1
3G2A5-LK201-EV1
3G2A6-LK201-EV1
---
---
