Lamps
Touch Switches
12
Library data are combinations of fixed display graphics registered as a single
graphic. They are registered in advance and as many as required can be dis-
played at any position on the screen.
Since it is generated by combining graphics, library data has a small data size.
Mark Image data Library data

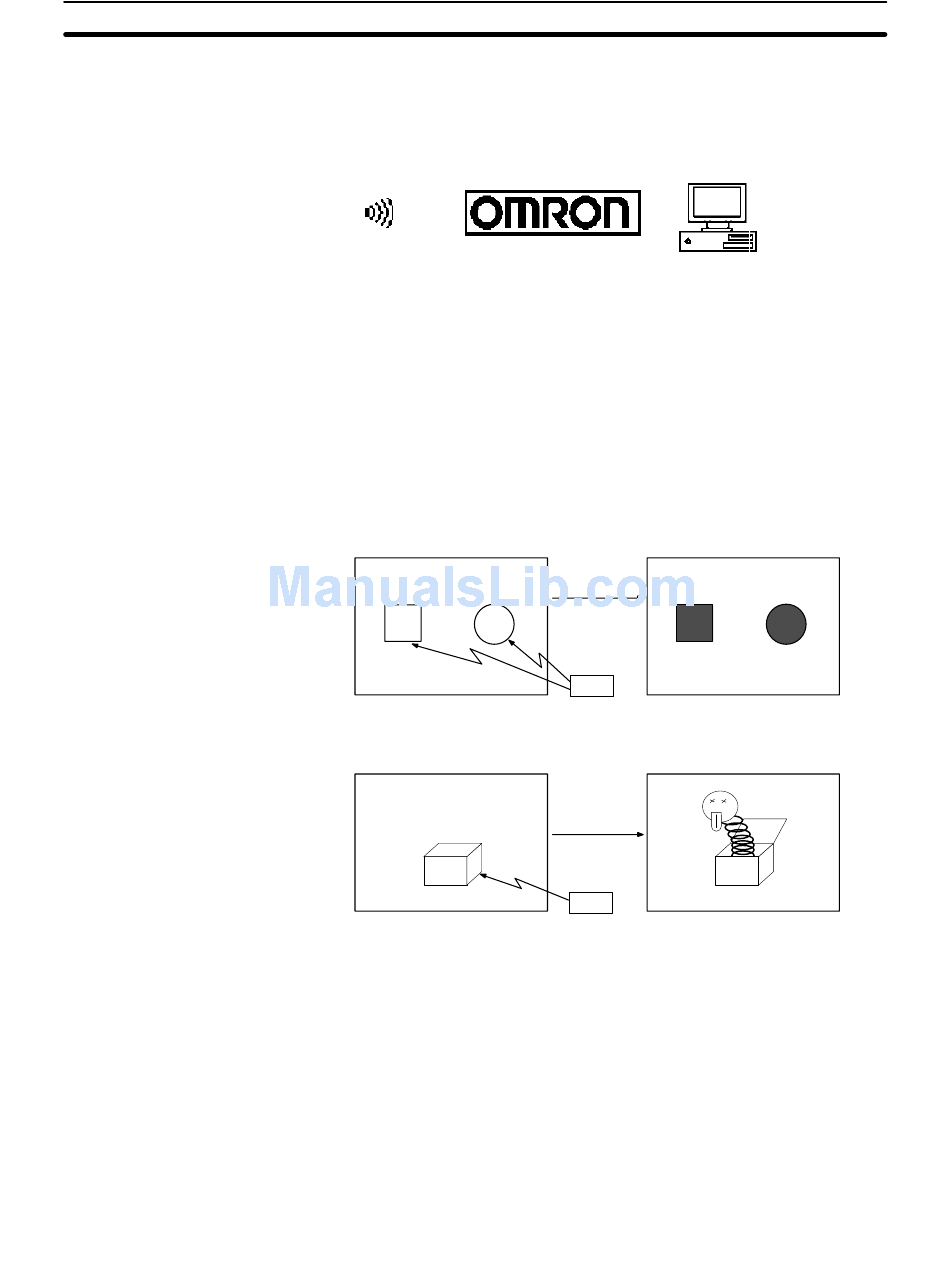

These are graphics whose display status changes in accordance with the states
of bits at the host. Squares, circles, sectors and polygons can be used for lamps
(normal (standard) lamps). In accordance with the status of the host bit, they can
be lit (displayed in reverse video) or flashed (repeated alternation between nor-
mal and reverse video display states).
Lamps can also display different image/library data for the ON and OFF states of
the host bit (such lamps are called image/library lamps).
There are four standard lamp labels: fixed display character strings, ON/OFF
switching character strings, numeral displays, and character string displays.
When fixed display character strings or ON/OFF switching character strings are
used, several lines of labels can be displayed.
Normal (Standard) Lamps
Unlit state
Image Library Lamps
Unlit state
These switches can be set at any location on the screen. Pressing a touch switch
on the screen where a touch switch has been set can have the following effects:
• Notification to a host bit (input notification function)
• Changing the displayed screen (screen switching function)
• Input of a numeric value or character string (input key function)
• Copying of a numeric value or character string (copy key function)
• Shifting to another numeric value or character string input field (cursor moving
key function)
• Obtaining a hard copy of the screen (screen print function)
• Opening / Closing a window
• Moving a window
ON
ON
Host
ON
Host
Section
Lit state
Lit state
