Installing The Aileron Linkages - Phoenix Model Mustang P51 Instruction Manual

Instruction Manual

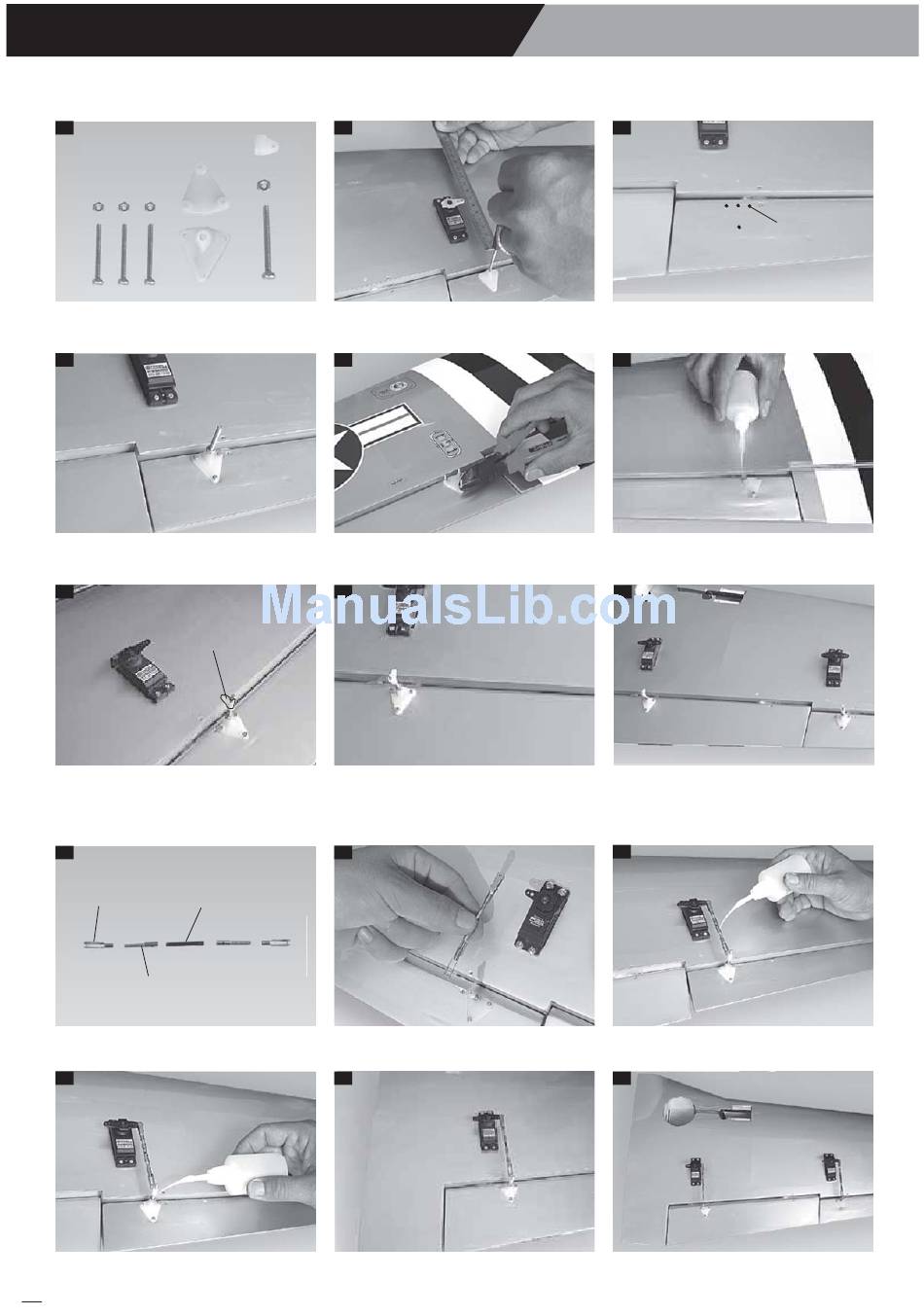

2. Installing the aileron control horn.
16
The aileron control horn.
19
Install the the control horn onto the
aileron.
22
Nylon clasp
Install the nylon control clasp.

3. Installing the aileron linkages.

25
Clevis
Carbon tube
Connector
The aileron linkage.
28
Secure the bolts and the nylon clasp by
C.A glue.
2
17
Mark four holes from the control horn
onto the bottom of the aileron.
20
Cut away the screw.
23
Make the same way to install the
second flap control horn.
26
Install the connector rod to the metal
clevis.
29
Make the same way to install the flap
linkage.
Mustang P51
18
Four holes
Drill four holes onto the aileron.
21
Secure the bolts by C.A glue.
24
Make the same way to install the
control horn for the second wing.
27
Glue the carbon rod using the C.A glue.
30
Make the same way for the second wing.
