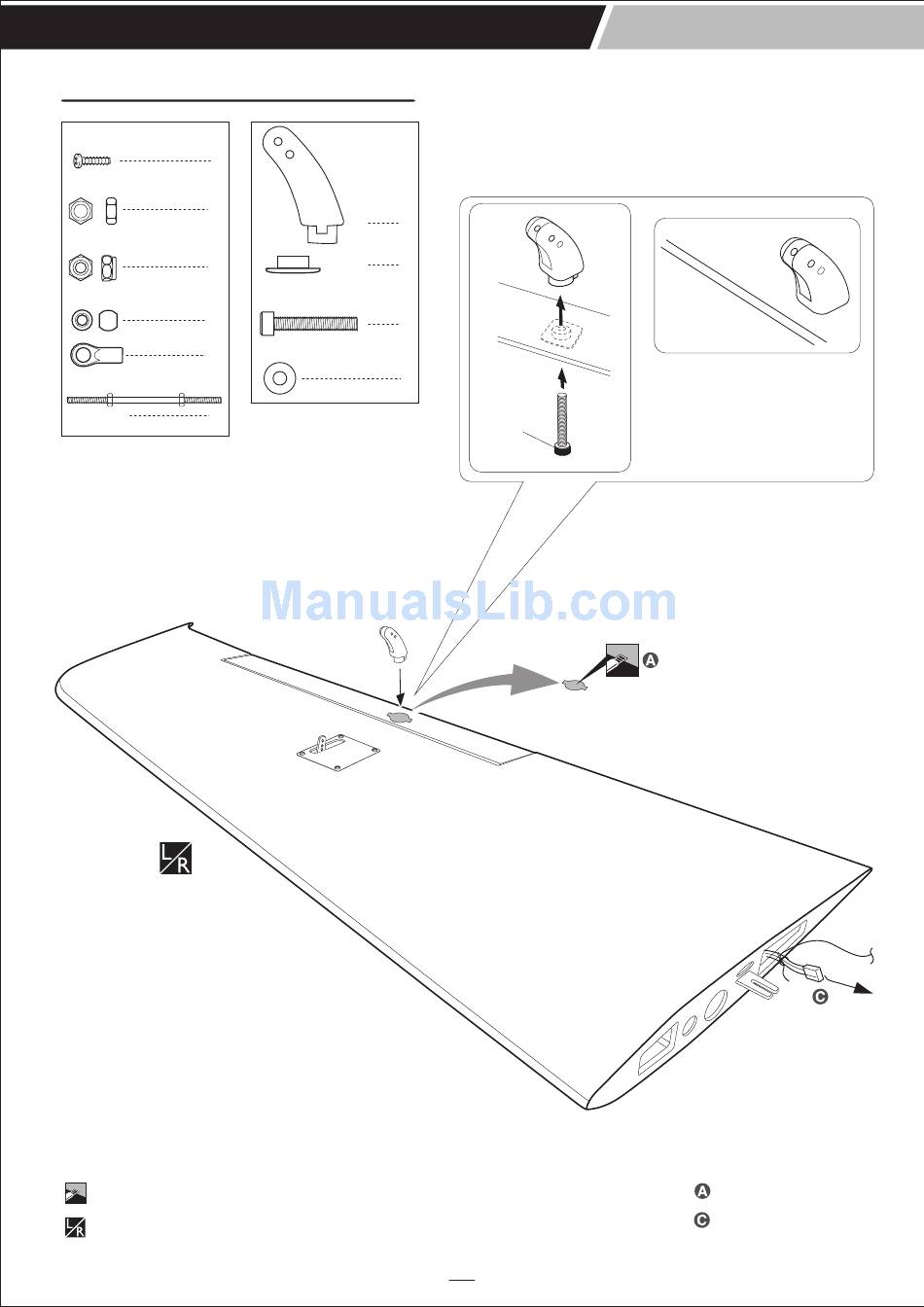

INSTALLING THE AILERONs LINKAGES
3 x 12mm Screw
4
3mm Nut
2
3mm Nylon Nut
2
Aluminum ball
4
4
3x100mm Push rod
2
Cut off shaded portion
Assemble left and right
sides the same way
2
2
3 x 20mm Cap Screw
2
3mm Washer
2
3 x 20mm
11
OUTRAGEOUS
Cut away film only. here
Pull out servo
cord with string.
