Joining The Wing Halves; Install The Landing Gear - Phoenix Model Mustang P51 Instruction Manual

Instruction Manual

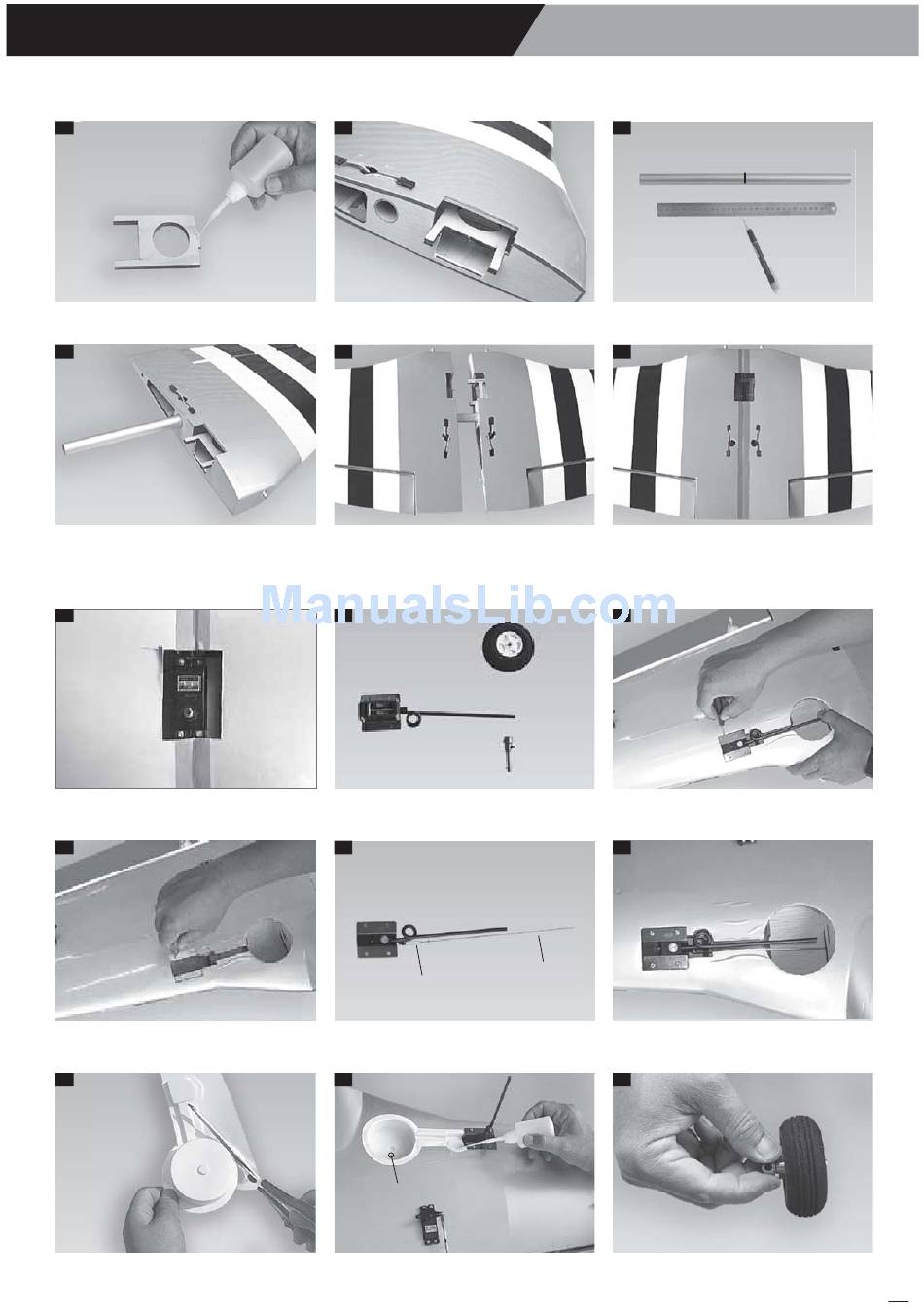

4. Joining the wing halves.

31
Glue the servo tray by C.A glue.
34
Glue the wing joiner to the wing by
epoxy glue.

5. Install the landing gear.

37
Install the gear servo into the sevo tray.
40
Take out the landing gear and drill four
holes into the block.
43
Prepare the plastic part.
32
Glue the servo tray into the wing.
35
Glue the wing by epoxy glue.
38
One set of the landing gear.
41
Clevis
Attach the metal rod to the landing
gear.
44
Drill a hole
Glue the plastic part by C.A glue and
make a hole.
Mustang P51
33
Draw a center line.
36
Apply the trim tape to the center
section of the wing where they join.
39
Insert the landing gear into the block
and mark four holes onto the block.
42
Metal rod
Install and secure the landing gear into
the block.
45
Install the wheel into the connector of
the gear.
Center line
3
