Phoenix Model Mustang P51 Instruction Manual page 7

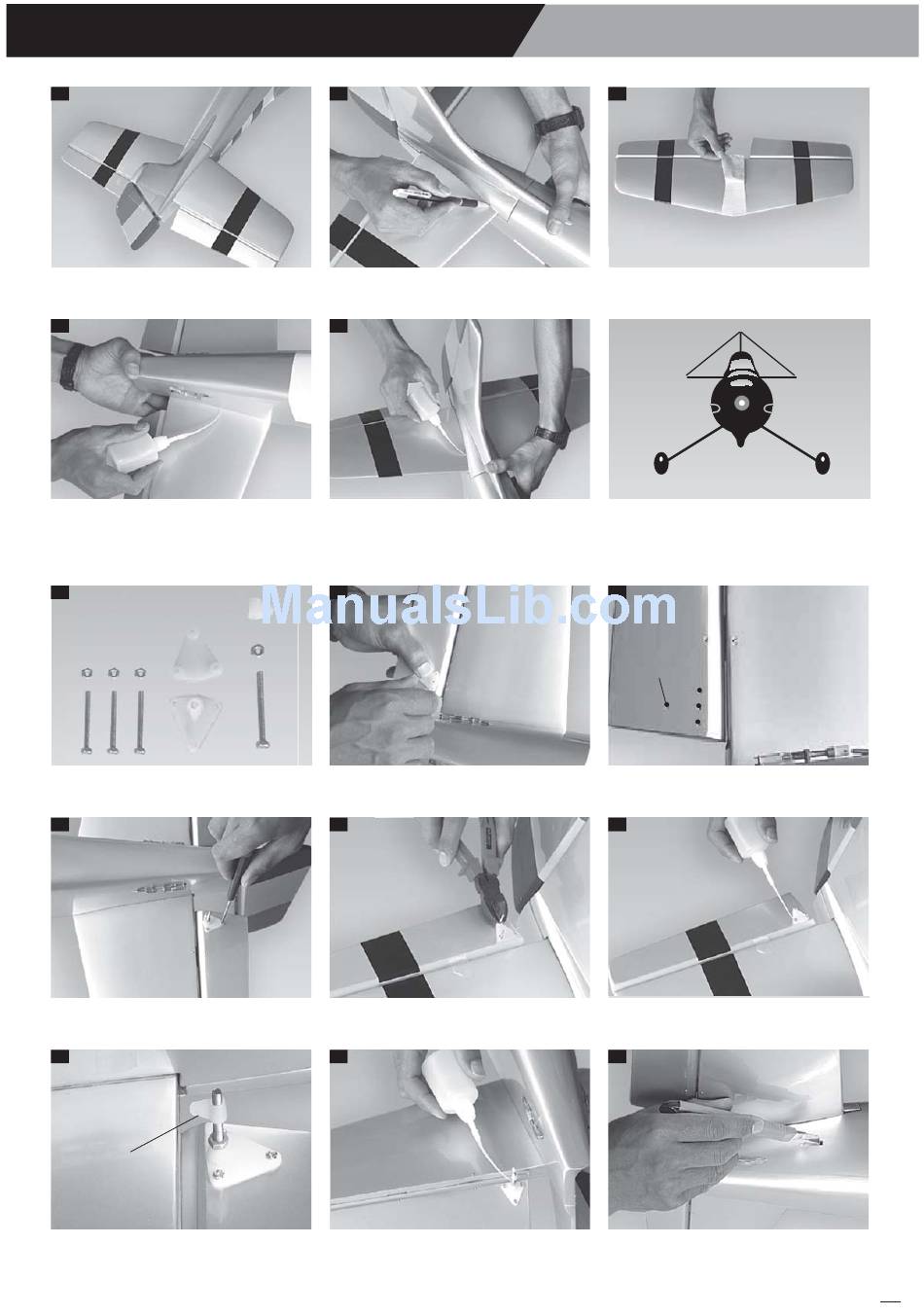

Instruction Manual
60
Attach the horizontal and the vertical to
the fuselage.
63
Glue the horizontal into the fuselage by
epoxy.
7. Installing the elevator and the rudder pushrod.
65
The control horn of the elevator.
68
Install the control horn onto the elevator.
71
Nylon clasp
Attach the nylon clasp.
61
Mark the shape of the vertical onto the
top of the horizontal.
64
Glue the vertical into the fuselage by
epoxy and also glue the hinge of rudder.
66
Place the control horn onto the bottom
of the elevator and mark 4 holes.
69
Cut away the screws if neccessary.
72
Secure the bolt and nylon clasp by C.A
glue.
Mustang P51
62
Remove the covering from the top of
the horizontal.
a1 a2
a1 = a2
67
Four holes
Drill four holes onto the elevator.
70
Secure the bolts by C.A glue.
73
Remove the covering.
5
