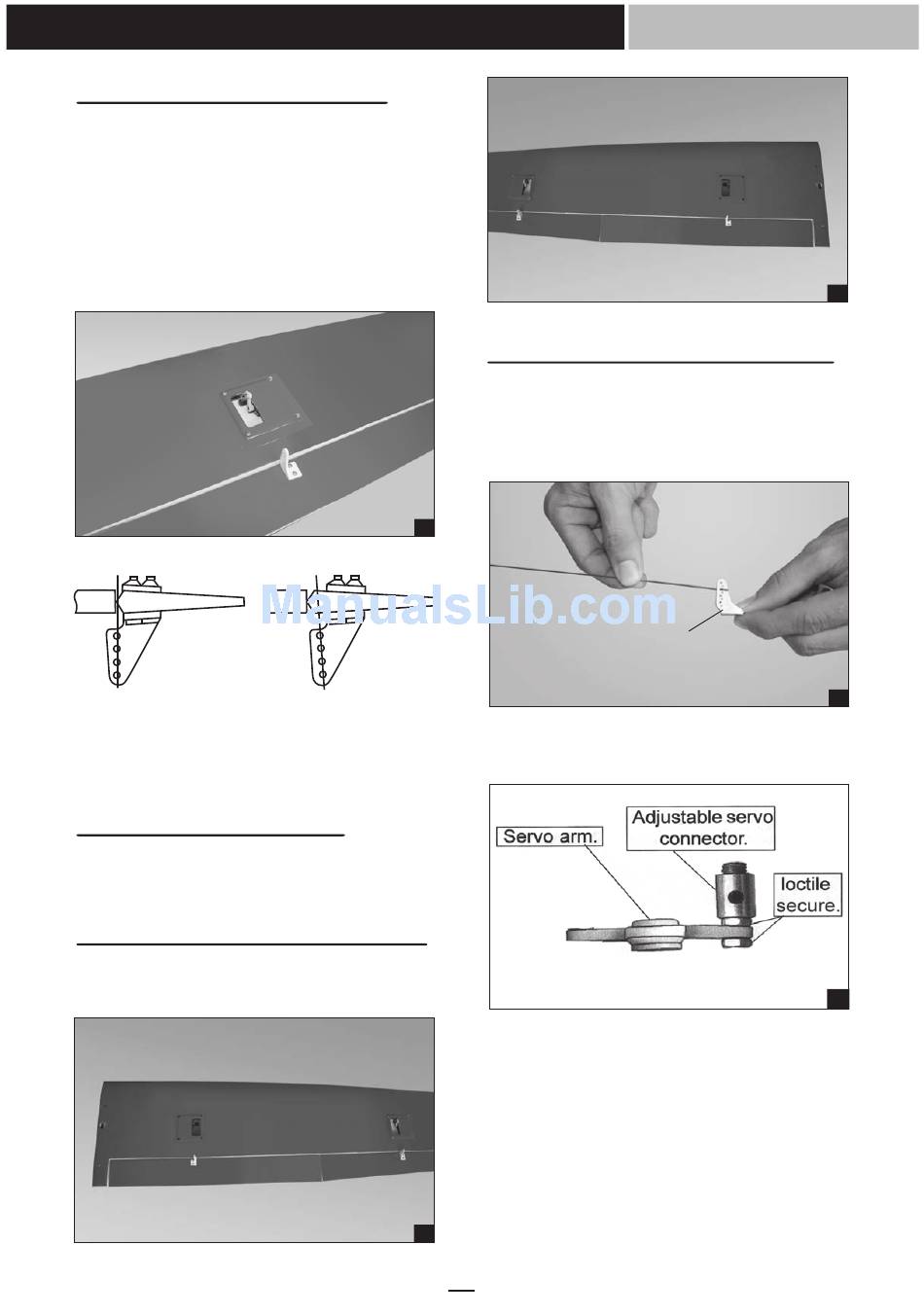

INSTALLING THE CONTROL HORNS

1. One aileron control horn in positioned on each
aileron. Using a ruler and a pen, locate and
mark the location of the control horn. It should
be mounted on the bottom side of the aileron at
the leading edge, in line with the aileron
pushrod.
2. Drill two 1.6mm holes through the aileron using
the control horn as a guide and screw the
control horn in place.
RIGHT
3. Repeat step # 1 - # 2 to install the control horn
on the opposite aileron.
INSTALLING the flap servo
- Repeat step #1 - #7 from installing the aileron
servo to install the flap servo.
INSTALLING the flap control horn
- Repeat step #1 - #3 from installing the control
horn aileron to install the control horn flap.
9
WRONG
10
3

INSTALLING THE AILERON LINKAGES

1. Locate the long piece of wire used for the
aileron pushrod. One end of the wire has been
pre-bend into a "Z " bend at factory. This "Z"
bend should be inserted into the control horn
for aileron.
Control horn
2. Install the metal connector to the servo arm of
the aileron servo.
3. Plug the aileron servo into the receiver and
center the servo. Install the servo arm onto the
servo.
4. Slide the aileron pushrod through the metal
connector.
5. Center the aileron and hold it in place using a
piece of masking tape.
6. With the aileron and the aileron servo center.
Secure the screw on the metal connector.
