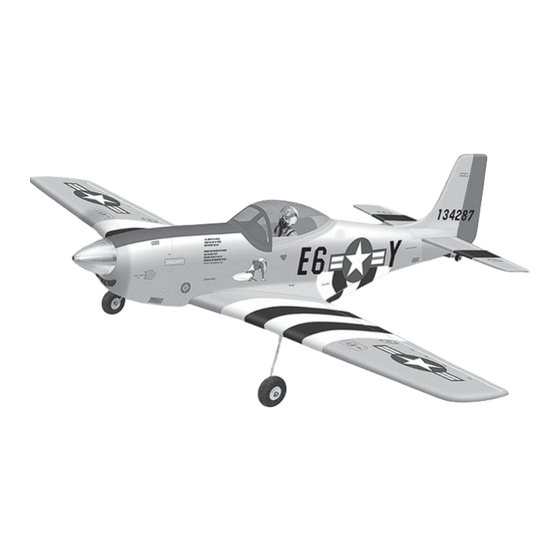

Phoenix Model MUSTANG P51 - EP Instruction Manual

Wingspan : 1370mm 53.9 inch, length : 1180mm 46.46 inch, weight : 2200gr - 2600gr, engine : axi motor 2826 or 4120, radio : 4 channel/4 servos standard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual

MUSTANG P51 - EP
Wingspan : 1370mm (53.9 inch)
Length
g
Weight
Engine
Radio
: 1180mm (46.46 inch)
: 2200gr - 2600gr
: AXI motor 2826 or 4120
: 4 channel / 4 servos standard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUSTANG P51 - EP and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix Model MUSTANG P51 - EP

Summary of Contents for Phoenix Model MUSTANG P51 - EP

  • Page 1: Instruction Manual

    Instruction Manual MUSTANG P51 - EP Wingspan : 1370mm (53.9 inch) Length : 1180mm (46.46 inch) Weight : 2200gr - 2600gr Engine : AXI motor 2826 or 4120 Radio : 4 channel / 4 servos standard...

  • Page 2: Kit Contents

    KIT CONTENTS: We have organized the parts as they come out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly KIT CONTENTS AIR FRAME ASSEMBLIES elevator control system...

  • Page 3: Installing The Aileron Servos

    Installing the aileron servos. Installing the aileron servos. Remove the covering from the top of the wing. Remove the covering from the aileron servo box (at the bottom of the wing). Prepare the aileron servo. Using the collar and prepare the thread as a guide. Insert the thread into the wing.
  • Page 4 Install the aileron servo. Installing the aileron control horn and linkages. Installing the aileron control horn and linkages. The aileron control horn and linkages. Mark the holes from the control horn onto the bottom of the aileron. Secure the control horn onto the aileron. Install the clevis to the aileron pushrod.

  • Page 5: Installing The Landing Gear

    Cut away the aileron pushrod. Bend "L" the aileron pushrod. Nylon clasp Attach the nylon clasp to the aileron servo arm. Installing the landing gear. Installing the landing gear. Collar Gear The landing gear. Install the collar. Install the wheel. Remove the covering from the bottom of the wing.

  • Page 6: Joining The Wing Halves

    Install the landing gear. Secure the landing gear. Joining the wing halves. Joining the wing halves. Center line Draw a center line. Remove the covering from the rear of the wing. Glue the wing joiner to the wing, using the epoxy glue. Apply the epoxy into the wing section.
  • Page 7 Installing the horizontal stabilizer and vertical stabilizer. Installing the horizontal stabilizer and vertical stabilizer. Center line Make a center line onto the horizontal. Remove the covering from the fuselage. Cut away the covering from the slot of the fuselage. Attach the horizontal to the fuselage and check it. Check the horizontal and the wing as shows.

  • Page 8: Installing The Elevator Pushrod

    The hinge Insert the hinge into the slot. Mark the shape of the vertical onto the top of the horizontal. Remove the covering from the top of the horizontal. Glue the horizontal into the fuselage by epoxy. a1 = a2 Glue the vertical into the fuselage by epoxy and also glue the Check the vertical before it dry.
  • Page 9 Cut away the screws if neccessary. Remove the covering from the slot. Silicon tube Clevis Install the clevis to the aileron pushrod. Insert the silicon tube into the clevis. Clevis Control horn Insert the elevator pushrod into the fuselage. Attach the clevis to the control horn. Make the same way for the second elevator.

  • Page 10: Installing The Rudder Pushrod

    Installing the rudder pushrod. Installing the rudder pushrod. Secure the control horn. Cut away the screw if neccessary. Remove the covering from the slot. Insert the rudder pushrod into the fuselage. Attach the clevis to the control horn. Finishing. Installing the tail gear. Installing the tail gear.
  • Page 11 Install the two nylon clasp onto the bottom of the rudder. Glue the two nylon clasp by C.A glue. Collar Install the wheel and the collar into the tail gear. Install the tail gear into the fuselage and secure it. Installing the servo of the elevator and the rudder.

  • Page 12: Installing The Engine

    Install the rudder servo and secure it. Cut away the rudder pushrod. Bend "L" the rudder pushrod. Attach the nylon clasp. Finishing. Installing the engine Installing the engine The engine mount. Prepare the engine mount and glue it by epoxy.
  • Page 13 Install the engine mount into the fuselage. Glue the engine mount into the fuselage by epoxy. Install the motor and secure it. Install the battery. Installing the cowl and propeller. Installing the cowl and propeller. Install the cowl. Secure the cowl. Install the spinner.

  • Page 14: Installing The Belly Pan

    Installing the air scoop. Installing the air scoop. Mark the shape of the air scoop onto the wing. Remove the covering. Glue the air scoop. Mark the shape of the plastic onto the air scoop. Remove the covering. Glue the plastic air scoop. Installing the belly pan.

  • Page 15: Control Throws

    2. If one side of the wing fall, that side is heavier than the opposite. Add small amounts of lead weight to the bottom side of the lighter wing half's wing tip. Follow this procedure until the wing stays level when you lift the airplane.
