Instruction Manual
74

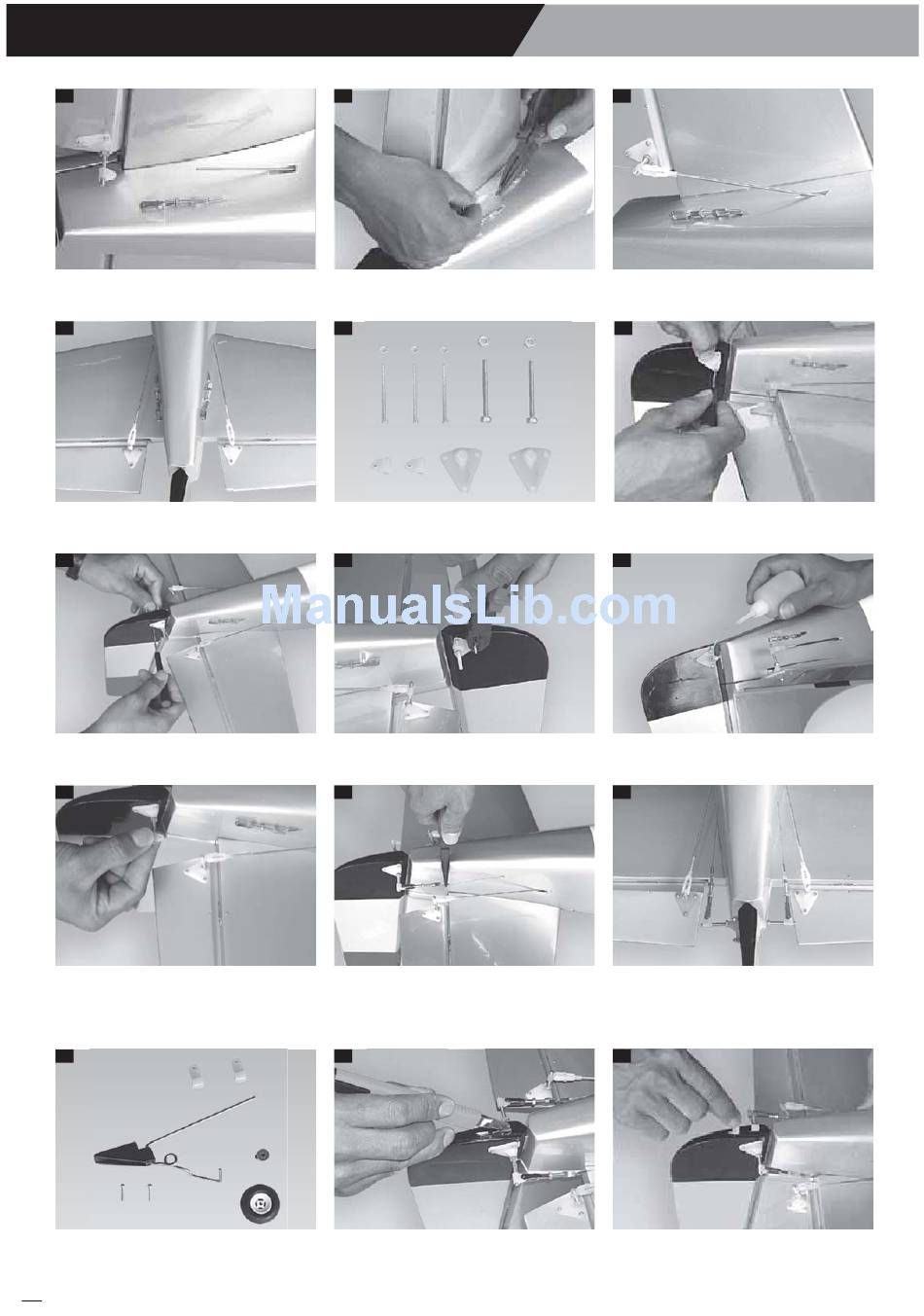

Push the elevator pushrod out of the exit. Install the metal clevis to the elevator
77
Make the same way for the second
elevator pushrod.
80
Install the nylon control horn onto the
rudder.
83
Install the clasp to the control horn.

8. Installing the tail gear.

86
The tail gear.
6
75
pushrod.
78
The control horn of the rudder.
81
Cut away the screws if neccessary.
84
Attach the metal clevis to the control
horn and lock the cable.
87
Cut away the wood from the bottom of
the rudder.
Mustang P51
76
Attach the metal clevis to the control
horn.
79
Place the cotrol horn onto the rudder
and drill four holes.
82
Secure the bolt and nylon clasp by C.A
glue.
85
Make the same way for the second cable.
88
Install the two nylon clasp onto the
rudder.
