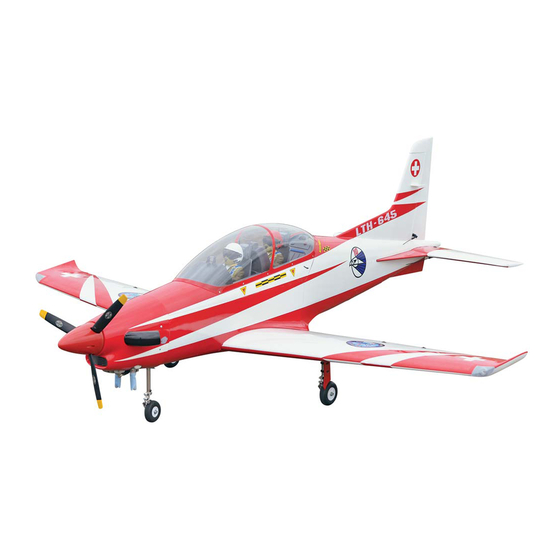

PC21 PILATUS MK2
SIZE .120 OR 30CC SCALE 1:5 ARF
SPECIFICATION
- Wingspan: 1772mm (69.72in)
- Length: 2019mm (79.5 in)
- Flying weight: 6.4 - 7.2 kg
- Wing area: 57.6 dm2
- Wing loading: 113g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Retract gear type: Air-retract With CNC
Suspension Metal Struts (included)
- Spinner size: 90mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 10 standard servo: 2 aileron;2 flap;
2 elevator; 1 rudder; 1 steering nose; 1 retract;
1 throttle (not included)
- Recommended receiver battery:
4,8-6.0V 2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 1.20/ 2-stroke or 1.40/4-stroke glow
engine or 20-30cc gas engine (not included)
Instruction Manual
- Motor: brushless outrunner 1600-2200 W,
450 KV (not included)
- Gravity CG: 166 mm (6.5 in) Back from the
leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 13mm up/down,
10% expo; High: 16mm up/down, 10% expo
- Control throw Elevators: Low: 13mm up/down,
12% expo; High: 16mm up/down, 12% expo
- Control throw Rudder: Low: 30mm right/left,
15% expo; High: 40mm right/left, 15% expo
- Control throw Flaps: Mid: 25mm down;
Landing: 35mm down
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE 1.20 (not included)
- Lipo cell: 5-6 cells / 5500 – 6000mAh (not included)
- Esc: 80A (not included)
GP
EP
version
version
