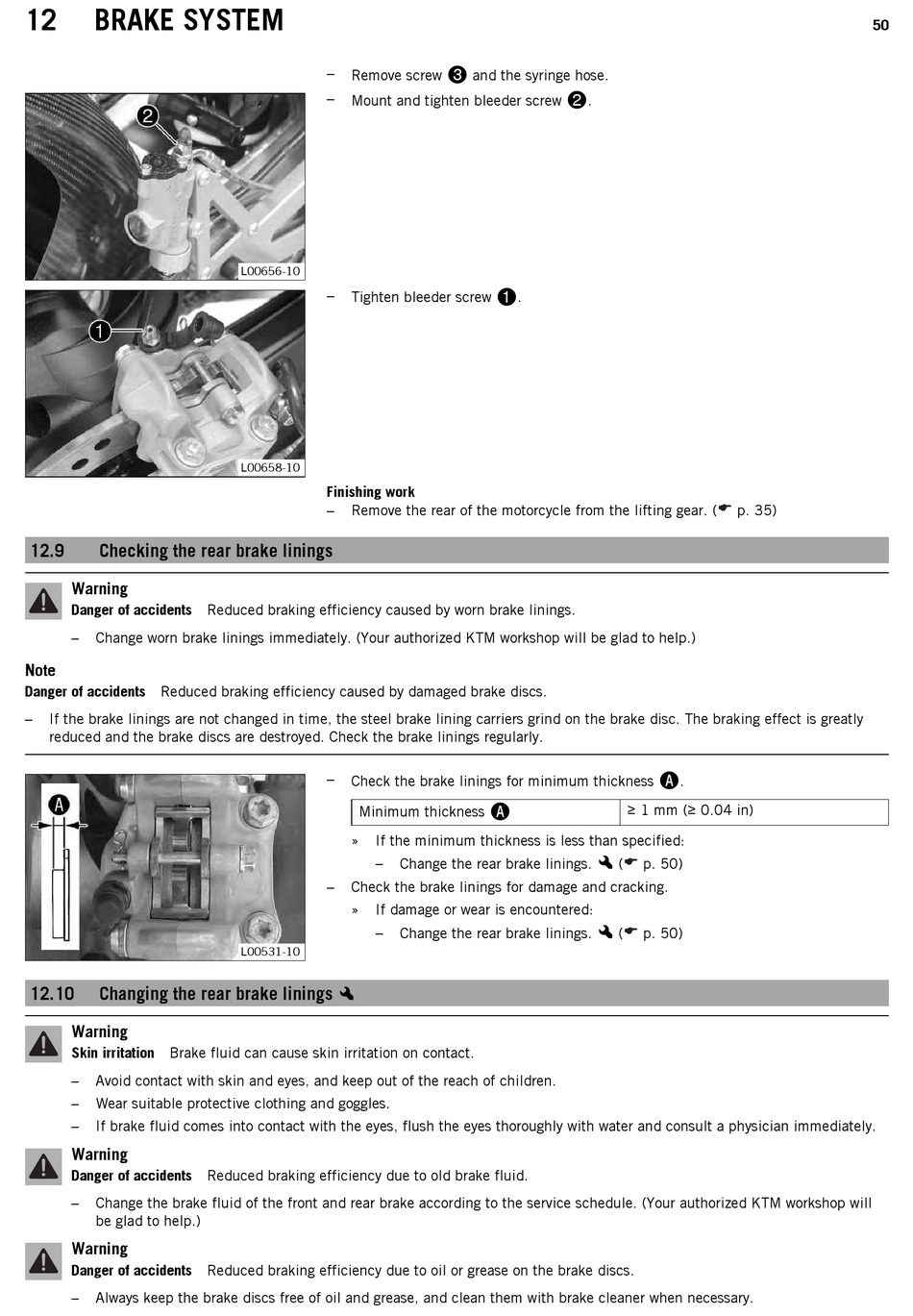

12 BRAKE SYSTEM
12.9

Checking the rear brake linings

Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
–
Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
Note
Danger of accidents Reduced braking efficiency caused by damaged brake discs.
–
If the brake linings are not changed in time, the steel brake lining carriers grind on the brake disc. The braking effect is greatly
reduced and the brake discs are destroyed. Check the brake linings regularly.
12.10

Changing the rear brake linings

Warning
Skin irritation Brake fluid can cause skin irritation on contact.
–
Avoid contact with skin and eyes, and keep out of the reach of children.
–
Wear suitable protective clothing and goggles.
–
If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
–
Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–
Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
–
Remove screw
–
Mount and tighten bleeder screw
L00656-10
–
Tighten bleeder screw
L00658-10
Finishing work
–
Remove the rear of the motorcycle from the lifting gear. (
–
Check the brake linings for minimum thickness
Minimum thickness
» If the minimum thickness is less than specified:
–
Change the rear brake linings.
–
Check the brake linings for damage and cracking.
» If damage or wear is encountered:
–
Change the rear brake linings.
L00531-10
x
3
and the syringe hose.
2
.
1
.
A
(
x
(
x
p. 35)
A .
≥ 1 mm (≥ 0.04 in)
p. 50)
p. 50)
50
