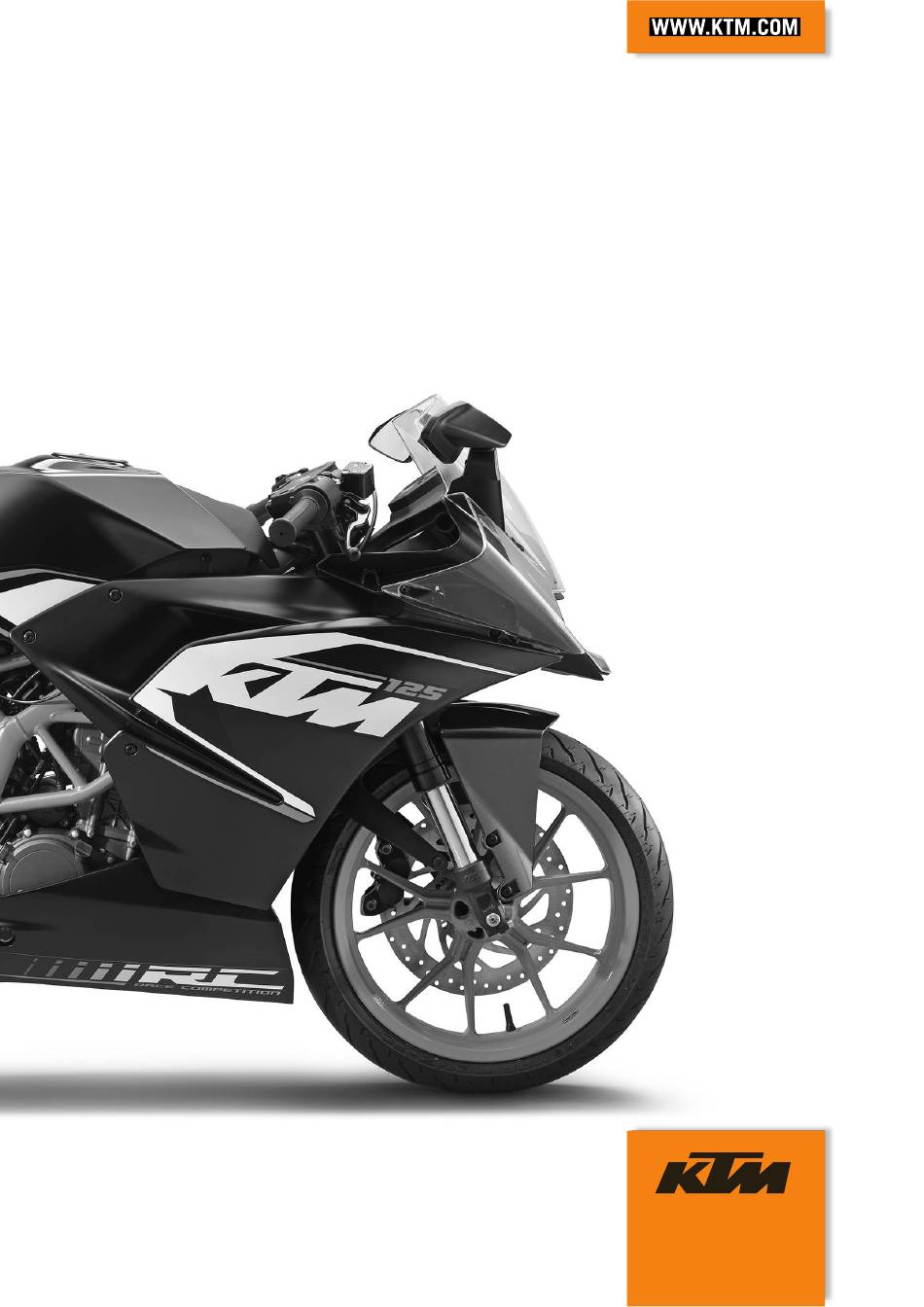

- Page 1 SETUP INSTRUCTIONS 2015 RC 125 EU RC 200 EU RC 200 ASIA RC 200 MY RC 200 2016 CO Art. no. 3213320en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, misprints, and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 SETUP Unpacking and setting up the vehicle – Remove straps and box. S00827-01 – Remove the adhesive tape in the upper area of the motorcycle. S00828-01 – Roll down the film at the sides. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished.
- Page 6 Install the battery. ( p. 8) – Refuel. ( p. 9) – Print out the current PDI form found on the KTM Dealer.net and perform the pre- delivery inspection. – Set kilometers or miles. ( p. 10) – Set the clock. (...
- Page 7 WORK Removing the front rider's seat – Insert the ignition key in seat lock and turn it clockwise. – Raise the rear of the front rider's seat, pull it toward the rear, and remove it upward. – Remove the ignition key from the seat lock. L02118-10 Mounting the front rider's seat –...
- Page 8 WORK – Check that the passenger seat is correctly mounted. Finishing work – Mount the front rider's seat. ( p. 5) Removing the battery cover Preparatory work – Remove the front rider's seat. ( p. 5) Main work – Pull loop toward the rear.
-
Page 9: Recharging The Battery
– Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Info Even when there is no load on the battery, it still loses power steadily. - Page 10 WORK Main work – Connect the battery charger to the battery. Switch on the battery charger. Battery charger (58429074000) You can also use the battery charger to test rest potential and start potential of the battery, and to test the alternator. With this device, you cannot overcharge the bat- tery.
- Page 11 WORK 3.10 Opening the filler cap Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
- Page 12 WORK – Only refuel with clean fuel that meets the specified standards. Warning Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to get into the ground water, the ground, or the sewage system. –...
-
Page 13: Technical Data
TECHNICAL DATA Chassis tightening torques – Exhaust clamp 19 Nm (14 lbf ft) – Screw, chain guard EJOT PT ® K60x30 4 Nm (3 lbf ft) – Remaining nuts, chassis 3 Nm (2.2 lbf ft) – Remaining screws, chassis 4 Nm (3 lbf ft) –... - Page 14 TECHNICAL DATA – Screw, front mask structure on head- 6 Nm (4.4 lbf ft) light bracket – Screw, front seat fixing 6 Nm (4.4 lbf ft) – Screw, front spoiler 7 Nm (5.2 lbf ft) – Screw, front spoiler retaining bracket, 6 Nm (4.4 lbf ft) rear –...
- Page 15 TECHNICAL DATA – Fitting, shock absorber, bottom M10x1.25 50 Nm (36.9 lbf ft) Nut, rear sprocket screw M10x1.25 27 Nm (19.9 lbf ft) Loctite ® 243™ – Screw, front footrest bracket / engine M10x1.25 47 Nm (34.7 lbf ft) bearer Screw, side stand bracket M10x1.25 33 Nm (24.3 lbf ft)
- Page 16 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
- Page 17 *3213320en* 3213320en 04/2015 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
