Introducing the HP Switch 1600M

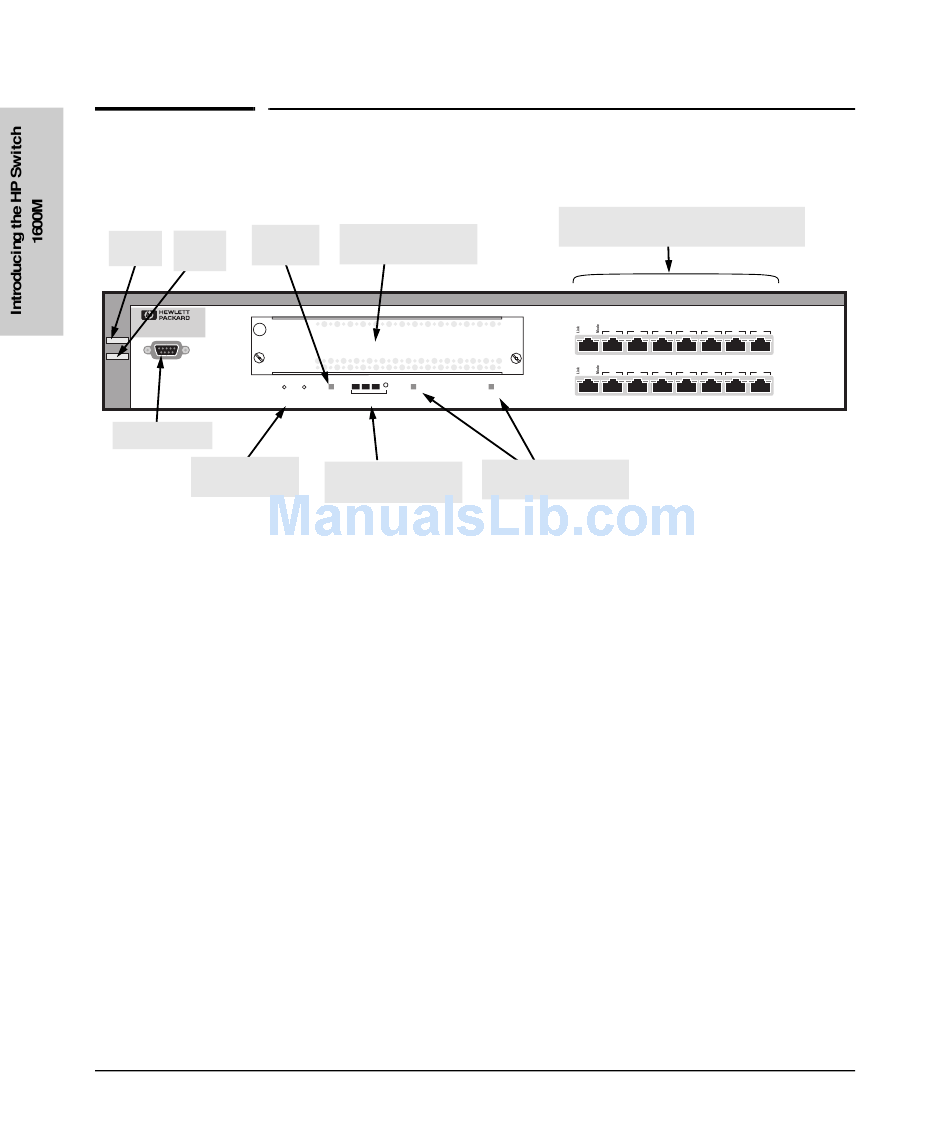

Front of the Switch

Front of the Switch
Self Test
Power Fault
LED
LED LED
A
Switch 1600
HP J4120A
Power
Fault Console

Console port

Reset and Clear
buttons
Console Port
This port is used to connect a console to the switch by using the serial cable
supplied with the switch. This connection is described under "Connecting a
Console to the Switch" in chapter 2, "Installing the Switch 1600M". The console
can be a PC running a VT-100 terminal emulator, or a VT-100 terminal.

Reset Button

This button is used to reset the switch while it is powered on. This action clears
any temporary error conditions that may have occurred, executes the switch
self test, and resets all network activity counters to zero. The counters are
displayed in the switch console interface, the switch web browser interface,
and through SNMP network management applications, such as HP TopTools
for Hubs & Switches.
1-2
Slot for
Switch Port Module
Act Fdx 100
Self Module
Reset Clear
Mode Select
Test Status
Mode Select button
and indicator LEDs
10/100Base-TX RJ-45 ports
with Link and Mode LEDs for each port
1X 2X 3X 4X
9X 10X 11X 12X
Fan
Status
Status LEDs for Switch
Port Module, and Fan
5X 6X 7X 8X
13X 14X 15X 16X
