PANEL DESCRIPTION

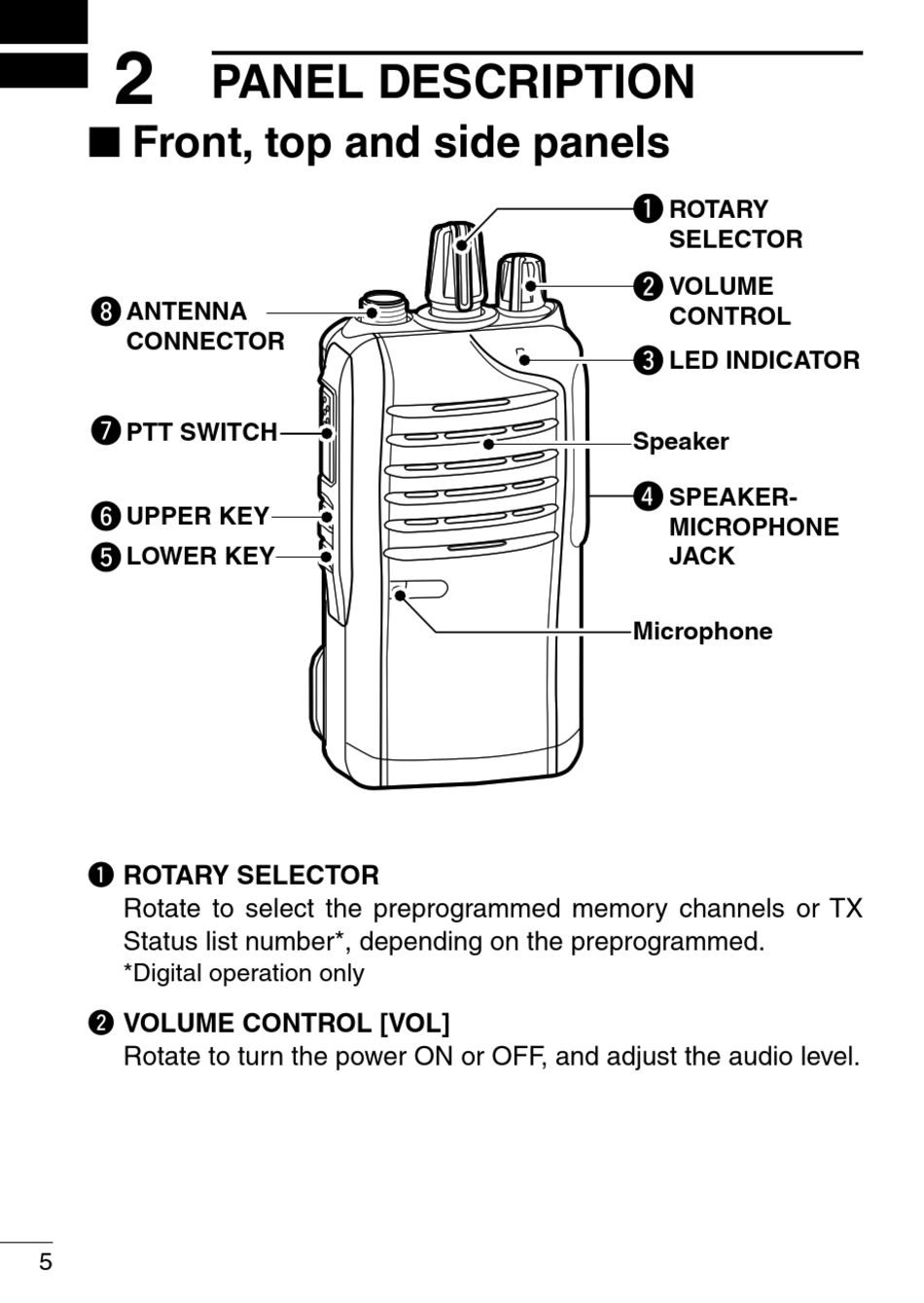

Front, top and side panels
■
i
ANTENNA
CONNECTOR
u
PTT SWITCH
y
UPPER KEY
LOWER KEY
t
q ROTARY SELECTOR
Rotate to select the preprogrammed memory channels or TX
Status list number*, depending on the preprogrammed.
*Digital operation only
w VOLUME CONTROL [VOL]
Rotate to turn the power ON or OFF, and adjust the audio level.
5
q
ROTARY
SELECTOR
w
VOLUME
CONTROL
e
LED INDICATOR
Speaker
r
SPEAKER-
MICROPHONE
JACK
Microphone
