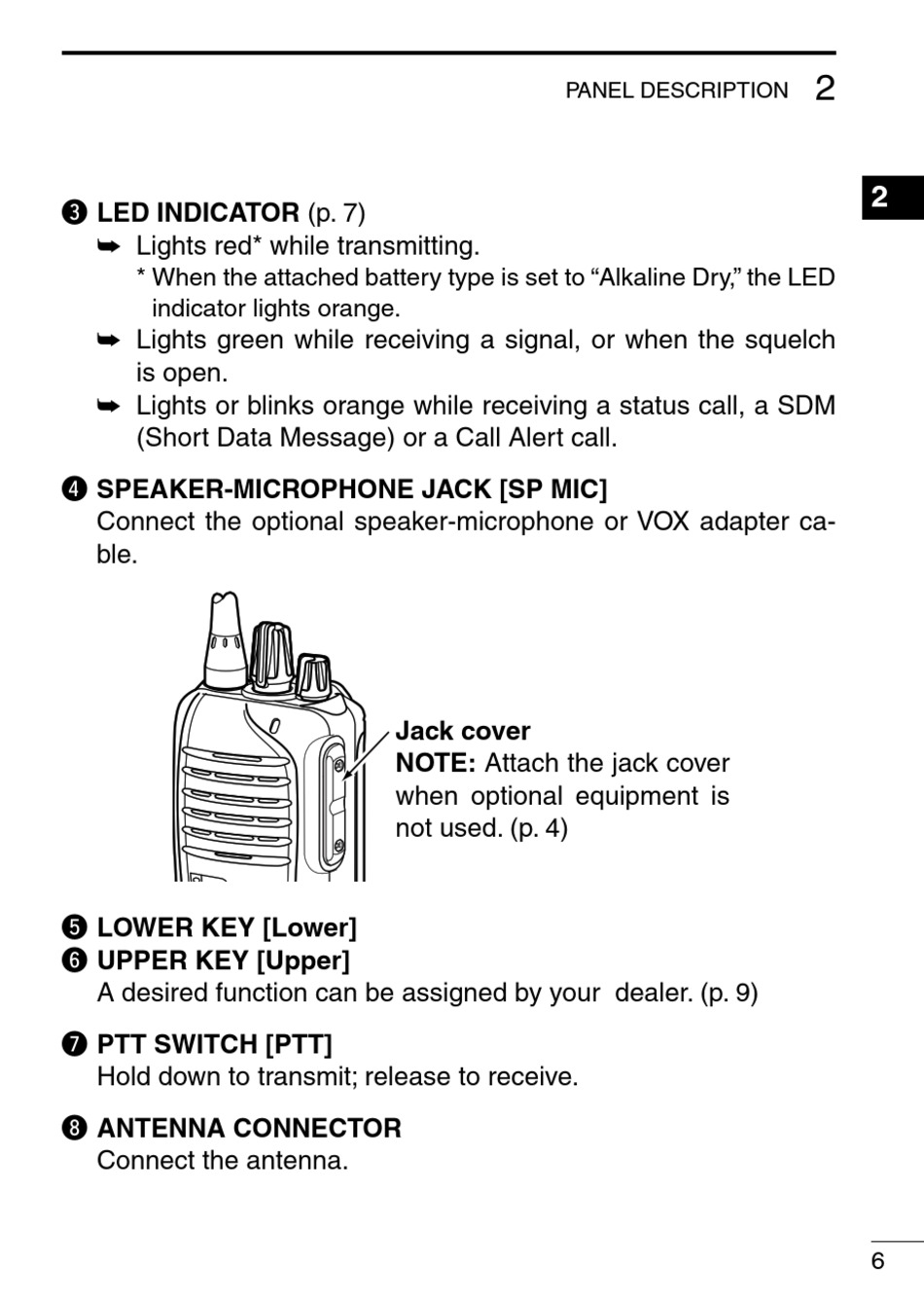

e LED INDICATOR (p. 7)
Lights red* while transmitting.
➥
* When the attached battery type is set to "Alkaline Dry," the LED
indicator lights orange.
Lights green while receiving a signal, or when the squelch
➥
is open.
Lights or blinks orange while receiving a status call, a SDM
➥
(Short Data Message) or a Call Alert call.
r SPEAKER-MICROPHONE JACK [SP MIC]
Connect the optional speaker-microphone or VOX adapter ca-
ble.
t LOWER KEY [Lower]
y UPPER KEY [Upper]
A desired function can be assigned by your dealer. (p. 9)
u PTT SWITCH [PTT]
Hold down to transmit; release to receive.
i ANTENNA CONNECTOR
Connect the antenna.
PANEL DESCRIPTION
Jack cover
NOTE: Attach the jack cover
when optional equipment is
not used. (p. 4)
