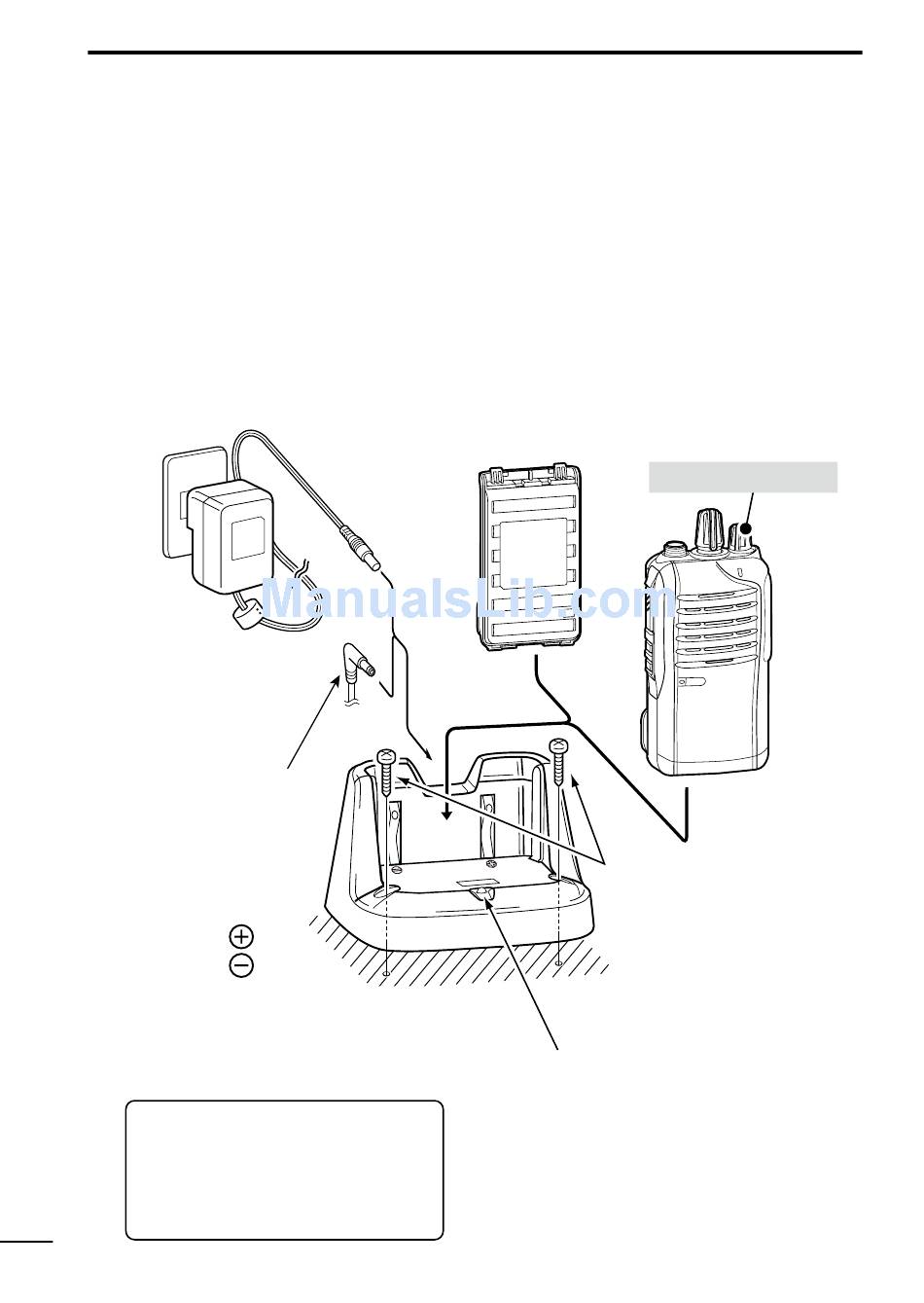

BATTERY CHARGING
D Using the BC-192 to regular charge the BP-264
The BC-192 provides regular charging of the Ni-MH battery pack
(BP-264 only). Never use it for any other battery pack.
Charging time (with BC-147S): Approximately 16 hours
The following item is additionally required:
• An AC adapter (not supplied with some versions) or the DC power
cable (OPC-515L).
AC adapter
(A different type,
or no AC adapt-
er is supplied,
depending
the version.)
Optional OPC-515L*
(for power source)
can be used instead
of the AC adapter.
*
Cable polarity
White line:
Black line :
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity.
This will ruin the battery charger.
Charging time period differs
depending on the input voltage.
12 V:
13.8 V:
16 V:
27
on
Approx. 36 hours
Approx. 21 hours
Approx. 16 hours
(for the BP-264)
Battery pack
Screws*
( Self
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
Status indicator
Lights green while charging.
NOTE:
The status indicator will not go
out even after a battery pack is
fully charged.
Transceiver
Turn power OFF
tapping screw:
